Description

Price

1

RUBBER A, BEARING

11371-MKC-A20

$9.59

2

LIFTER, MAIN DAMPER

23112-MKC-A20

$44.66

3

CAM, MAIN DAMPER

23113-MKC-A20

$43.54

4

SPRING, MAIN DAMPER

23114-MKC-A20

$11.70

5

MAINSHAFT (20T)

23211-MKC-A20

$217.67

6

PLATE A, BEARING SETTING

23212-MKC-A00

$15.05

7

PLATE B, BEARING SETTING

23213-MKC-A00

$20.36

8

MAINSHAFT (OUTER) (23T)

23231-MKC-A20

$245.38

9

COLLAR, CLUTCH (OUTER)

23235-MKC-A00

$41.43

10

GEAR, MAINSHAFT SECOND (24T)

23431-MKC-A20

$118.23

11

GEAR, MAINSHAFT THIRD (28T)

23451-MKC-A20

$110.41

12

GEAR, MAINSHAFT FOURTH (39T)

23471-MKC-A20

$133.52

13

GEAR, MAINSHAFT FIFTH (42T)

23491-MKC-A20

$125.18

14

COLLAR (32X35X13.5)

23492-HL4-000

$16.52

15

COLLAR, SPLINE (32X35X14)

23492-MKC-A20

$18.52

16

GEAR, MAINSHAFT TOP (46T)

23531-MKC-A00

$130.77

17

NUT, LOCK (25MM)

90231-MCH-000

$6.78

18

WASHER (42.2X81X1)

90410-MKC-A20

$8.02

19

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.44

20

WASHER (25X40X2) | Use from Engine SN 5600948.

90451-MFP-JC0

$2.12

20

WASHER, THRUST (25X40X2) | Use up to Engine SN 5600947.

90451-VM0-000

$5.72

21

WASHER, SPLINE (32X17X1.667)

90452-MCA-000

$2.75

22

WASHER, SPLINE (32MM)

90466-MKC-A20

$6.23

23

WASHER, LOCK (32MM)

90469-MKC-A20

$4.26

24

CIRCLIP (32MM)

90604-MCA-780

$3.46

25

BEARING, RADIAL BALL (40X76X18)

91023-MKC-A01

$40.02

26

BEARING, RADIAL BALL (25X62X17) (EC)

91024-MKC-A01

$28.00

27

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

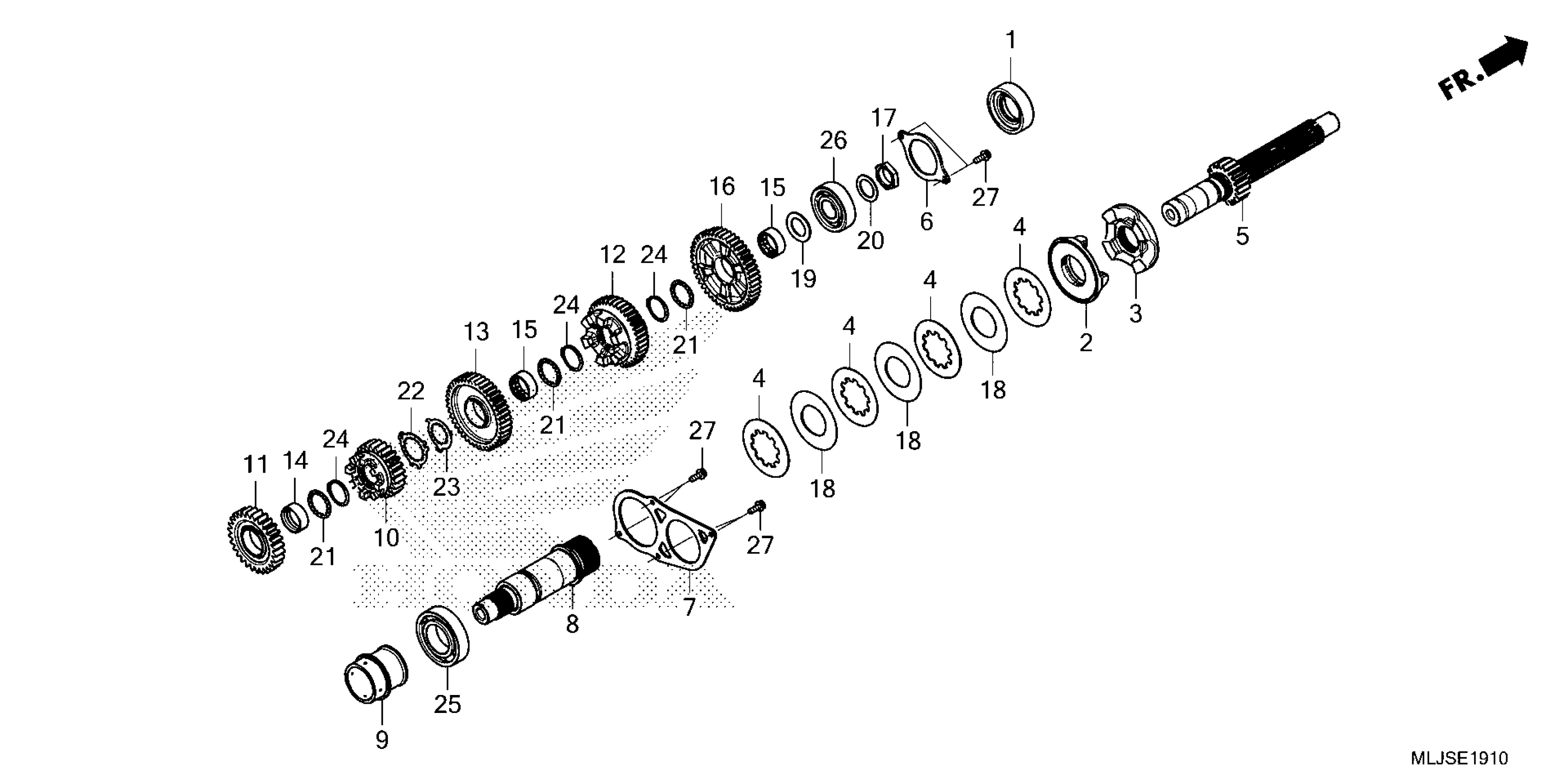

Honda GL1800B4AC (25) MOTORCYCLE, JPN, VIN# JH2SC791-SK700001 TO JH2SC791-SK799999 TRANSMISSION (MAINSHAFT) Diagram
