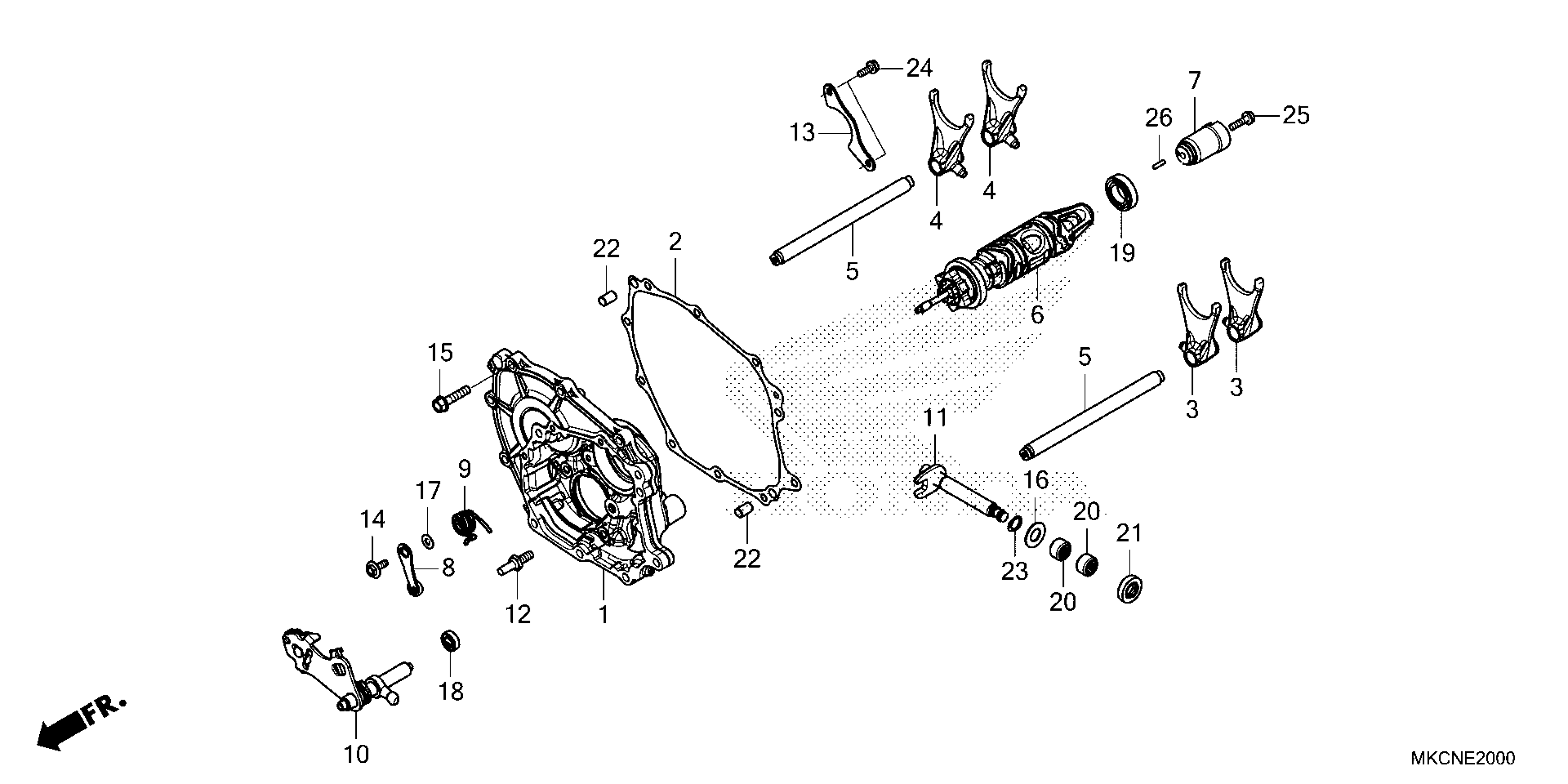

Honda GL1800B4AC (22) MOTORCYCLE, JPN, VIN# JH2SC791-NK400001 SHIFT DRUM@SHIFT FORK Diagram

#

Description
Price

1

HOLDER, TRANSMISSION

11130-MKC-A20

$186.39

2

GASKET, TRANSMISSION HOLDER

11135-MKC-A01

$18.10

3

FORK, MAINSHAFT GEARSHIFT

24211-MKC-A20

$62.75

4

FORK, COUNTERSHAFT GEARSHIFT

24212-MKC-A20

$65.57

5

SHAFT ASSY., SHIFT FORK

24250-MKC-A00

$34.70

6

DRUM, GEARSHIFT

24310-MKC-A20

$363.39

7

CAM, GEARSHIFT DRUM LOCK

24312-MKC-A20

$40.80

8

STOPPER, DRUM

24430-MKC-A20

$25.89

9

SPRING, SHIFT DRUM STOPPER

24436-MKC-A20

$4.82

10

SPINDLE, GEARSHIFT

24610-MKC-A20

$215.33

11

SPINDLE, GEARSHIFT

24620-MKC-A20

$50.70

12

PIN, RETURN SPRING

24652-MKC-A00

$6.67

13

PLATE, SHIFT DRUM BEARING SETTING

24656-MKC-A00

$5.41

14

PIVOT, SHIFT DRUM STOPPER ARM

90022-MKC-A00

$3.39

15

BOLT, FLANGE (8X30)

90078-MKC-A00

$2.89

16

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

17

WASHER, DRUM STOPPER

90417-360-000

$1.74

18

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.77

19

BEARING, RADIAL BALL (20X37X9)

91028-MKC-A21

$13.98

20

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$27.17

21

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

22

PIN, DOWEL (10X16)

94303-10160

$2.34

23

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

24

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

25

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

26

ROLLER (4X14.8)

96220-40148

$1.49
