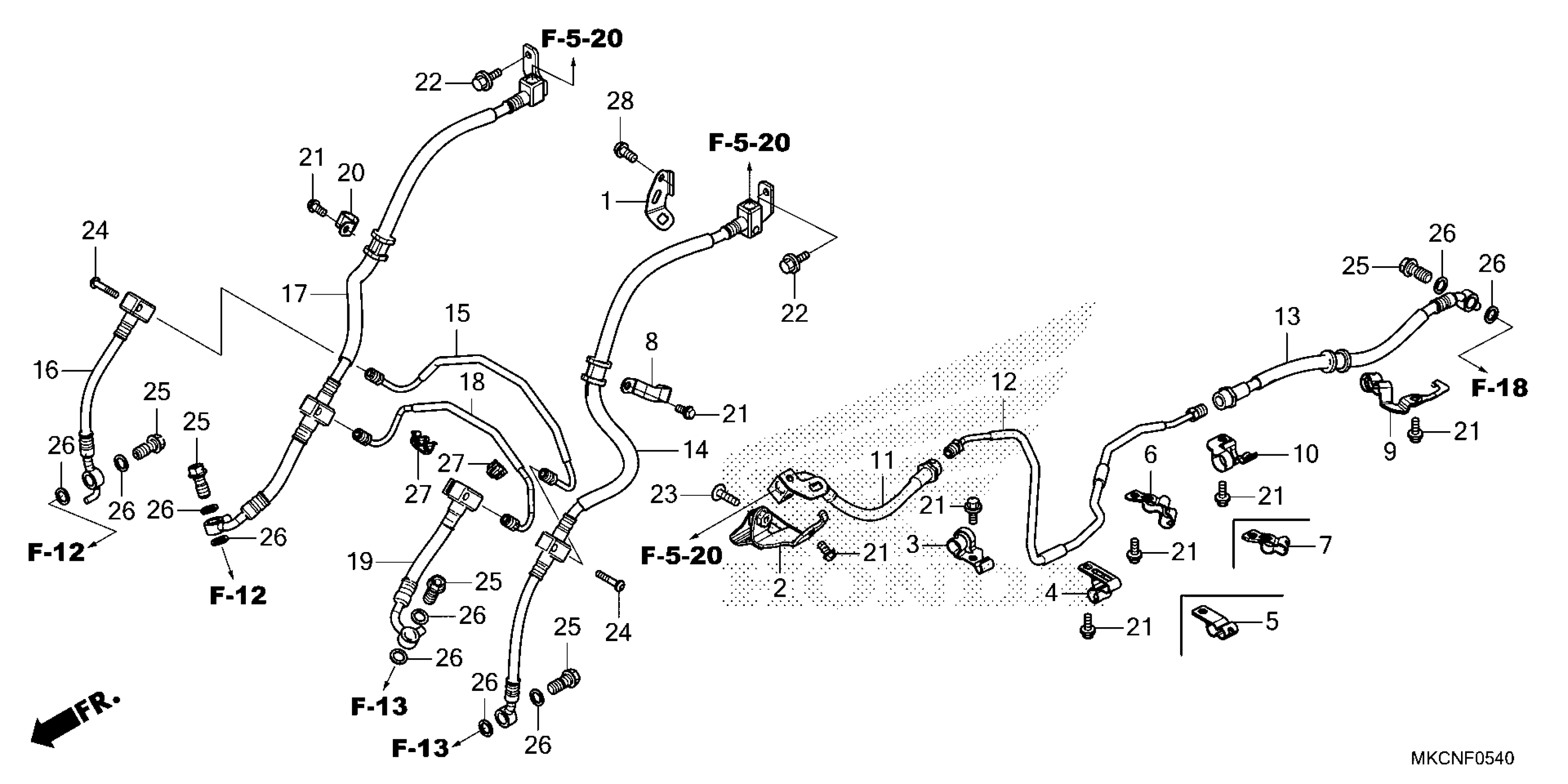

Honda GL1800B4AC (22) MOTORCYCLE, JPN, VIN# JH2SC791-NK400001 BRAKE HOSE@BRAKE PIPE Diagram

#

Description
Price

1

STAY, WIRE (VW & DF)

38522-MKC-A00

$3.75

2

STAY A, RR. BRAKE

43156-MKC-A00

$15.25

3

CLAMP, RR. BRAKE HOSE

43157-MKC-A00

$5.82

5

CLAMP A, RR. BRAKE HOSE

43158-MKC-A20

$4.70

7

CLAMP B, RR. BRAKE

43159-MKC-A20

$3.16

8

SUB-HOLDER, BRAKE

43161-MKC-A00

$5.00

9

CLAMP C, RR. BRAKE

43164-MKC-A00

$8.05

10

CLAMP D, RR. BRAKE PIPE

43167-MKC-A00

$5.77

11

HOSE B, RR. BRAKE

43313-MKC-A01

$56.49

12

PIPE C, RR. BRAKE

43314-MKC-A00

$39.57

13

HOSE C, RR. BRAKE

43315-MKC-A01

$44.21

14

HOSE A, BRAKE SUB

43322-MKC-A01

$94.59

15

PIPE B, SUB-BRAKE

43323-MKC-A00

$36.46

16

HOSE B, BRAKE SUB

43324-MKC-A01

$37.98

17

HOSE B, FR. BRAKE

45126-MKC-A01

$94.59

18

PIPE C, FR. BRAKE

45127-MKC-A00

$19.66

19

HOSE C, FR. BRAKE

45128-MKC-A01

$44.66

20

HOLDER, FR. BRAKE

45157-MKC-A00

$3.31

21

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

22

BOLT, FLANGE (6X14)

90013-GHB-620

$2.33

23

BOLT, SPECIAL (6X22)

90106-MFF-D00

$2.18

24

BOLT, SPECIAL (6X31)

90138-MKC-A00

$2.84

25

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

26

WASHER, OIL BOLT

90545-300-000

$3.99

27

CLAMP, BRAKE PIPE

90661-MCA-003

$2.15

28

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
