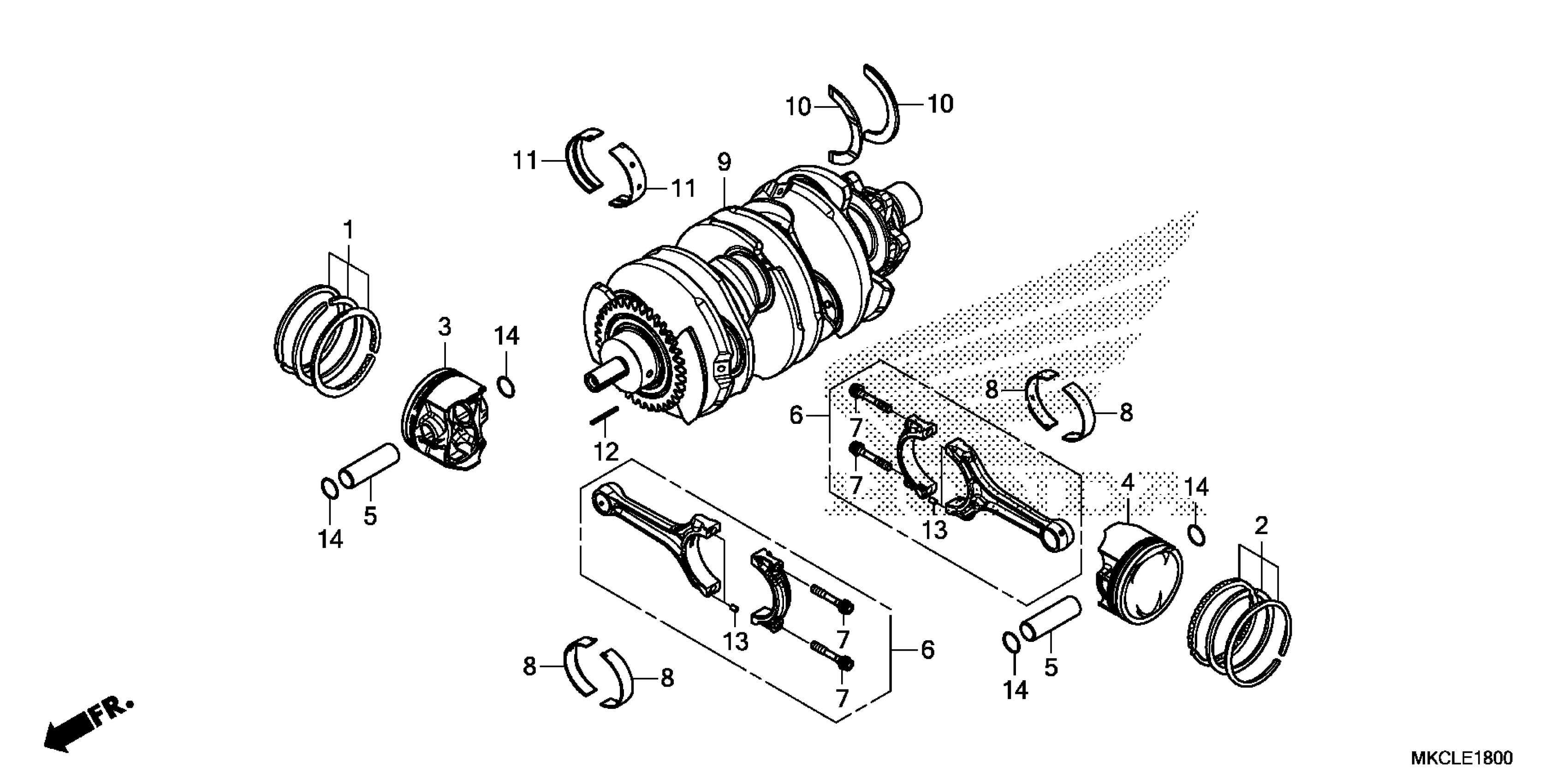

Honda GL1800B2AC (20) MOTORCYCLE, JPN, VIN# JH2SC791-LK200001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

RING SET, R. PISTON (STD)

13010-MKC-A00

$64.23

1

RING SET, R. PISTON (0.25) | (Optional).

13011-MKC-A00

$61.46

2

RING SET, L. PISTON (STD)

13015-MKC-A00

$64.23

2

RING SET, L. PISTON (0.25) | (Optional).

13016-MKC-A00

$61.46

3

PISTON, R. (STD)

13101-MKC-A00

$107.31

3

PISTON, R. (0.25) | (Optional).

13103-MKC-305

$102.69

4

PISTON, L. (STD)

13102-MKC-A00

$107.31

4

PISTON, L. (0.25) | (Optional).

13107-MKC-305

$102.69

5

PIN, PISTON This part replaces 13111-MKC-A00.

13111-KCZ-000

$18.79

6

ROD ASSY., CONNECTING

13210-MKC-A00

$260.33

7

BOLT, CONNECTING ROD

13213-MKC-A01

$7.36

8

BEARING A, CONNECTING ROD (BLUE)

13214-MKC-A01

$13.10

8

BEARING B, CONNECTING ROD (BLACK)

13215-MKC-A01

$13.10

8

BEARING C, CONNECTING ROD (BROWN)

13216-MKC-A01

$13.10

8

BEARING D, CONNECTING ROD (GREEN)

13217-MKC-A01

$13.10

8

BEARING E, CONNECTING ROD (YELLOW)

13218-MKC-A01

$13.10

9

CRANKSHAFT ASSY. This part replaces 13300-MKC-A00.

13300-MKC-A01

$1,758.74

10

BEARING, THRUST

13312-MN5-003

$18.21

11

BEARING A, CRANKSHAFT (BLUE)

13313-MKC-A01

$13.82

11

BEARING B, CRANKSHAFT (BLACK)

13314-MKC-A01

$13.82

11

BEARING C, CRANKSHAFT (BROWN)

13315-MKC-A01

$13.82

11

BEARING D, CRANKSHAFT (GREEN)

13316-MKC-A01

$13.82

11

BEARING E, CRANKSHAFT (YELLOW)

13317-MKC-A01

$13.82

12

KEY (2X2X30)

90701-MCA-010

$5.23

13

PIN, DOWEL (3X5)

94303-03050

$2.25

14

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
