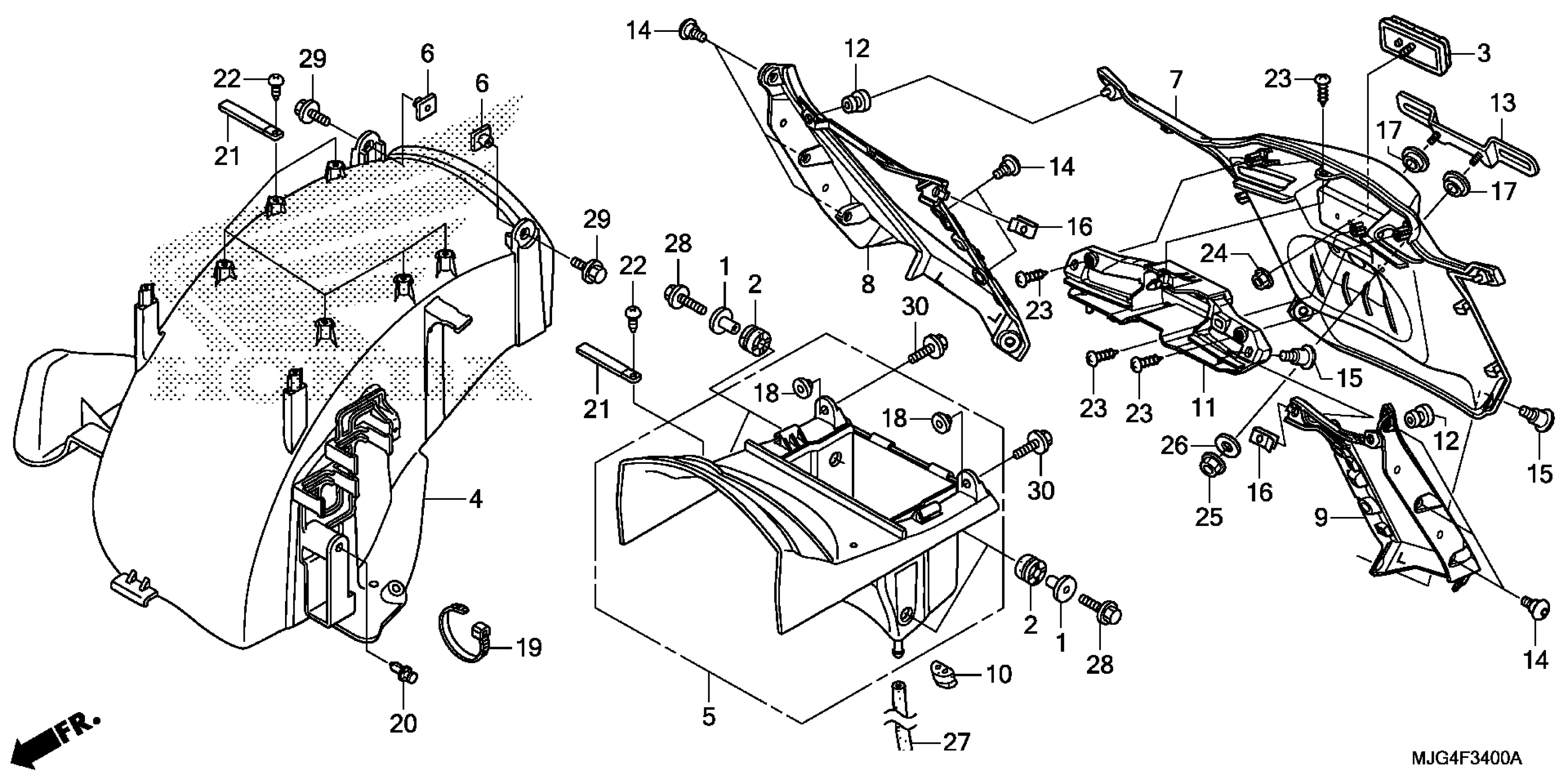

Honda GL1800B2AC (16) GOLDWING F6B, JPN, VIN# JH2SC684-GK300001 TO JH2SC684-GK399999 REAR FENDER Diagram

#

Description
Price

1

COLLAR, RR. FENDER

17246-GN5-960

$3.57

2

RUBBER, RADIATOR MOUNTING

19051-MS8-000

$4.44

3

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

4

FENDER B, RR.

80101-MCA-A70

$114.64

5

FENDER C, RR.

80102-MCA-A70

$141.52

6

NUT, RR. FENDER

80104-KJ2-000

$4.08

7

FENDER A, RR. *NH1* (BLACK)

80106-MCA-S40ZA

$103.07

8

COVER SET, R. RR. SADDLEBAG *NH389M* (MAT BULLET SILVER)

80110-MCA-S40ZM

$117.18

8

COVER SET, R. RR. SADDLEBAG *NHB54P* (MAT PEARL GLARE WHITE) | Mat pearl glare white NHB54P;

80110-MCA-S40ZP

$102.89

9

COVER SET, L. RR. SADDLEBAG *NH389M* (MAT BULLET SILVER)

80120-MCA-S40ZM

$121.44

9

COVER SET, L. RR. SADDLEBAG *NHB54P* (MAT PEARL GLARE WHITE) | Mat pearl glare white NHB54P;

80120-MCA-S40ZP

$113.64

10

RUBBER, RR. FENDER (C)

80122-MCA-A70

$4.03

11

SUPPORT, RR. FENDER

80125-MCA-S40

$49.61

12

GROMMET, SIDE COVER

83501-MG7-000

$2.61

13

BRACKET, NUMBER PLATE

84700-MCA-S40

$16.31

14

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

15

BOLT, SPECIAL (6X8)

90116-MEW-920

$1.49

16

NUT, SPRING (6MM)

90320-MM5-000

$2.84

17

COLLAR, HEAT GUARD

90503-MCS-760

$2.31

18

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

19

BAND, WIRE HARNESS

90620-SB2-003

$24.63

20

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

21

CLIP (2X70)

91410-MN1-671

$3.05

22

SCREW, TAPPING (5X10)

93901-25120

$1.49

23

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

24

NUT, FLANGE (5MM)

94050-05080

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

WASHER, PLAIN (6MM)

94103-06000

$1.49

27

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

28

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

29

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

30

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
