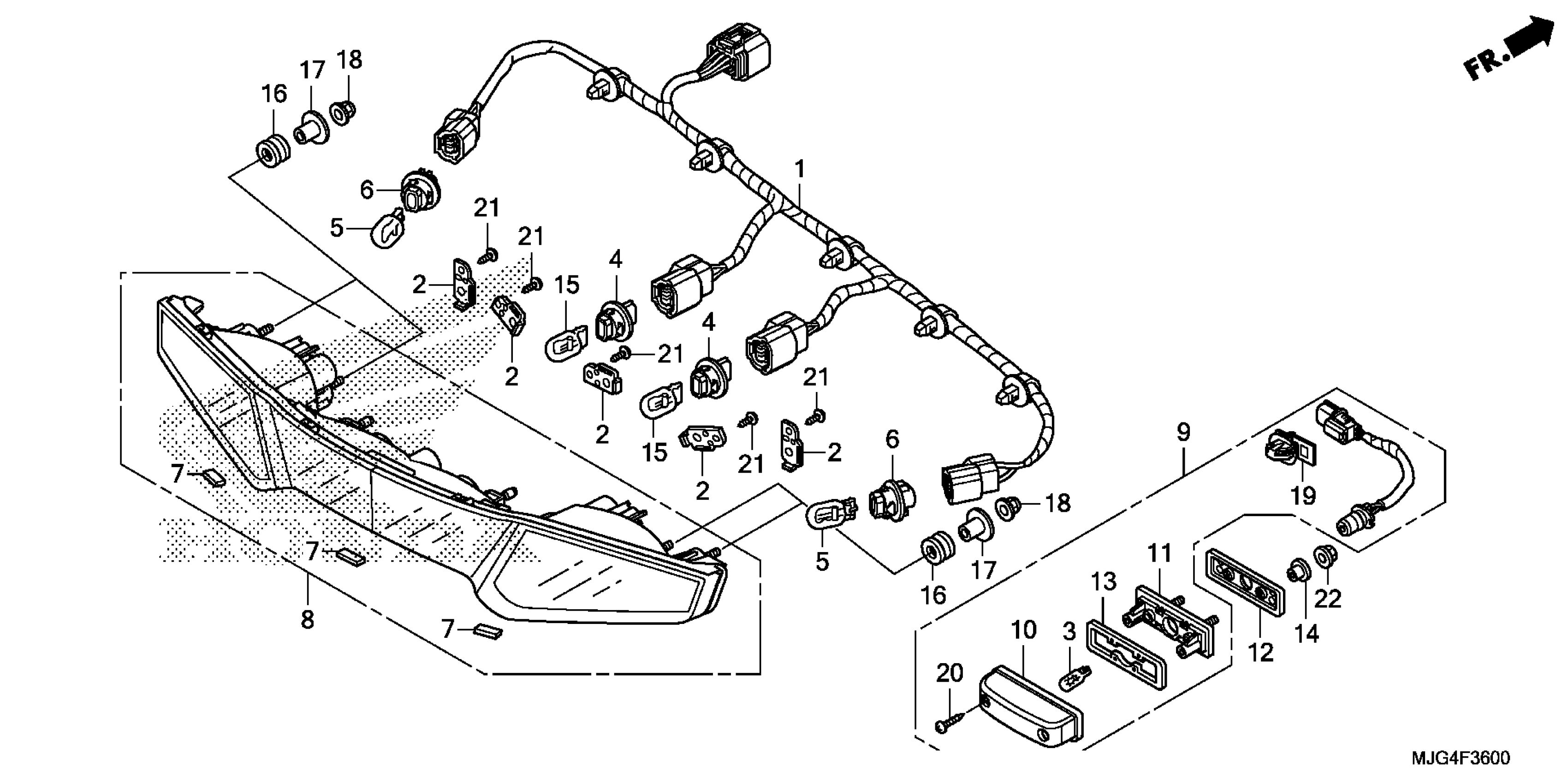

Honda GL1800B2AC (16) GOLDWING F6B, JPN, VIN# JH2SC684-GK300001 TO JH2SC684-GK399999 REAR COMBINATION LIGHT Diagram

SUB-HARNESS, RR. COMBINATION LIGHT

32126-MJG-670

$68.37

STAY, 1

32161-MCA-S41

$1.96

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

SOCKET (T20 W)

33302-S5A-A01

$49.12

BULB (12V 21W) This part replaces 33303-S2R-003.

33303-SCK-003

$8.01

SOCKET (T20 S) (AMBER)

33303-SAA-003

$20.13

RUBBER, SPACER

33501-MCA-S41

$2.49

COMBINATION UNIT, RR. (COO)

33510-MJG-305

$567.09

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MJG-305

$97.87

COVER, LICENSE

33721-GET-671

$17.66

BASE, LICENSE

33723-MER-D01

$20.94

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.74

GASKET, LENS

33729-MCZ-003

$8.75

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

Unavailable

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$3.83

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

NUT, HEX. CAP (6MM)

90207-RAA-A00

$2.66

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

SCREW, TAPPING (4X16)

93901-24480

$0.82

SCREW, TAPPING (5X14) (PO)

93913-25320

$0.76

NUT, FLANGE (5MM)

94050-05080

$0.38
