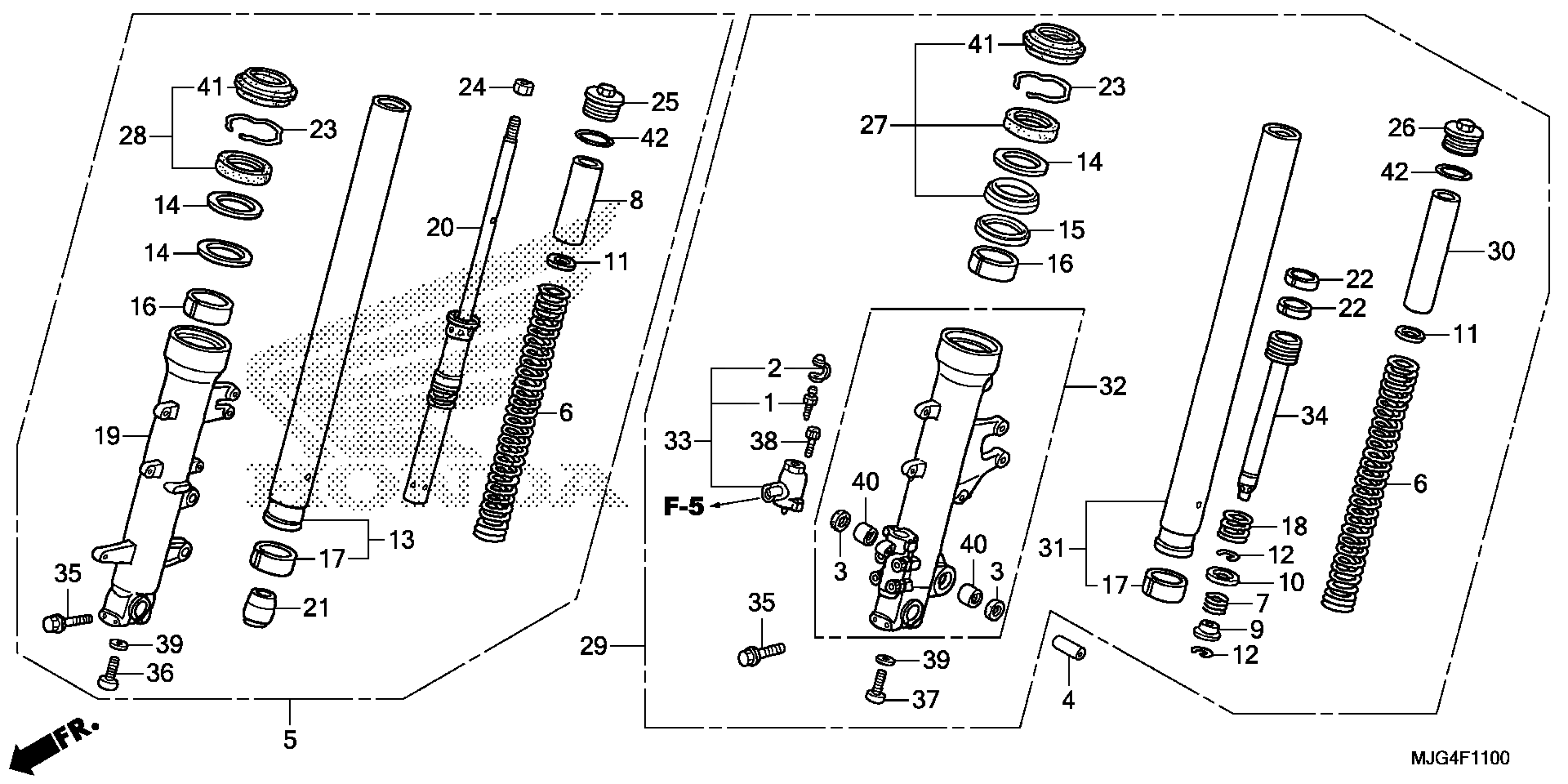

Honda GL1800B2AC (16) GOLDWING F6B, JPN, VIN# JH2SC684-GK300001 TO JH2SC684-GK399999 FRONT FORK Diagram

#

Description
Price

1

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

2

CAP, BLEEDER

43353-461-771

Unavailable

3

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.83

4

COLLAR, PIVOT

45452-MZ2-000

$9.24

5

FORK ASSY., R. FR. (SHOWA) This part replaces 51400-MJG-305.

51400-MJG-671

$1,088.97

6

SPRING, FR. FORK

51401-MCA-A81

$15.10

7

SPRING, OIL LOCK

51402-MB7-611

$5.12

8

COLLAR, SPRING

51402-MCA-003

$4.51

9

VALVE, OIL LOCK

51403-MCA-003

$4.37

10

SEAT, SPRING

51404-MB7-611

$4.87

11

SEAT, SPRING

51405-KA4-711

$5.95

12

RING, STOPPER

51405-MB7-611

$2.69

13

PIPE, R. FR. FORK

51410-MCA-S41

$288.66

14

RING, BACK-UP

51412-KZ3-003

$8.68

15

RING, BACK-UP

51412-MCA-A61

$4.28

16

BUSH, GUIDE

51414-MFR-671

$19.90

17

BUSH, SLIDER

51415-MFR-671

$10.58

18

SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)

51416-KA4-831

$13.07

19

CASE, R. (LOWER) (SHOWA)

51420-MJG-671

$444.43

20

DAMPER, FR.

51430-MCA-013

$123.01

21

PIECE, OIL LOCK

51432-MCA-003

$8.84

22

RING, PISTON

51437-MCA-003

$7.26

23

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.88

24

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

25

BOLT, FR. FORK

51454-MBR-003

$29.70

26

BOLT, FR. FORK

51454-MCA-003

$16.29

27

SEAL SET, FR. FORK

51490-MCA-S41

$32.57

28

SEAL SET, FR. FORK

51490-MFR-671

$27.55

29

FORK ASSY., L. FR. (SHOWA) This part replaces 51500-MJG-305.

51500-MJG-671

$1,088.97

30

COLLAR B, SPRING

51502-MCA-003

$4.51

31

PIPE, L. FR. FORK

51510-MCA-S41

$288.66

32

CASE ASSY., L. (LOWER)

51520-MJG-671

$444.43

33

CASE, PLUNGER

51530-MJG-671

$193.51

34

PIPE, SEAT

51540-MCA-003

$208.75

35

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

36

BOLT, SOCKET (8X27)

90116-383-721

Unavailable

37

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

38

BOLT, SOCKET (5X18)

90118-MCA-003

$4.10

39

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

40

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$35.60

41

DUST SEAL

91254-MCH-C11

$11.73

42

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.71
