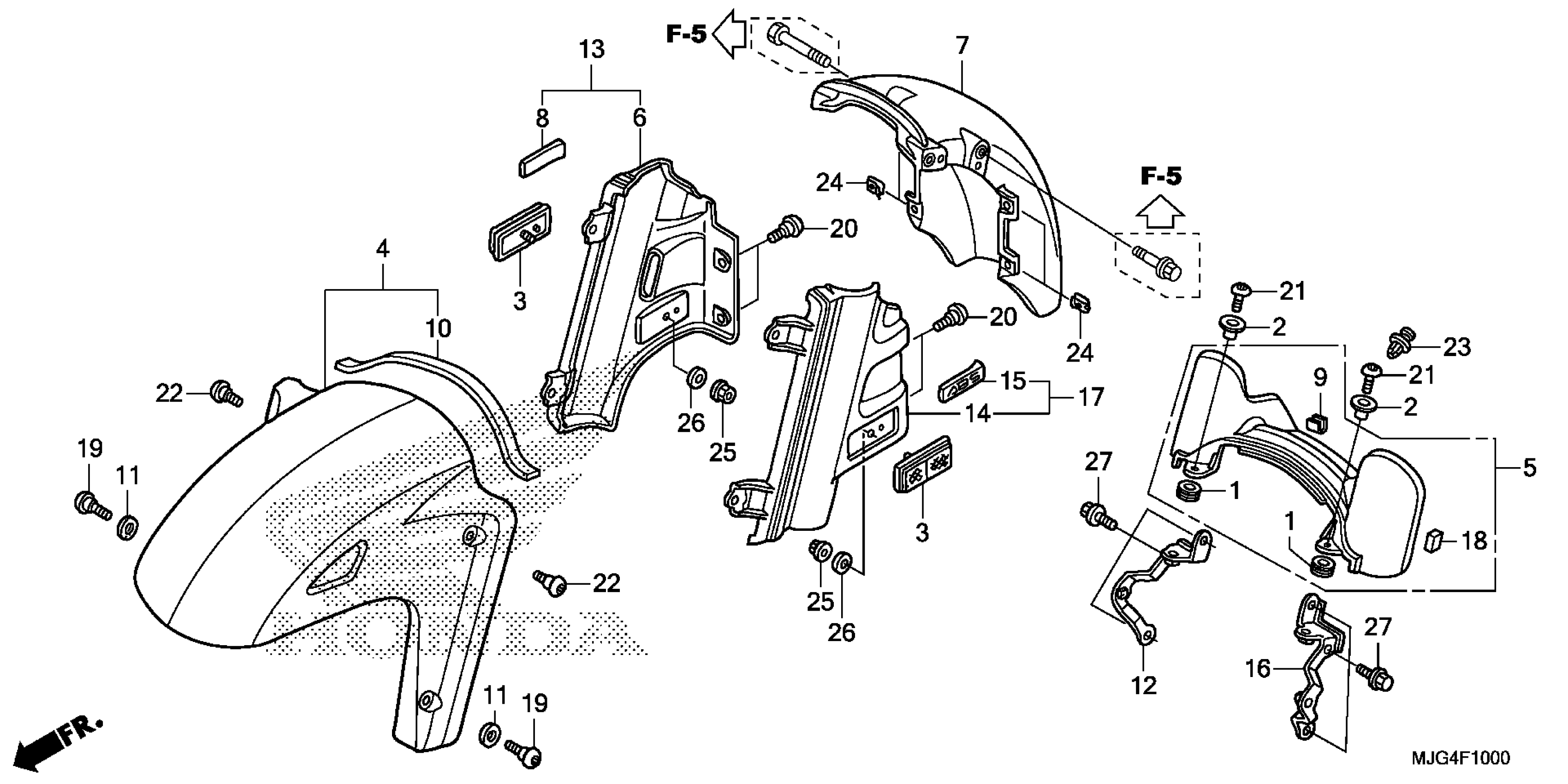

Honda GL1800B2AC (16) GOLDWING F6B, JPN, VIN# JH2SC684-GK300001 TO JH2SC684-GK399999 FRONT FENDER Diagram

#

Description
Price

1

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

2

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

3

REFLECTOR, REFLEX

33741-MCA-601

$31.36

4

FENDER, FR. *NH389M* (A) (MAT BULLET SILVER)

61000-MCA-S40ZM

$540.67

4

FENDER, FR. *NHB54P* (A) (MAT PEARL GLARE WHITE) | Mat pearl glare white NHB54P;

61000-MCA-S40ZP

$484.21

5

COVER SET, FR. FORK *NHA86M* (MAT BALLISTIC BLACK)

61100-MCA-S40ZB

$59.28

6

COVER, R. FR. FENDER *NHA86M* (MAT BALLISTIC BLACK)

61102-MCA-S40ZB

$53.84

7

FENDER B, FR. *NH389M* (MAT BULLET SILVER)

61103-MCA-000YV

$238.08

7

FENDER B, FR. *NHB54P* (MAT PEARL GLARE WHITE) | Mat pearl glare white NHB54P;

61103-MCA-000YX

$205.18

9

RUBBER, COVER

61106-MCA-S40

$1.49

10

SEAL, FR. FENDER (A)

61107-MCA-S40

$5.77

11

WASHER, RUBBER

61108-MCA-000

$1.52

12

STAY, R. FR. FENDER

61109-MCA-000

$25.47

14

COVER, L. FR. FENDER *NHA86M* (MAT BALLISTIC BLACK)

61112-MCA-S40ZB

$53.84

16

STAY, L. FR. FENDER

61119-MCA-000

$38.87

18

RUBBER, TAILLIGHT

80103-MFE-670

$1.49

19

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.78

20

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

21

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

22

SCREW, PAN (6X14)

90113-MM5-000

$3.10

23

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

24

NUT, CLIP (5MM)

90677-KAN-961

$4.07

25

NUT, FLANGE (5MM)

94050-05080

$1.49

26

WASHER, PLAIN (5MM)

94101-05800

$1.49

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
