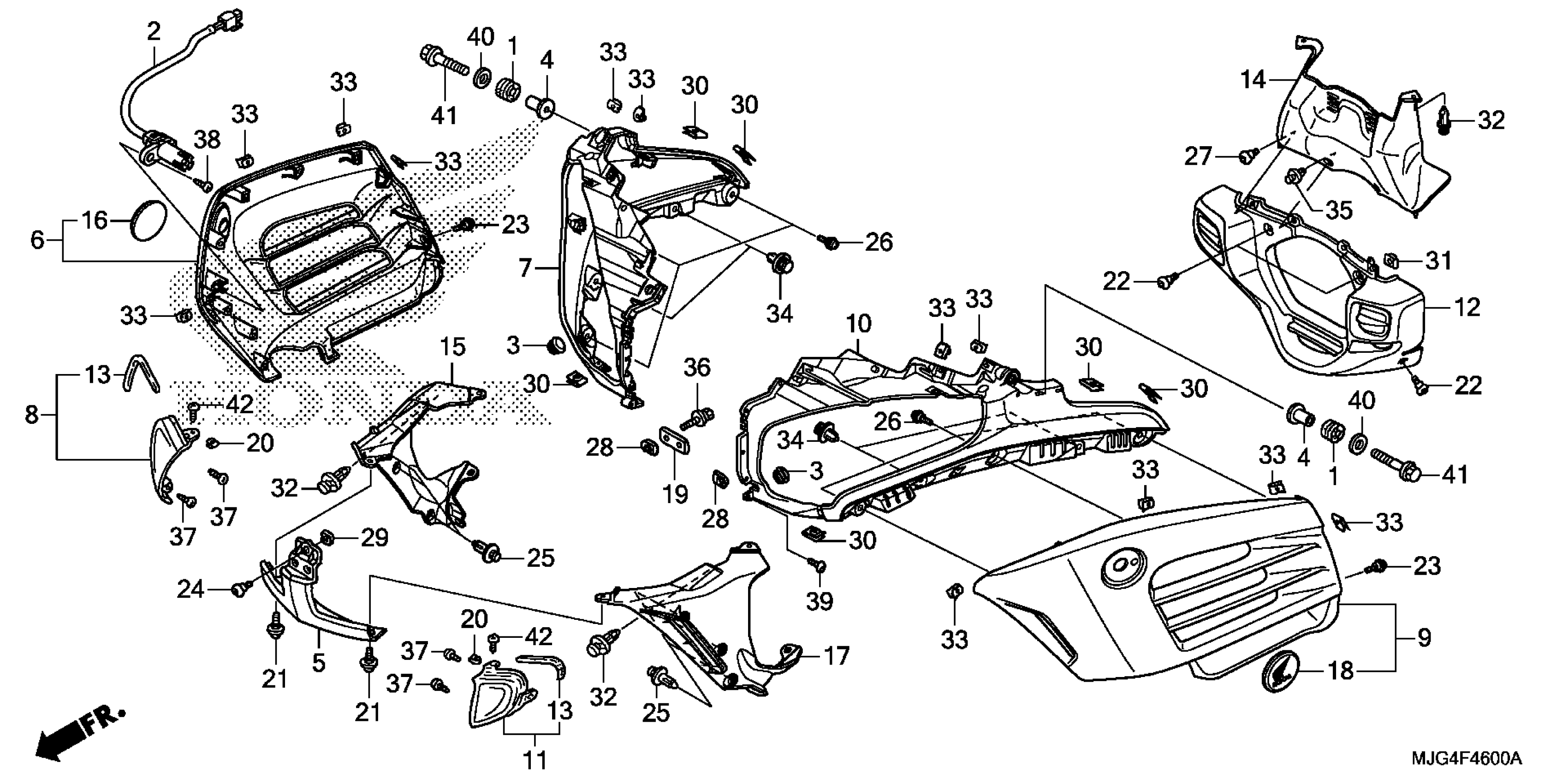

Honda GL1800B2AC (15) GOLD WING F6B, JPN, VIN# JH2SC684-FK200001 TO JH2SC684-FK299999 COWL Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

2

SENSOR, TEMPERATURE (OPEN AIR)

37890-MCA-S41

$57.00

3

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.77

4

COLLAR, FR. FENDER SETTING

61101-MN4-000

$5.12

5

COWL, FR. CENTER *PB395M* (ATMOSPHERE BLUE METALLIC) | Atmosphere blue metallic PB395M;

64216-MCA-000YV

$44.43

5

COWL, FR. CENTER *NH389M* (MAT BULLET SILVER) | Mat bullet silver NH389M;

64216-MCA-000YW

$44.43

6

COWL SET, R. MIDDLE *NHA86M* (WL) (MAT BALLISTIC BLACK)

64280-MJG-670ZC

$265.93

7

COWL, R. SIDE *PB395M* (ATMOSPHERE BLUE METALLIC) | Atmosphere blue metallic PB395M;

64282-MCA-S40ZM

$410.49

7

COWL, R. SIDE *NH389M* (MAT BULLET SILVER) | Mat bullet silver NH389M;

64282-MCA-S40ZN

$410.49

8

COVER, R. HEADLIGHT SIDE *NH303M* (MAT AXIS GRAY METALLIC)

64286-MCA-S40ZA

$27.38

9

COWL SET, L. MIDDLE *NHA86M* (WL) (MAT BALLISTIC BLACK)

64290-MJG-670ZA

$265.93

10

COWL, L. SIDE *PB395M* (ATMOSPHERE BLUE METALLIC) | Atmosphere blue metallic PB395M;

64292-MCA-S40ZL

$392.86

10

COWL, L. SIDE *NH389M* (MAT BULLET SILVER) | Mat bullet silver NH389M;

64292-MCA-S40ZM

$392.86

11

COVER, L. HEADLIGHT SIDE *NH303M* (MAT AXIS GRAY METALLIC)

64296-MCA-S40ZA

$27.38

12

COWL, FR. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

64302-MCA-S40ZB

$335.59

13

SEAL, AIR DUCT

64448-MCA-A60

$1.52

14

COWL, CENTER (INNER)

64501-MCA-A60

$57.28

15

COWL, R. (INNER)

64502-MJG-670

$88.81

16

BADGE, R. PRODUCT

64503-MFL-000

$34.51

17

COWL, L. (INNER)

64503-MJG-670

$88.81

18

BADGE, L. PRODUCT

64508-MFL-000

$34.51

19

PLATE, HEADLIGHT (LOWER)

64517-MCA-000

$2.71

20

NUT, CENTER PANEL

66871-611-000

$5.28

21

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.80

22

SCREW, PAN (6X11)

90106-KY2-701

$3.95

23

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

24

SCREW, PAN (6X17)

90107-MM5-000

$4.69

25

RIVET, PUSH

90116-MCS-G00

$1.26

26

SCREW, PAN (5X13)

90117-MN5-000

$2.07

27

SCREW, SPECIAL (6MM)

90137-MCA-000

$2.80

28

NUT, AIR SPOILER CLIP

90305-SM4-000

$4.29

29

NUT, SPRING (6MM)

90320-747-000

$2.13

30

NUT, SPRING (5MM)

90320-GE2-760

$1.80

31

NUT, SPRING (6MM)

90320-MM5-000

$2.58

32

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

33

NUT, CLIP (5MM)

90677-KAN-961

$3.79

34

CLIP, FENDER (INNER)

91512-SX0-003

$2.65

35

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$3.93

36

BOLT-WASHER (6X30)

93404-06030-08

$2.74

37

SCREW, TAPPING (4X10)

93903-24280

$1.23

38

SCREW, TAPPING (4X12)

93903-24380

Unavailable

39

SCREW, TAPPING (5X16)

93903-25380

$0.83

40

WASHER, PLAIN (6MM)

94103-06000

$0.90

41

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

42

SCREW, TAPPING (4X12)

93903-24380

Unavailable
