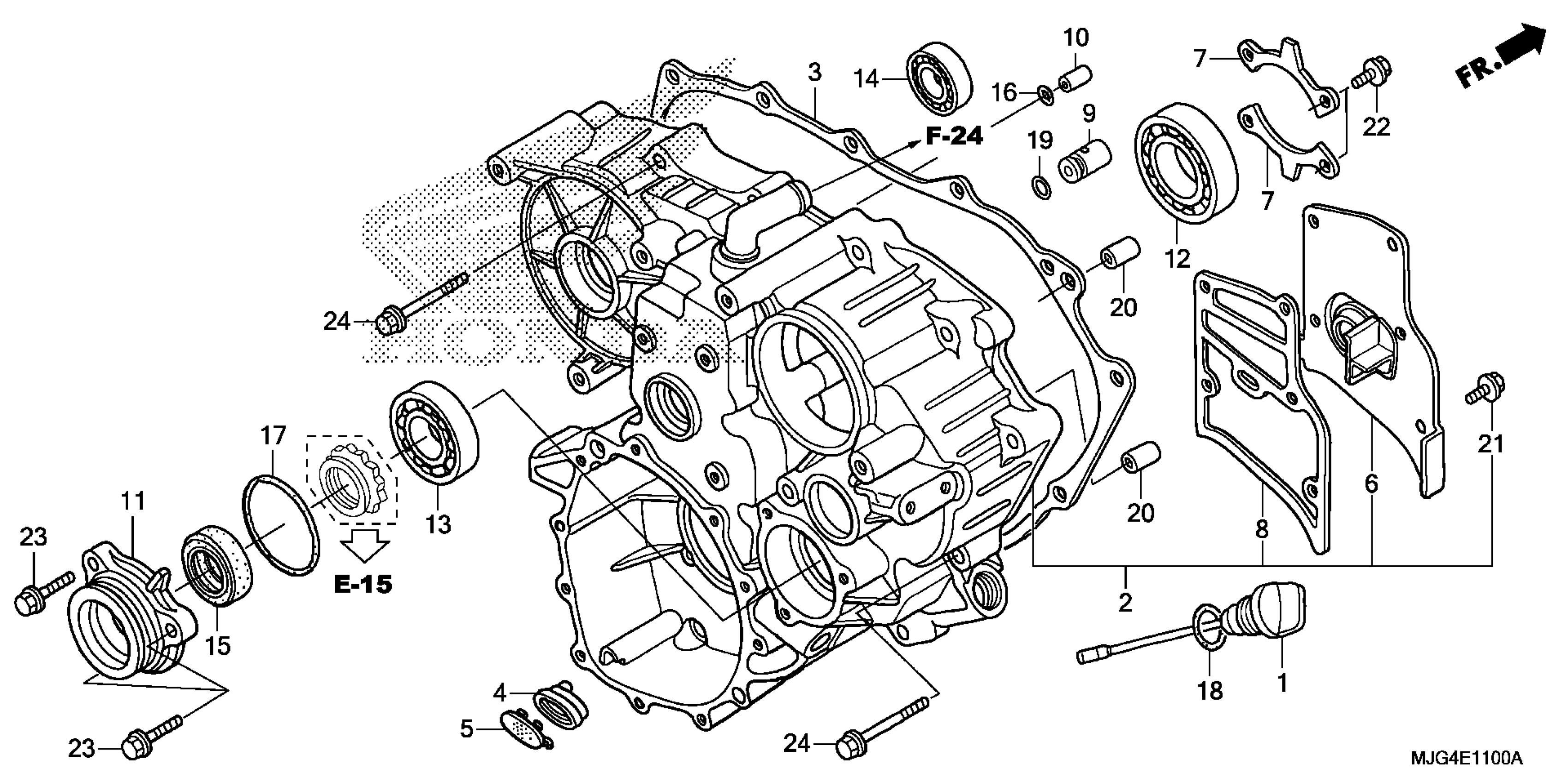

Honda GL1800B2AC (14) GOLD WING F6B, JPN, VIN# JH2SC684-EK100001 TO JH2SC684-EK199999 REAR CASE Diagram

#

Description
Price

1

DIPSTICK, OIL

15650-MCA-010

$16.65

2

CASE ASSY., RR.

21100-MJG-670

$941.97

3

GASKET, RR. CASE This part replaces 21112-MCA-010.

21112-MCA-020

$36.51

4

BODY, SCAVENGE OIL PUMP STRAINER

21116-MCA-780

$6.84

5

CAP, SCAVENGE OIL PUMP STRAINER

21117-MCA-780

$4.93

6

PLATE, BREATHER

21120-MEC-000

$15.04

7

PLATE, PRIMARY BEARING SETTING

21122-MN5-000

$9.01

8

GASKET, BREATHER PLATE

21125-MEC-003

$13.71

9

VALVE ASSY., CLUTCH REGULATOR

22360-MEC-000

$28.22

10

ORIFICE, CLUTCH CONTROL

22465-MCA-000

$3.79

11

HOLDER, FINAL SHAFT BEARING

23751-MN5-000

$103.62

12

BEARING, RADIAL BALL (6010) (NTN)

91002-MN5-003

$71.47

13

BEARING, RADIAL BALL (6206) (NTN)

91006-MT3-003

$20.88

13

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91011-MN5-003.

91006-MT3-003

$20.88

14

BEARING, RADIAL BALL (6905)

91015-MCA-003

$9.57

15

OIL SEAL (28X48X9) (NOK)

91204-MN5-005

$12.43

16

O-RING B (6.8X2.5) (ARAI)

91304-MC7-003

$2.80

17

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.43

17

O-RING (62.4X3.1)

91316-PE7-730

$5.43

17

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.43

18

O-RING (18X3)

91307-035-000

$2.75

19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.52

19

O-RING (14.8X2.2)

91313-MG7-004

$3.52

20

PIN, DOWEL (10X16)

94301-10160

$2.80

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

23

BOLT, FLANGE (8X28)

95701-08028-00

$1.28

24

BOLT, FLANGE (8X45)

95701-08045-00

$1.35
