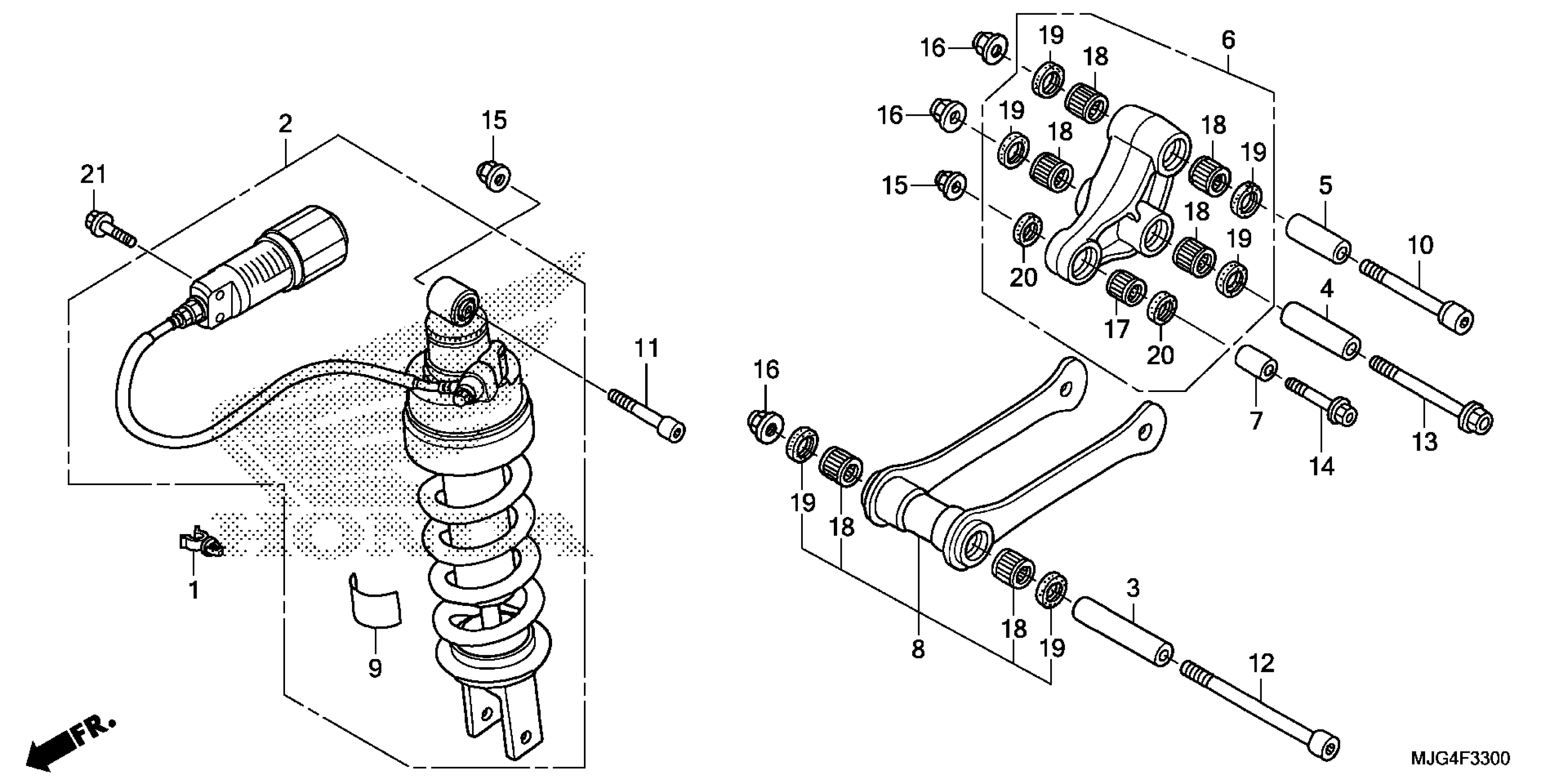

Honda GL1800B2AC (13) GOLD WING F6B, JPN, VIN# JH2SC684-DK000001 TO JH2SC684-DK099999 REAR SHOCK ABSORBER Diagram

CLIP, THROTTLE WIRE

17938-SE0-941

$6.59

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MJG-305

$1,169.25

COLLAR, CONNECTING ROD PIVOT

52462-MJG-670

$18.82

COLLAR C, CUSHION ARM

52463-MJG-670

$14.78

COLLAR A, CUSHION ARM

52464-MJG-670

$11.85

ARM SUB-ASSY., CUSHION

52465-MCA-000

$269.91

COLLAR C, CUSHION ARM

52465-MY1-000

$5.64

ROD SUB-ASSY., CUSHION CONNECTING

52475-MCA-000

$116.75

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.56

BOLT, SOCKET (12X90)

90110-MCA-000

$11.50

BOLT, SOCKET (10X55)

90110-ML7-000

$5.01

BOLT, SOCKET (12X127)

90111-MCA-000

$12.91

BOLT, FLANGE (12X99)

90123-MCA-000

$4.96

BOLT, FLANGE (10X55)

90153-KF0-000

$8.61

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.52

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$18.07

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$17.00

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.47

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
