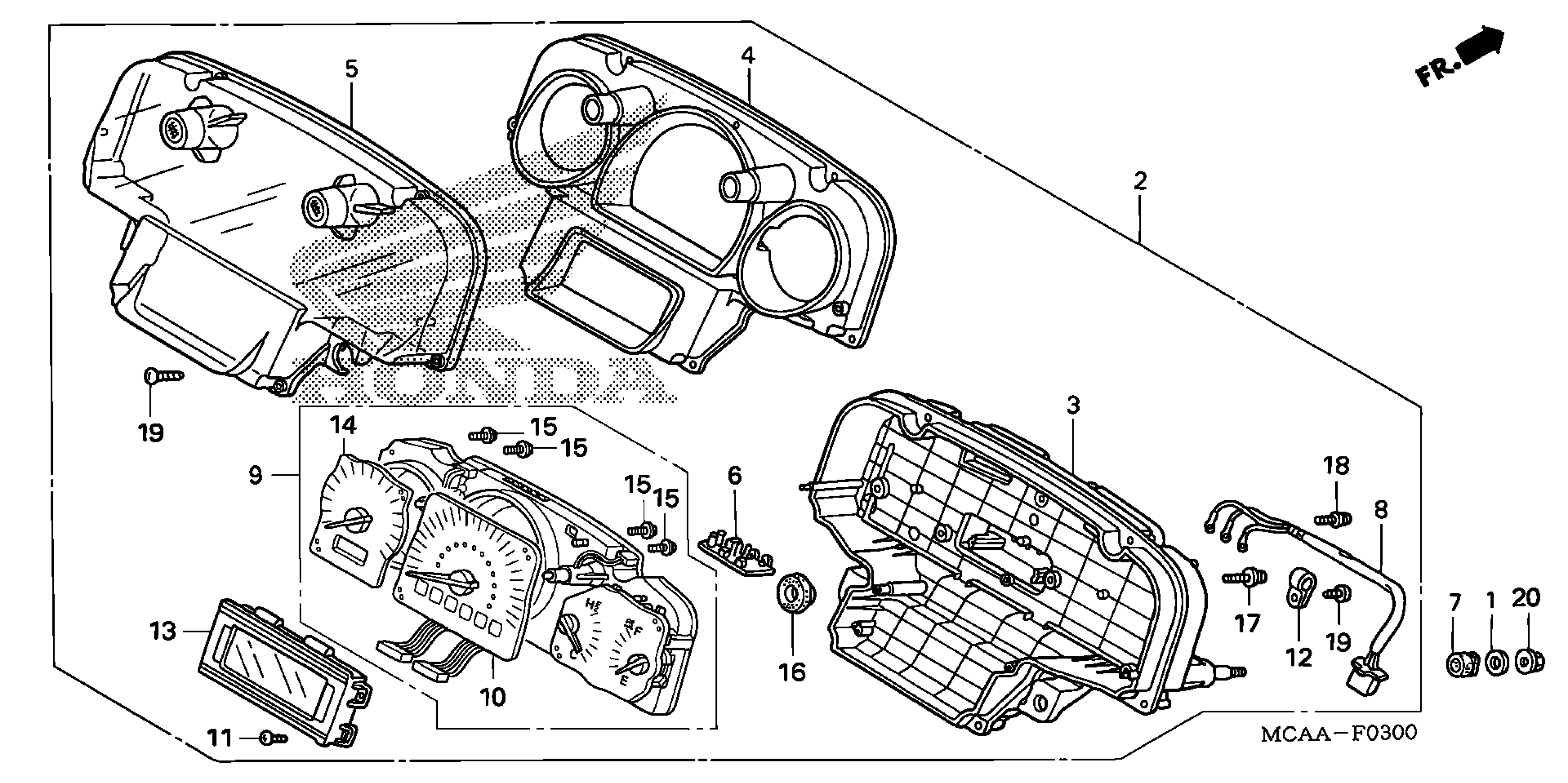

Honda GL1800AA (05) GOLD WING, USA, VIN# 1HFSC474-5A400001 TO 1HFSC474-5A499999 SPEEDOMETER (GL1800/A'05) Diagram

WASHER, PIVOT (Honda Code 0283556)

17936-921-000

$1.49

METER ASSY., COMBINATION (MPH/KPH)

37100-MCA-A51

$1,121.28

CASE ASSY. (LOWER)

37101-MCA-671

Unavailable

PLATE ASSY., REFLECTING

37102-MCA-671

Unavailable

GLASS ASSY.

37103-MCA-671

$62.36

CIRCUIT ASSY. (TURN SIGNAL RELAY)

37107-MCA-671

$43.90

RUBBER, METER SETTING

37109-MBG-000

$2.34

WIRE ASSY.

37109-MCA-671

Unavailable

METER, COMBINATION

37110-MCA-A51

$1,014.72

SPEEDOMETER

37200-MCA-971

Unavailable

SCREW, TAPPING (3X14)

37214-KV7-671

$1.49

CLAMP

37215-KAF-008

$2.90

LCD ASSY.

37230-MCA-671

$515.89

TACHOMETER

37250-MCA-671

Unavailable

SCREW-WASHER (3X17)

78121-SZ3-901

$4.49

GROMMET, SIDE COVER (PER MS TODA EMAIL 2/26/01)

83601-MN5-000

$2.92

SCREW, TAPPING (3X14)

90101-KY6-008

$2.61

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

SCREW, TAPPING (4X16)

93903-24420

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
