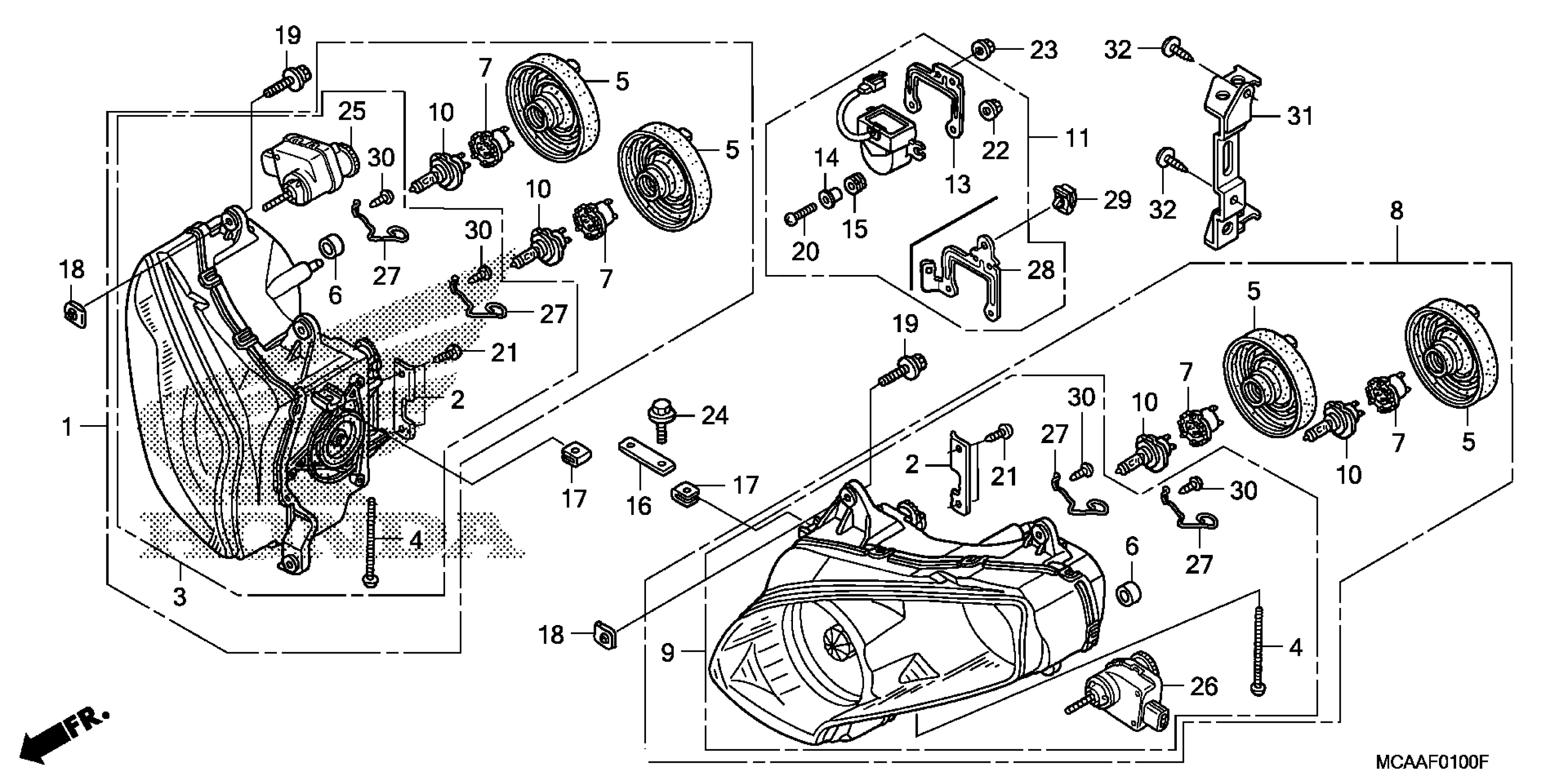

Honda GL1800AA (05) GOLD WING, USA, VIN# 1HFSC474-5A400001 TO 1HFSC474-5A499999 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY., R. This part replaces 33100-MCA-A20.

33100-MCA-A61

$430.68

1

HEADLIGHT ASSY., R.

33100-MCA-A61

$430.68

2

PLATE

33101-MCA-003

$7.16

3

HEADLIGHT UNIT, R. This part replaces 33102-MCA-A20.

33102-MCA-A61

Unavailable

3

HEADLIGHT UNIT, R.

33102-MCA-A61

Unavailable

4

SCREW, BEAM ADJUST

33103-MCA-003

$8.66

5

COVER, RUBBER

33112-KPB-003

$12.16

6

PIPE, CP

33113-MBW-D21

$2.44

7

SOCKET, HEADLIGHT

33130-MAT-611

$15.25

8

HEADLIGHT ASSY., L.

33150-MCA-A61

$430.68

8

HEADLIGHT ASSY., L. This part replaces 33150-MCA-671.

33150-MCA-A61

$430.68

9

HEADLIGHT UNIT, L.

33152-MCA-A61

$378.60

9

HEADLIGHT UNIT, L. This part replaces 33152-MCA-671.

33152-MCA-A61

$378.60

10

BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)

34901-MAT-611

$25.16

11

SENSOR ASSY., BANK ANGLE This part replaces 35160-MCA-A21.

35160-MCA-A22

Unavailable

13

PLATE, BANK ANGLE SENSOR

35162-MCA-A21

$2.63

14

COLLAR

35162-MN5-003

$6.93

15

GROMMET

35163-MN5-003

$3.00

16

PLATE, HEADLIGHT (UPPER)

64516-MCA-000

$3.57

17

NUT, SPRING (6MM)

90301-SM4-901

$5.93

18

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.52

19

BOLT-WASHER (6X25)

93404-06025-07

$1.87

20

SCREW, PAN (4X20)

93500-04020-0H

$1.00

21

SCREW, TAPPING (4X12)

93901-34320

$0.91

22

NUT, FLANGE (4MM)

94050-04000

$1.22

23

NUT, FLANGE (5MM)

94050-05080

$0.38

24

BOLT, FLANGE (6X18)

96001-06018-00

$1.79

25

ADJUSTER UNIT, R. HEADLIGHT

33130-MCA-003

$89.37

26

ADJUSTER UNIT, L. HEADLIGHT

33135-MCA-003

$94.72
