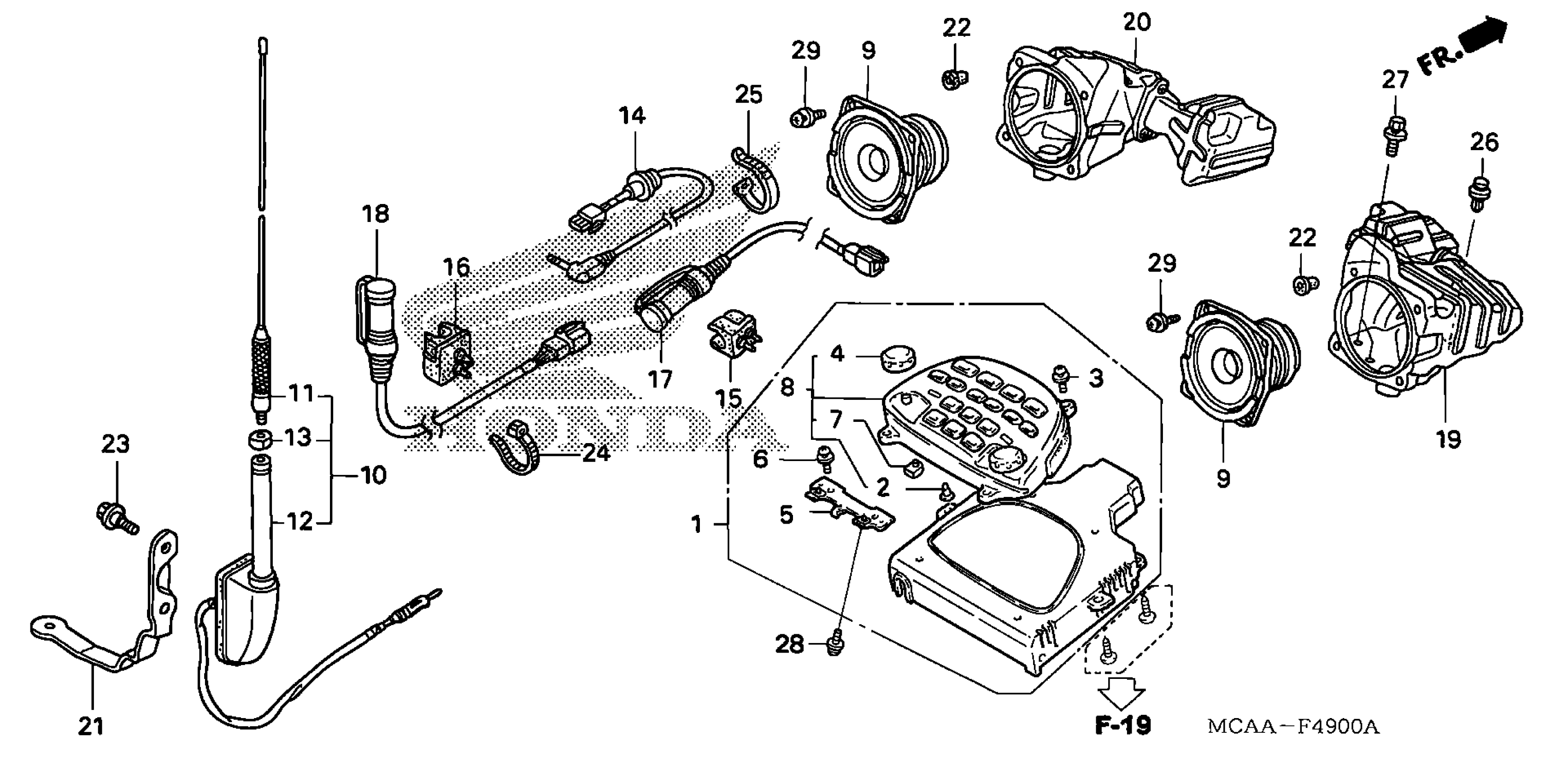

Honda GL1800AA (05) GOLD WING, USA, VIN# 1HFSC474-5A400001 TO 1HFSC474-5A499999 AUDIO UNIT (GL1800/A'05) Diagram

AUDIO UNIT

39110-MCA-A41

$2,631.31

BULB, NEO-WEDGE (14V1.1W)

39111-MCA-671

$5.76

SCREW, WASHER

39112-MCA-671

$2.51

KNOB (AUDIO)

39113-MCA-671

$7.58

STAY, TOP SHELTER

39114-MCA-671

$14.66

SCREW, WASHER

39115-MCA-671

$1.49

PIPE, DRAIN

39116-MCA-671

$2.69

CASE (UPPER)

39120-MCA-A41

Unavailable

SPEAKER UNIT (FR)

39130-MCA-003

$56.82

ANTENNA ASSY., RADIO

39150-MCA-003

$189.25

ELEMENT, ANTENNA

39151-MCA-000

$93.13

FEEDER, ANTENNA

39152-MCA-000

$50.80

NUT, ANTENNA

39153-MN5-003

$4.12

CORD (AUX) This part replaces 39170-MCA-000.

39170-MCA-010

$53.20

CORD (AUX)

39170-MCA-010

$53.20

CONNECTOR, FR. HOLDER

39242-MCA-000

$7.36

CONNECTOR, RR. HOLDER

39243-MCA-000

$7.36

LEAD, DRIVER HEAD SET JUNCTION

39245-MCA-H90

$90.51

LEAD, DRIVER HEAD SET JUNCTION This part replaces 39245-MCA-003.

39245-MCA-H90

$90.51

LEAD, PASSENGER HEAD SET JUNCTION

39246-MCA-003

$98.02

BOX ASSY., R. SPEAKER

64231-MCA-000

$47.57

BOX ASSY., L. SPEAKER

64236-MCA-000

$47.57

PLATE, ANTENNA SETTING This part replaces 81175-MCA-000.

81175-MCA-010

$20.52

PLATE, ANTENNA SETTING

81175-MCA-010

$20.52

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

BOLT, FLANGE (6MM)

90139-MCA-000

$3.10

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

BOLT-WASHER (6X12)

93404-06012-07

$1.55

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

SCREW-WASHER (5X10)

93891-05010-08

$1.49

SCREW-WASHER (5X16)

93892-05016-08

$1.49
