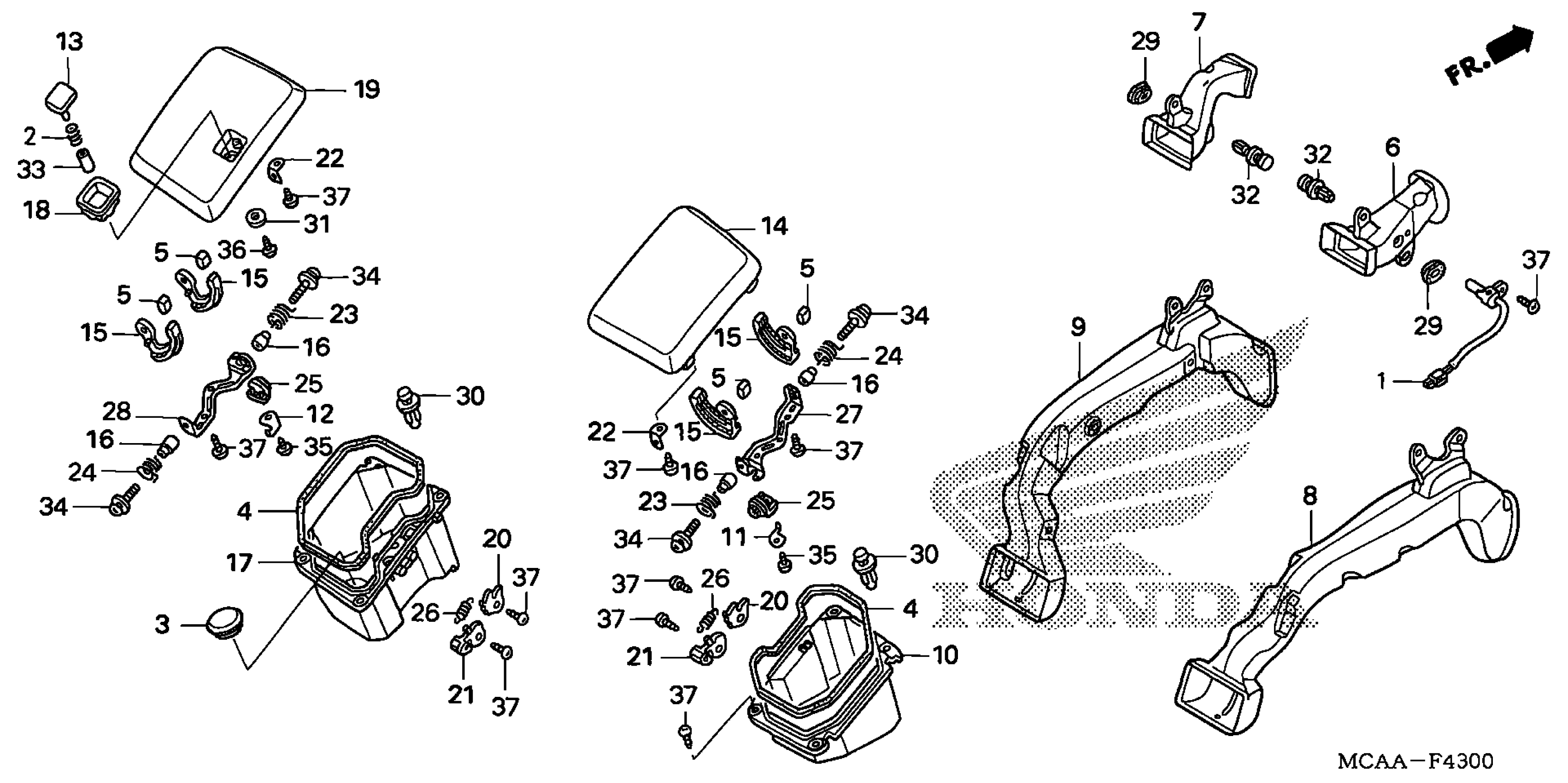

Honda GL1800AA (05) GOLD WING, USA, VIN# 1HFSC474-5A400001 TO 1HFSC474-5A499999 AIR DUCT (GL1800/A'05) Diagram

#

Description
Price

1

SENSOR, TEMPERATURE (OPEN AIR)

37890-MCA-003

Unavailable

2

SPRING, COIL

38253-898-000

$1.39

3

GROMMET, WASHER HOLE

38564-SA5-000

$7.26

4

SEAL, POCKET

64228-MCA-300

$1.57

5

SEAL, POCKET ARM

64229-MCA-300

Unavailable

6

DUCT, R. AIR (UPPER)

64275-MCA-000

$19.67

7

DUCT, L. AIR (UPPER)

64276-MCA-000

$19.67

8

DUCT, R. AIR (LOWER)

64278-MCA-000

$15.80

9

DUCT, L. AIR (LOWER)

64279-MCA-000

$15.80

10

POCKET, R. FR.

64410-MCA-780

$45.22

11

PLATE, R. POCKET ARM POSITION

64412-MCA-000

$2.23

12

PLATE, L. POCKET ARM POSITION

64413-MCA-000

Unavailable

13

BUTTON, L. POCKET COVER OPEN

64414-MCA-000

$4.41

14

COVER, R. POCKET

64415-MCA-780

$52.20

15

ARM, FR. POCKET

64416-MCA-000

$2.03

16

COLLAR, POCKET ARM PIVOT

64419-MCA-000

$7.35

17

POCKET, L. FR.

64420-MCA-000

$46.96

18

COVER, L. BUTTON

64423-MCA-000

$6.84

19

COVER, L. POCKET

64425-MCA-000

$34.17

20

CAM A, POCKET COVER LOCK

64428-MCA-000

$2.58

21

CAM B, POCKET COVER LOCK

64429-MCA-000

$2.58

22

PLATE, POCKET LOCK

64431-MCA-000

$3.77

23

SPRING A, FR. POCKET

64433-MCA-000

$3.69

24

SPRING B, FR. POCKET

64434-MCA-000

$3.69

25

DAMPER, FR. POCKET

64435-MCA-000

Unavailable

26

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.36

27

STAY, R. POCKET COVER

64438-MCA-000

$43.30

28

STAY, L. POCKET COVER

64439-MCA-000

Unavailable

29

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

30

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

31

WASHER, PLAIN (3MM)

90502-MCA-000

$0.11

32

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$3.93

33

COLLAR A

91551-883-T00

$2.67

34

SCREW-WASHER (4X25)

93894-04025-00

$0.83

35

SCREW, TAPPING (3X10)

93903-22280

$3.59

36

SCREW, TAPPING (3X12)

93903-22380

$0.83

37

SCREW, TAPPING (4X10)

93903-24280

$1.23
