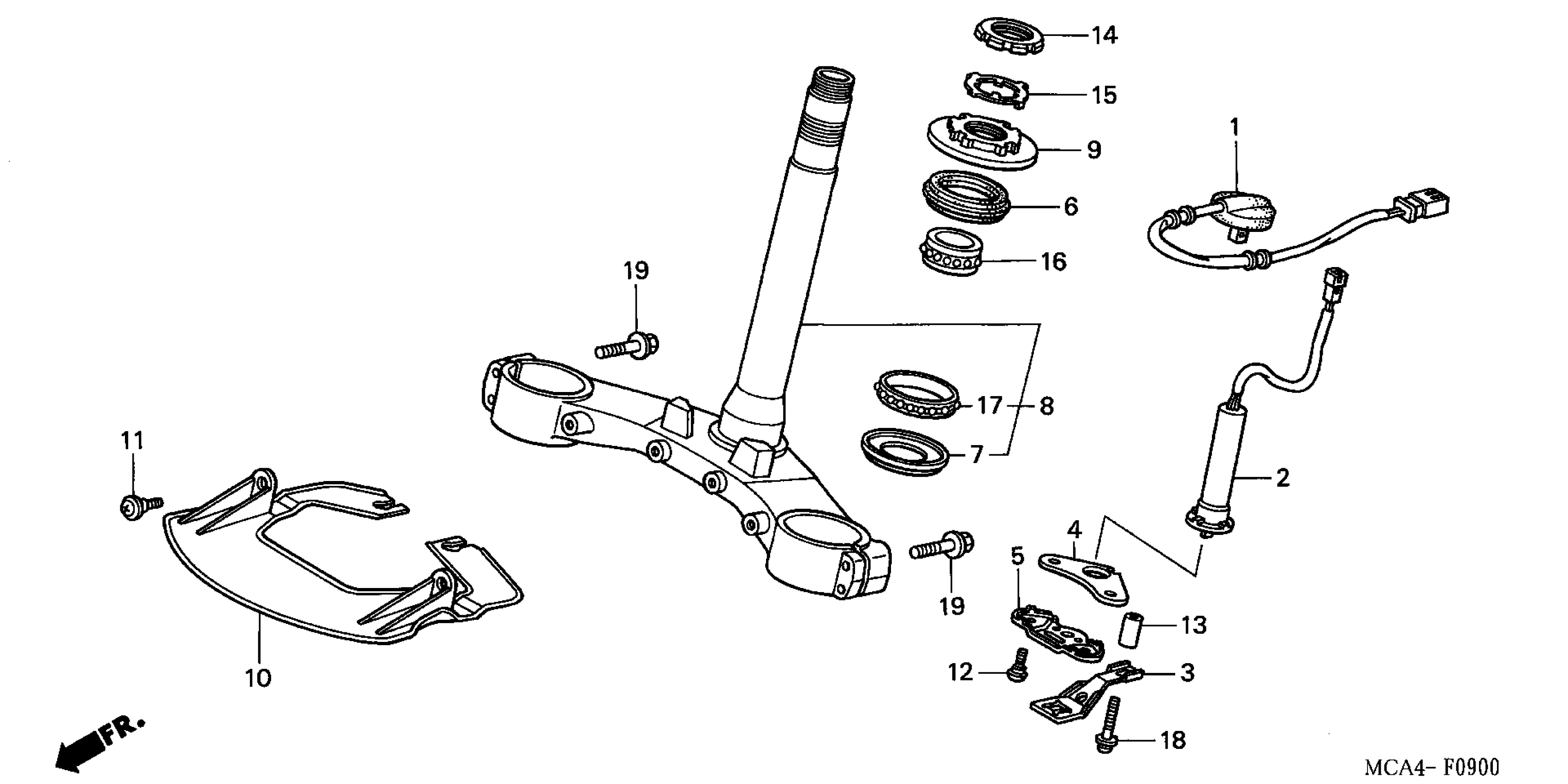

Honda GL1800AA (04) GOLD WING, USA, VIN# 1HFSC474-4A300001 STEERING STEM Diagram

SUB-WIRE, CANCEL

32108-MCA-000

Unavailable

CANCEL UNIT, TURN SIGNAL

35220-MCA-003

$269.61

PLATE, ANGLE SENSOR (UPPER)

50261-MCA-000

$8.92

PLATE, ANGLE SENSOR (LOWER)

50262-MCA-000

$7.26

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

DUST SEAL, STEERING HEAD (ARAI)

53214-MR7-003

$5.81

STEM SUB-ASSY., STEERING

53219-MCA-A00

$407.57

THREAD, STEERING HEAD TOP

53220-MW0-000

$19.13

SCREW, HINGE PATCH

90101-GE0-000

$2.89

SCREW, SPECIAL (5MM)

90106-MBA-610

$2.98

COLLAR, SENSOR SUPPORT

90113-MCA-000

$6.72

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (NTN)

91016-MR7-003

$46.29

SCREW-WASHER (5X30)

93894-05030-08

$6.34

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
