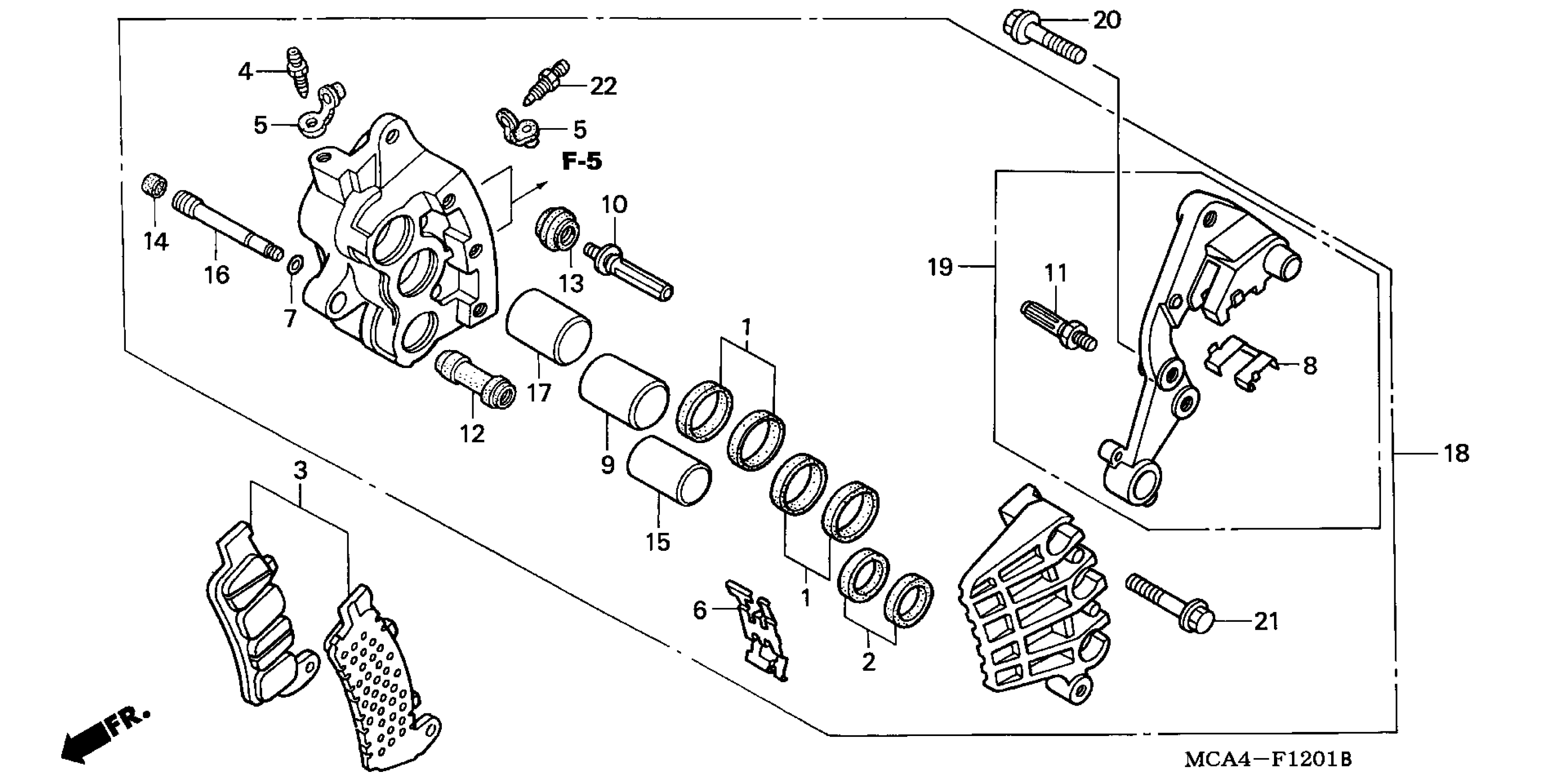

Honda GL1800AA (04) GOLD WING, USA, VIN# 1HFSC474-4A300001 RIGHT FRONT BRAKE CALIPER (GL1800A) Diagram

Description

Price

SEAL SET, PISTON

06451-GE2-405

$11.41

SEAL SET, PISTON

06451-MZ2-405

$12.55

PAD SET, FR. This part replaces 06456-MCA-006.

06456-MCA-016

$45.64

PAD SET, FR.

06456-MCA-016

$45.64

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD

45108-MZ2-016

$8.55

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

PISTON A (25X27)

45117-MAJ-G41

$28.27

BOLT A, PIN

45131-ML7-921

$15.44

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MCC-006

$2.89

PISTON B (22X35)

45207-MAJ-G41

$30.00

PIN, HANGER

45215-MAJ-G41

$6.45

PISTON B (25X35)

45217-MAJ-G41

$36.94

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MCA-971

$372.41

BRACKET SUB-ASSY., R. FR.

45290-MCA-971

$45.59

BOLT, FLANGE (8X32)

90107-MT3-003

$4.49

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.46

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22
