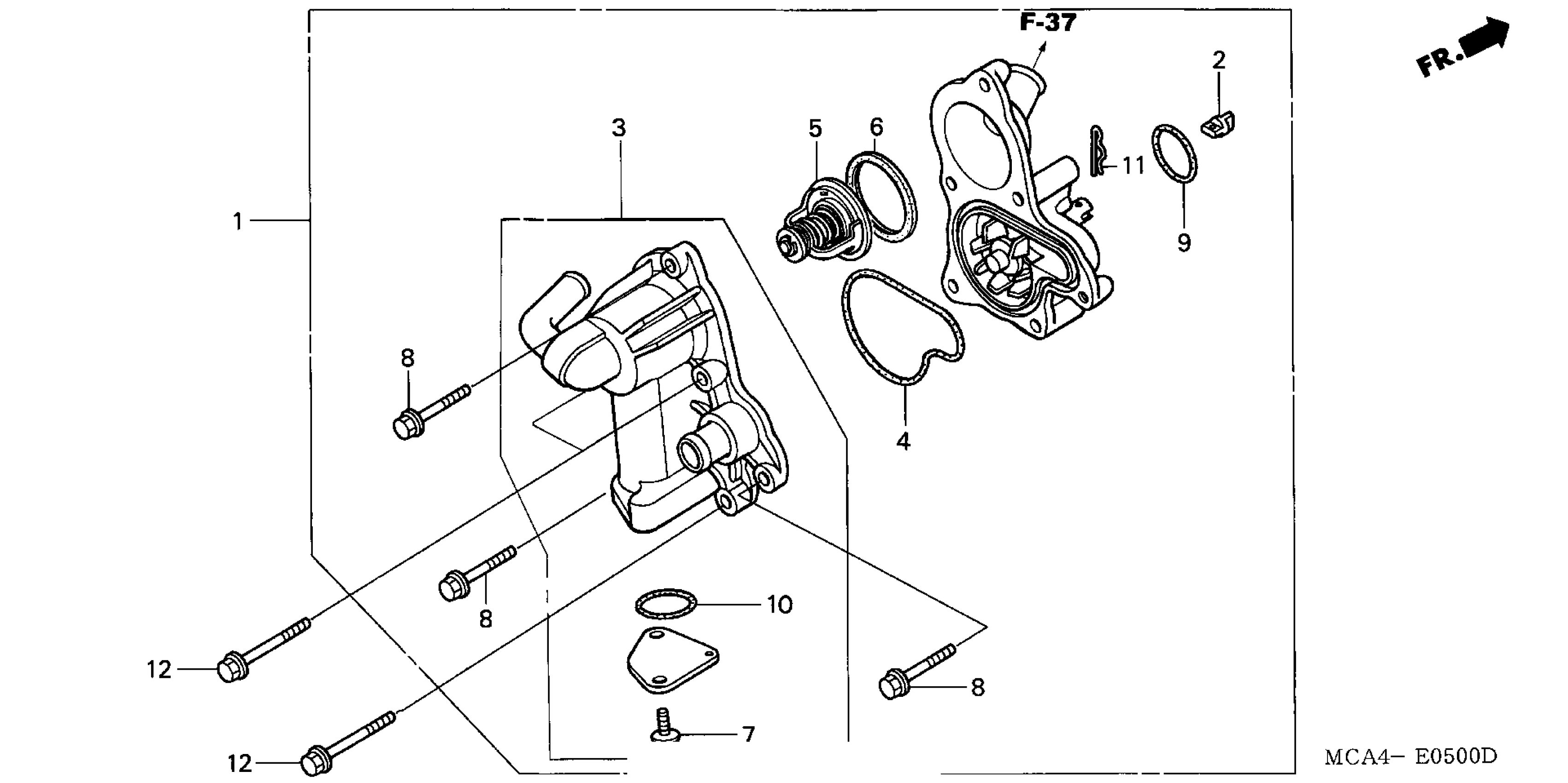

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 WATER PUMP Diagram

WATER PUMP This part replaces 19200-MCA-A00.

19200-MCA-A02

$310.68

WATER PUMP

19200-MCA-A02

$310.68

SHAFT, WATER PUMP JOINT

19217-MCA-000

$13.15

COVER, WATER PUMP This part replaces 19220-MCA-A00.

19220-MCA-A02

$175.44

GASKET, WATER PUMP COVER

19226-MCA-A00

$6.19

THERMOSTAT ASSY. (NIPPON THERMOSTAT) This part replaces 19300-P08-014.

19301-PAA-306

$49.75

THERMOSTAT ASSY. (NIPPON THERMOSTAT)

19301-PAA-306

$49.75

THERMOSTAT ASSY. (NIPPON THERMOSTAT) This part replaces 19301-P08-316.

19301-PAA-306

$49.75

RUBBER, THERMOSTAT

19305-MCA-A00

$8.78

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

O-RING (31.5X2.0) This part replaces 91304-MCA-A00.

91304-MCA-A02

$2.30

O-RING (31.5X2.0)

91304-MCA-A02

$2.30

PIN, LOCK (12MM)

94251-12000

$1.49

BOLT, FLANGE (6X65)

95701-06065-08

$2.19
