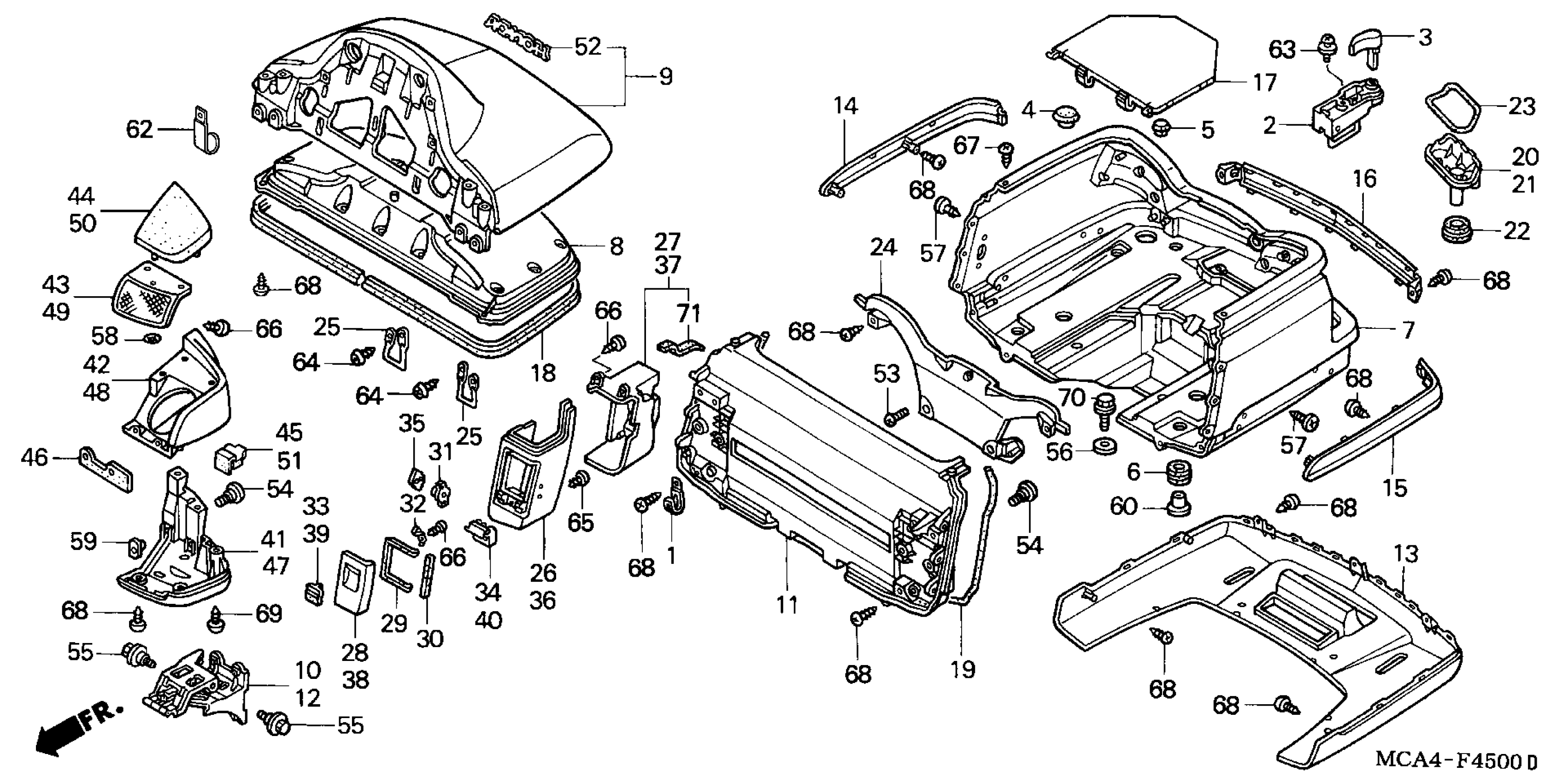

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 TRUNK BOX Diagram

CLIP, PULSER WIRE

32925-958-000

$2.92

HOLDER ASSY., HELMET

50710-MCA-003

$27.72

KNOB ASSY., HELMET HOLDER This part replaces 50714-MCA-000.

50714-MCA-S40

$6.05

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

RUBBER, STOPPER

80105-MAH-610

$7.18

RUBBER, TRUNK MOUNTING

80202-MCA-000

$2.72

BOX, TRUNK *NH1Z* (BLACK-Z)

81111-MCA-000ZA

Unavailable

BOX, TRUNK *R274M* (DURANGO RED METALLIC)

81111-MCA-000ZJ

$710.11

BOX, TRUNK *RP166M* (KELLY MAGENTA METALLIC)

81111-MCA-000ZL

$696.20

BOX, TRUNK *R287M* (BLOODSTONE RED METALLIC)

81111-MCA-000ZM

$735.16

BOX, TRUNK *R288* (FLARE RED)

81111-MCA-000ZN

Unavailable

BOX, TRUNK *Y181P* (PEARL CHALLENGER BROWN)

81111-MCA-000ZP

$780.64

BOX, TRUNK *NHA29* (ARCTIC WHITE)

81111-MCA-000ZQ

$780.64

INNER LID, TRUNK

81123-MCA-000

$71.15

LID SET, TRUNK *NH1Z* (WL) (BLACK-Z)

81125-MCA-780ZH

Unavailable

LID SET, TRUNK *NH1Z* (WL) (BLACK-Z) This part replaces 81125-MCA-A00ZA.

81125-MCA-780ZH

Unavailable

LID SET, TRUNK *NH1Z* (WL) (BLACK-Z) This part replaces 81125-MCA-A20ZA.

81125-MCA-780ZH

Unavailable

LID SET, TRUNK *R274M* (WL) (DURANGO RED METALLIC)

81125-MCA-A20ZD

Unavailable

LID SET, TRUNK *NHA29* (ARCTIC WHITE)

81125-MCA-A20ZJ

$978.59

LID SET, TRUNK *RP166M* (KELLY MAGENTA METALLIC)

81125-MCA-A20ZQ

Unavailable

LID SET, TRUNK *R287M* (BLOODSTONE RED METALLIC)

81125-MCA-A20ZR

Unavailable

LID SET, TRUNK *R288* (WL) (FLARE RED)

81125-MCA-A20ZS

Unavailable

LID SET, TRUNK *Y181P* (WL) (PEARL CHALLENGER BROWN)

81125-MCA-A20ZT

Unavailable

HINGE, R. TRUNK

81130-MCA-000

$94.15

PANEL, FR. TRUNK This part replaces 81131-MCA-000.

81131-MCA-700

Unavailable

PANEL, FR. TRUNK

81131-MCA-700

Unavailable

HINGE, L. TRUNK

81135-MCA-000

Unavailable

COVER, TRUNK (LOWER) *NH1Z* (BLACK-Z)

81141-MCA-000ZA

Unavailable

COVER, TRUNK (LOWER) *R274M* (DURANGO RED METALLIC)

81141-MCA-000ZJ

Unavailable

COVER, TRUNK (LOWER) *RP166M* (KELLY MAGENTA METALLIC)

81141-MCA-000ZL

Unavailable

COVER, TRUNK (LOWER) *R287M* (BLOODSTONE RED METALLIC)

81141-MCA-000ZM

$1,615.79

COVER, TRUNK (LOWER) *R288* (FLARE RED)

81141-MCA-000ZN

Unavailable

COVER, TRUNK (LOWER) *Y181P* (PEARL CHALLENGER BROWN)

81141-MCA-000ZP

$409.80

COVER, TRUNK (LOWER) *NHA29* (ARCTIC WHITE)

81141-MCA-000ZQ

$409.80

MOLDING, R. TRUNK SIDE *NH1Z* (BLACK-Z)

81161-MCA-000ZA

$104.16

MOLDING, R. TRUNK SIDE *R274M* (DURANGO RED METALLIC)

81161-MCA-000ZJ

$101.80

MOLDING, R. TRUNK SIDE *RP166M* (KELLY MAGENTA METALLIC)

81161-MCA-000ZL

$98.79

MOLDING, R. TRUNK SIDE *R287M* (BLOODSTONE RED METALLIC)

81161-MCA-000ZM

$104.05

MOLDING, R. TRUNK SIDE *R288* (FLARE RED)

81161-MCA-000ZN

$98.77

MOLDING, R. TRUNK SIDE *Y181P* (PEARL CHALLENGER BROWN)

81161-MCA-000ZP

$104.16

MOLDING, R. TRUNK SIDE *NHA29* (ARCTIC WHITE)

81161-MCA-000ZQ

$99.48

MOLDING, L. TRUNK SIDE *NH1Z* (BLACK-Z)

81162-MCA-000ZA

$187.74

MOLDING, L. TRUNK SIDE *R274M* (DURANGO RED METALLIC)

81162-MCA-000ZJ

$179.36

MOLDING, L. TRUNK SIDE *RP166M* (KELLY MAGENTA METALLIC)

81162-MCA-000ZL

$98.95

MOLDING, L. TRUNK SIDE *R287M* (BLOODSTONE RED METALLIC)

81162-MCA-000ZM

$179.36

MOLDING, L. TRUNK SIDE *R288* (FLARE RED)

81162-MCA-000ZN

$98.95

MOLDING, L. TRUNK SIDE *Y181P* (PEARL CHALLENGER BROWN)

81162-MCA-000ZP

$179.36

MOLDING, L. TRUNK SIDE *NHA29* (ARCTIC WHITE)

81162-MCA-000ZQ

$179.36

MOLDING, TRUNK CENTER *NH1Z* (BLACK-Z)

81163-MCA-000ZA

$198.75

MOLDING, TRUNK CENTER *R274M* (DURANGO RED METALLIC)

81163-MCA-000ZJ

$198.75

MOLDING, TRUNK CENTER *RP166M* (KELLY MAGENTA METALLIC)

81163-MCA-000ZL

$126.72

MOLDING, TRUNK CENTER *R287M* (BLOODSTONE RED METALLIC)

81163-MCA-000ZM

$198.75

MOLDING, TRUNK CENTER *R288* (FLARE RED)

81163-MCA-000ZN

$189.48

MOLDING, TRUNK CENTER *Y181P* (PEARL CHALLENGER BROWN)

81163-MCA-000ZP

$198.75

MOLDING, TRUNK CENTER *NHA29* (ARCTIC WHITE)

81163-MCA-000ZQ

$189.89

COVER, TRUNK (INNER)

81171-MCA-000

$40.16

RUBBER, TRUNK SEAL

81181-MCA-000

$35.17

RUBBER, FR. PANEL

81183-MCA-000

$24.48

COVER, R. TRUNK LIGHT

81191-MCA-000

$23.49

COVER, L. TRUNK LIGHT

81192-MCA-000

$23.49

RUBBER, TRUNK LIGHT SEAL (LOWER)

81193-MCA-000

$4.43

RUBBER, TRUNK LIGHT SEAL (UPPER)

81194-MCA-000

$7.25

COVER, TRUNK CATCH

81309-MCA-000

$62.75

ROD, TRUNK STRIKER

81328-MCA-780

$10.35

OUTER, R. TRUNK POCKET

82111-MCA-000

$58.75

INNER, R. TRUNK POCKET

82112-MCA-000

$36.18

LID, R. TRUNK POCKET

82120-MCA-000

$30.80

RUBBER A, TRUNK POCKET SEAL

82130-MCA-300

$2.85

RUBBER B, TRUNK POCKET SEAL

82135-MCA-300

$1.49

DAMPER, TRUNK POCKET

82140-MCA-000

$6.90

SPRING, TRUNK POCKET

82150-MCA-000

$4.69

LEVER, R. TRUNK POCKET

82160-MCA-000

$22.51

HINGE, R. TRUNK POCKET

82170-MCA-000

$20.89

GEAR, TRUNK POCKET DAMPER

82180-MCA-000

$19.51

OUTER, L. TRUNK POCKET

82211-MCA-000

$58.77

INNER, L. TRUNK POCKET

82212-MCA-000

$36.18

LID, L. TRUNK POCKET

82220-MCA-000

$25.10

LEVER, L. TRUNK POCKET

82260-MCA-000

$21.22

HINGE, L. TRUNK POCKET

82270-MCA-000

$19.69

BODY, R. ARMREST

82310-MCA-000

$53.85

COVER A, R. ARMREST

82320-MCA-000

Unavailable

COVER B, R. ARMREST *NH1* (BLACK)

82330-MCA-000ZA

$38.87

CUSHION, R. ARMREST *NH1* (BLACK)

82340-MCA-000ZA

$54.33

RUBBER A, R. ARMREST

82350-MCA-000

$4.66

RUBBER B, ARMREST

82360-MCA-000

Unavailable

BODY, L. ARMREST

82410-MCA-000

Unavailable

COVER A, L. ARMREST

82420-MCA-000

Unavailable

COVER B, L. ARMREST *NH1* (BLACK)

82430-MCA-000ZA

$38.87

CUSHION, L. ARMREST *NH1* (BLACK)

82440-MCA-000ZA

Unavailable

RUBBER A, L. ARMREST

82450-MCA-000

$5.44

EMBLEM, RR. TRUNK (TYPE1) (HONDA) This part replaces 87111-MCA-010ZA.

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (TYPE1) (HONDA)

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (TYPE1) (HONDA) This part replaces 87111-MCA-A00ZB.

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (TYPE1) (HONDA) This part replaces 87111-MCA-A20ZA.

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (TYPE1) (HONDA) This part replaces 87111-MCA-A20ZB.

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (TYPE1) (HONDA) This part replaces 87111-MCA-A20ZC.

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (HONDA) This part replaces 87111-MCA-A20ZD.

87111-MCA-A60

$24.12

EMBLEM, RR. TRUNK (TYPE1) (HONDA) This part replaces 87111-MCA-A20ZE.

87111-MCA-505

$37.65

EMBLEM, RR. TRUNK (HONDA)

87111-MCA-A60

$24.12

SCREW (5X12)

90104-964-000

$2.34

SCREW, PAN (6X11)

90106-KY2-701

$4.24

BOLT, FLANGE (6MM)

90111-GE2-760

$5.44

WASHER, TANK SETTING

90136-428-870

$1.56

SCREW, TAPPING (5X12)

90140-MCA-000

$1.49

NUT, CLIP

90301-GE0-000

$2.13

NUT, PLATE (6MM)

90302-MN5-300

$2.07

COLLAR, TRUNK MOUNTING

90505-MCA-000

$6.56

CLIP, WIRE HARNESS

91405-MG1-000

$2.31

SCREW-WASHER (6X12)

93893-06012-07

$1.49

SCREW, TAPPING (5X16)

93901-25380

$1.49

SCREW, TAPPING (3X10)

93903-22210

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (5X8)

93903-25080

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

RUBBER C, TRUNK POCKET SEAL

82190-MCA-000

$6.38
