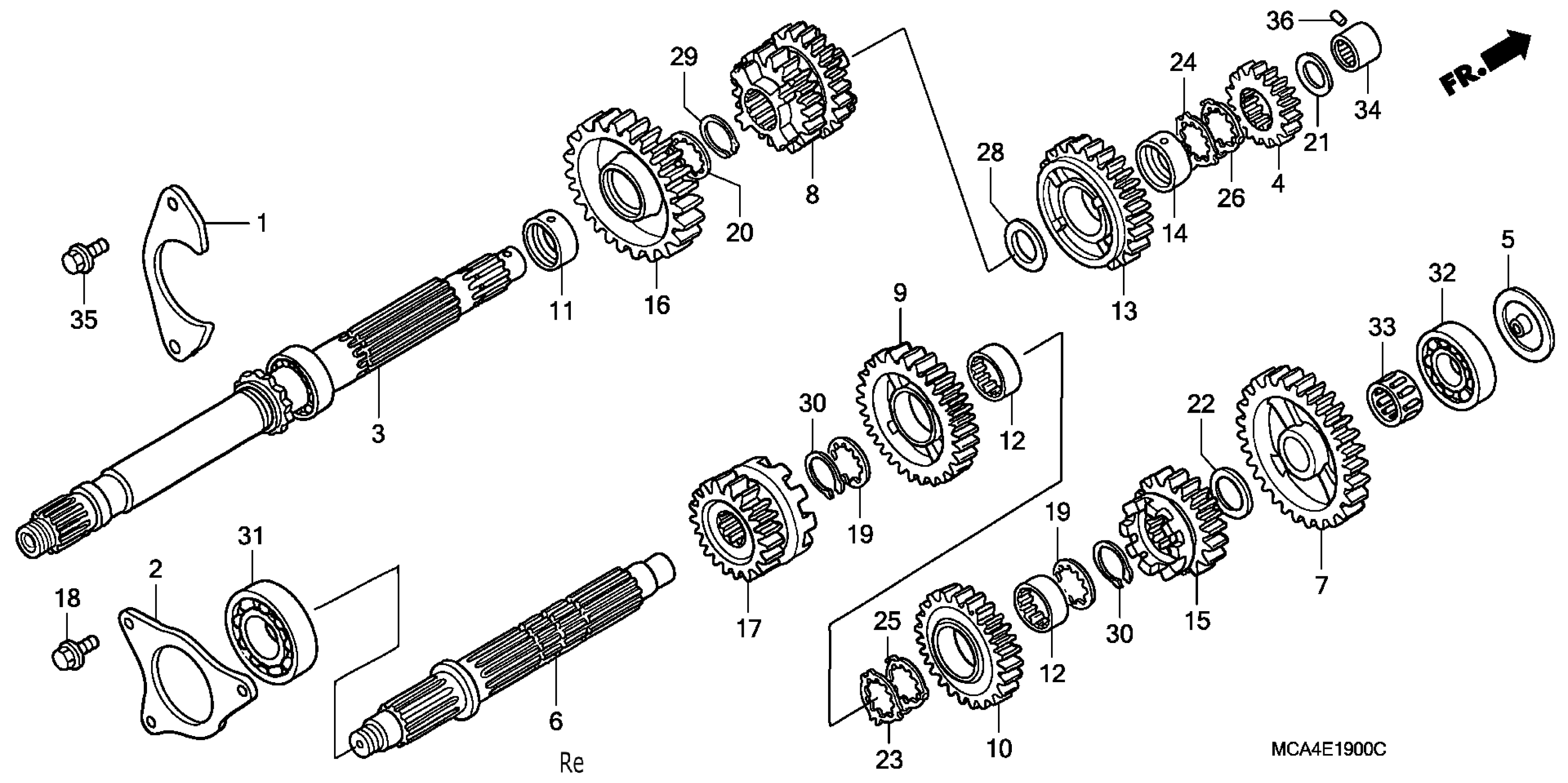

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 TRANSMISSION Diagram

#

Description
Price

1

PLATE A, BEARING SETTING

23161-MCA-010

$10.56

2

PLATE B, BEARING SETTING

23162-MCA-010

$22.69

3

SHAFT, MAIN

23210-MCA-780

$336.02

4

GEAR, MAINSHAFT FIRST (16T)

23212-MCA-000

$66.36

5

PLATE, COUNTERSHAFT BEARING

23219-MCA-000

$5.52

6

COUNTERSHAFT

23221-MCA-010

$142.33

7

GEAR, COUNTERSHAFT FIRST (38T)

23421-MCA-000

$135.56

8

GEAR, MAINSHAFT SECOND & THIRD (22T/29T)

23431-MCA-000

$157.61

9

GEAR, COUNTERSHAFT SECOND (32T)

23441-MCA-000

$129.98

10

GEAR, COUNTERSHAFT THIRD (31T)

23461-MCA-000

$129.98

11

COLLAR (32MM)

23462-MCA-000

$15.48

12

COLLAR, SPLINE (30X14)

23463-MCA-000

$14.82

13

GEAR, MAINSHAFT FOURTH (32T)

23471-MCA-000

$132.80

14

COLLAR (28MM)

23472-MCA-000

$15.23

15

GEAR, COUNTERSHAFT FOURTH (27T)

23481-MCA-A20

$137.34

16

GEAR, MAINSHAFT FIFTH (35T)

23491-MCA-000

$149.30

17

GEAR, COUNTERSHAFT FIFTH (24T)

23501-MCA-000

$128.61

18

BOLT, FLANGE (6X20)

90118-KY1-000

$3.16

19

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

20

WASHER, SPLINE (32X17X1.667)

90452-MCA-000

$2.75

21

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

22

WASHER C, THRUST (25MM)

90459-357-000

$3.60

23

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

24

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

25

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

26

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

28

WASHER, THRUST (28MM)

90554-MCA-000

$2.39

29

CIRCLIP (32MM)

90604-MCA-780

$3.46

30

CIRCLIP (30MM)

90604-MM5-000

$4.48

31

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

31

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

31

BEARING, RADIAL BALL (28X75X19) (NTN)

91004-MCA-003

$40.41

32

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

32

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

32

BEARING, RADIAL BALL (28X75X19) (NTN)

91004-MCA-003

$40.41

33

BEARING, NEEDLE (25X29X17) (NTN)

91005-MCA-003

$10.36

34

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05

35

BOLT, FLANGE (8X18)

95701-08018-08

$1.58

36

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21
