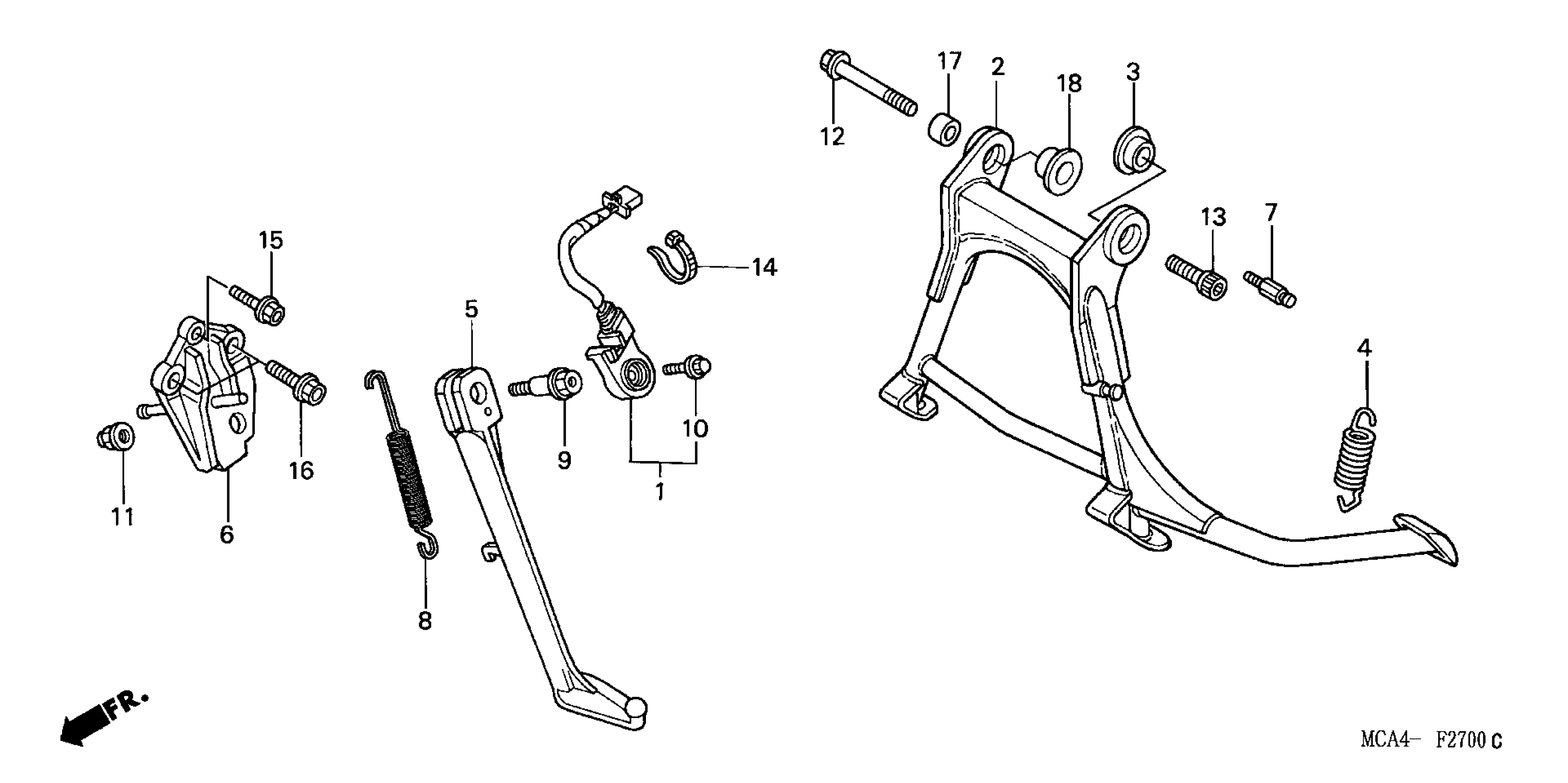

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35070-MCA-000

$57.49

2

STAND, MAIN This part replaces 50500-MCA-A00.

50500-MCA-S40

$140.87

2

STAND, MAIN

50500-MCA-S40

$140.87

2

STAND, MAIN This part replaces 50500-MCA-305.

50500-MCA-S40

$140.87

3

COLLAR, MAIN STAND

50503-MCA-000

$8.11

4

SPRING A, MAIN STAND

50525-MCA-000

$9.00

5

BAR, SIDE STAND

50532-MCA-000

$40.98

6

BRACKET, SIDE STAND

50535-MCA-000

$45.09

7

HOOK, MAIN STAND SPRING

50538-ML7-000

$7.29

8

SPRING, SIDE STAND

50540-MAT-000

$7.06

9

BOLT, SIDE STAND PIVOT

90108-MR5-000

$7.64

10

BOLT, SPECIAL (6X16)

90147-MCE-950

$0.51

11

NUT, SIDE STAND

90203-MF9-710

$3.50

12

BOLT, FLANGE (10X60) (LEFT HAND THREAD)

90601-MCA-A00

$2.92

13

BOLT, SOCKET (10X28)

90602-MCA-A00

$2.62

14

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

15

BOLT, FLANGE (8X30)

96300-08030-07

Unavailable

16

BOLT, FLANGE (10X35)

96400-10035-07

$2.80

17

COLLAR, L. FR. ENGINE HANGER

50355-MS9-750

$6.25

18

COLLAR, R. MAIN STAND

50504-MCA-000

$8.40
