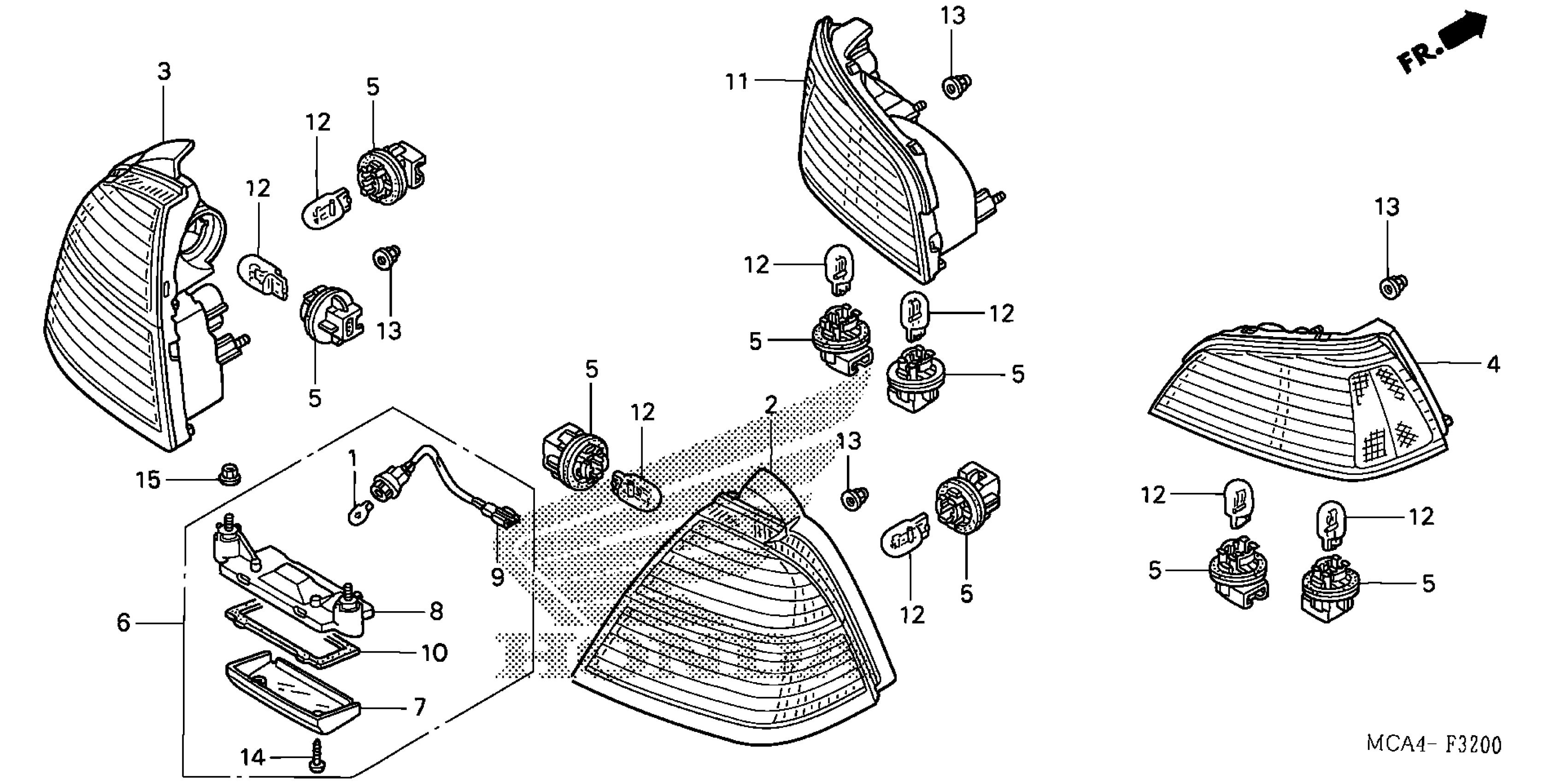

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 REAR COMBINATION LIGHT Diagram

#

Description

Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

2

HOUSING, R. COMBINATION LIGHT

33510-MCA-671

$109.87

3

HOUSING, L. COMBINATION LIGHT

33560-MCA-671

$109.87

4

HOUSING, R. TRUNK TAIL

33710-MCA-671

$176.66

5

SOCKET

33720-GZ9-003

$12.97

6

LIGHT ASSY., LICENSE (12V 5W)

33720-MCA-003

$57.69

7

LENS, LICENSE LIGHT

33726-MT2-004

$5.63

8

BASE, LICENSE LIGHT

33727-MCA-003

$23.30

9

SOCKET, LICENSE LIGHT

33728-MCA-000

Unavailable

10

GASKET, LICENSE LIGHT SEAL

33729-MN5-003

$11.93

11

HOUSING, L. TRUNK TAIL

33760-MCA-671

$176.66

12

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$4.01

13

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

14

SCREW, TAPPING (4X20)

93901-34520

$1.49

15

NUT, FLANGE (5MM)

94050-05080

$1.49
