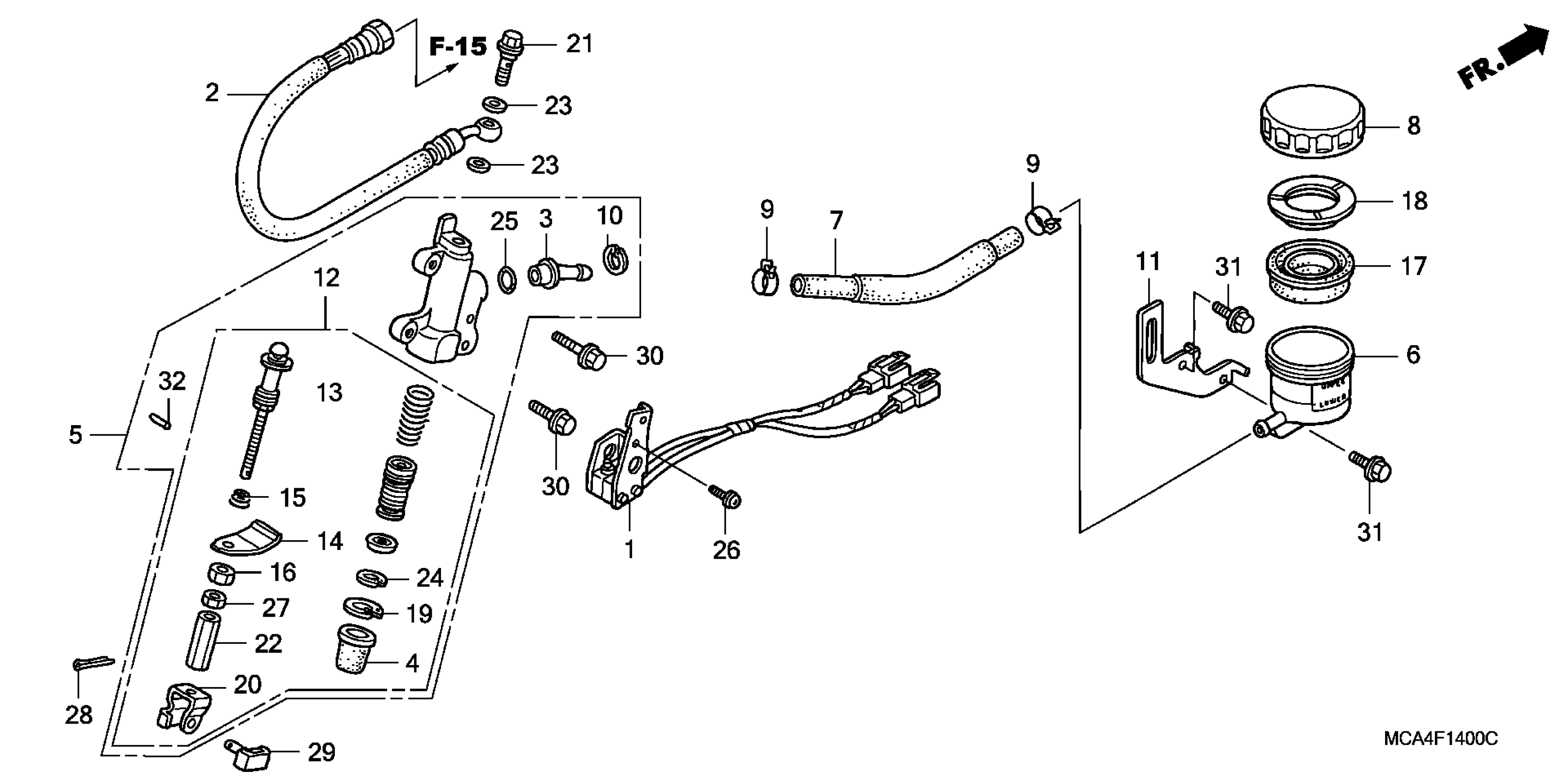

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 REAR BRAKE MASTER CYLINDER Diagram

SWITCH SET, RR. STOP & CRUISE

35300-MCA-000

$76.42

MAIN HOSE A, RR. BRAKE

43310-MCA-003

$24.66

CONNECTOR

43503-KCY-671

$11.13

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN) This part replaces 43510-MCA-006.

43510-MCA-305

$234.37

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN) This part replaces 43510-MCA-016.

43510-MCA-305

$234.37

CUP, MASTER CYLINDER OIL

43511-MCA-006

$4.85

HOSE, RR. MASTER CYLINDER

43512-MCA-006

$6.05

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

STAY, MASTER CYLINDER OIL CUP

43518-MCA-000

$78.30

PISTON SET, RR. MASTER CYLINDER This part replaces 43520-MCA-006.

43520-MCA-016

$39.27

PISTON SET, RR. MASTER CYLINDER

43520-MCA-016

$39.27

ROD, PUSH

43530-MCA-006

$11.80

PLATE, SWITCH

43537-MCA-006

$5.93

SPRING, SWITCH

43538-MCA-006

$1.49

NUT, SWITCH PLATE (NISSIN)

43539-MN5-006

$4.11

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-500-013

$4.90

JOINT, BRAKE ROD

46504-MT4-006

$9.92

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, SPECIAL (8MM)

90315-MCA-006

$1.49

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP, PISTON

90651-MBG-006

$2.85

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

PIN, SPRING (2X10)

94305-20102

$1.49
