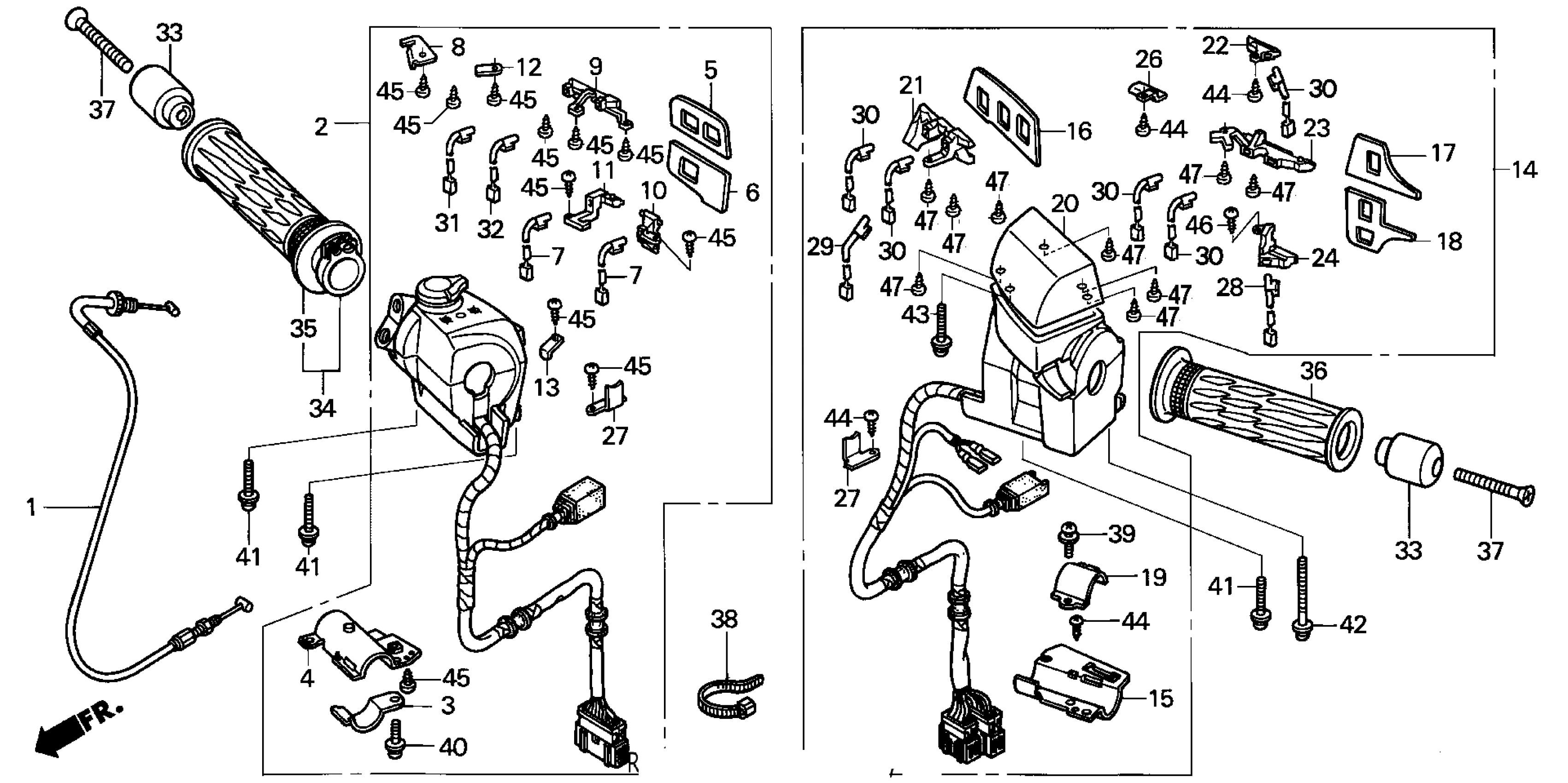

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 HANDLE SWITCH (2) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCA-000

$17.47

2

SWITCH ASSY., STARTER & STOP & CRUISE

35130-MCA-A21

$292.36

3

PLATE A, STOP SWITCH SETTING

35132-MCA-003

$4.81

4

PLATE B, STOP SWITCH SETTING

35133-MCA-003

$5.04

5

PLATE, ORNAMENT (A)

35134-MCA-A20

$2.80

6

PLATE, ORNAMENT (B)

35135-MCA-A20

$2.80

7

BULB

35139-MCA-A20

$9.12

8

CLAMP, WIRE (A)

35141-MCA-A20

$1.10

9

LENS, R. (UPPER)

35142-MCA-A20

$14.45

10

LENS, R. (LOWER) (A)

35143-MCA-A20

$14.45

11

LENS, R. (LOWER) (B)

35144-MCA-A20

$14.45

12

CLAMP, WIRE (B)

35145-MCA-A20

$1.10

13

CLAMP, WIRE (D)

35146-MCA-A20

$1.10

14

SWITCH ASSY., TURN SIGNAL & AUDIO

35200-MCA-A21

Unavailable

15

PLATE SET A, TURN SIGNAL

35202-MCA-003

$5.17

16

PLATE, ORNAMENT (A)

35203-MCA-A20

$4.47

17

PLATE, ORNAMENT (C)

35205-MCA-A20

$2.93

18

PLATE, ORNAMENT (D)

35206-MCA-A20

$4.55

19

PLATE SET B, TURN SIGNAL

35207-MCA-003

$2.86

20

CASE, AUDIO (UPPER)

35211-MCA-A20

$12.29

21

LENS, AUDIO

35212-MCA-A20

$23.16

22

LENS, TURN SIGNAL (A)

35213-MCA-A20

$14.45

23

LENS, TURN SIGNAL (B)

35214-MCA-A20

$14.45

24

LENS (LOWER)

35215-MCA-A20

$14.45

26

CLAMP, WIRE (UPPER)

35217-MCA-A20

$1.00

27

CLAMP, WIRE

35218-MCA-A20

$1.10

28

BULB (T3) (A)

35219-MCA-A20

$9.81

29

BULB (T3) (B)

35220-MCA-A20

$9.81

30

BULB (T3) (B)

39208-MCA-003

$9.80

31

BULB (T3) (C)

39206-MCA-013

$9.80

32

BULB (T3) (B)

39208-MCA-003

$9.80

33

WEIGHT, HANDLEBAR

53105-MK4-620

$13.49

34

GRIP, R.

53145-MCA-000

$30.67

34

GRIP, R. This part replaces 53145-MJG-305.

53145-MCA-000

$30.67

35

GRIP, R. HANDLE

53165-MCA-000

$14.87

36

GRIP, L. HANDLE

53166-MCA-000

$13.97

36

GRIP, L. HANDLE This part replaces 53166-MJG-305.

53166-MCA-000

$13.97

37

SCREW, OVAL (6X65)

90191-KBG-000

$4.60

38

BAND, WIRE (95MM)

90650-KV6-003

$2.90

39

SCREW-WASHER (5X10)

93892-05010-08

$1.04

40

SCREW-WASHER (5X20)

93892-05020-08

$1.03

41

SCREW-WASHER (5X25)

93892-05025-07

$0.99

42

SCREW-WASHER (5X45)

93892-05045-07

$1.17

43

SCREW-WASHER (5X32)

93893-05032-08

Unavailable

44

SCREW, TAPPING (3X8)

93901-32120

$0.75

45

SCREW, TAPPING (3X10)

93901-32220

$0.83

47

SCREW, TAPPING (3X10)

93901-32210

$3.01
