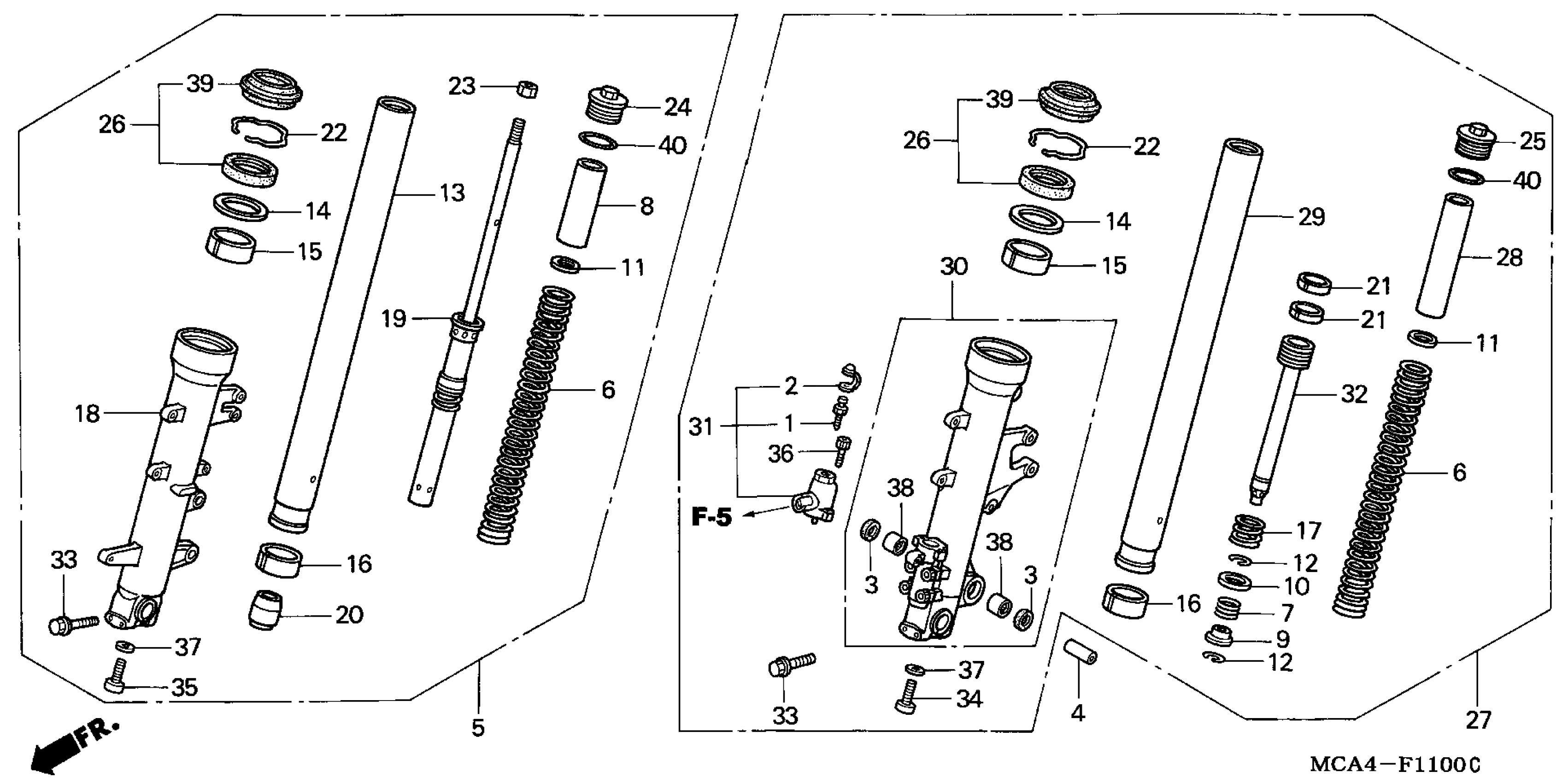

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 FRONT FORK Diagram

#

Description
Price

1

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

2

CAP, BLEEDER

43353-461-771

Unavailable

3

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.83

4

COLLAR, PIVOT

45452-MZ2-000

$9.24

5

FORK ASSY., R. FR.

51400-MCA-003

$702.47

6

SPRING, FR. FORK

51401-MCA-003

$36.74

7

SPRING, OIL LOCK

51402-MB7-611

$5.12

8

COLLAR, SPRING

51402-MCA-003

$4.51

9

VALVE, OIL LOCK

51403-MCA-003

$4.37

10

SEAT, SPRING

51404-MB7-611

$4.87

11

SEAT, SPRING

51405-KA4-711

$5.95

12

RING, STOPPER

51405-MB7-611

$2.69

13

PIPE, R. FR. FORK

51410-MCA-003

$245.04

14

RING, BACK-UP

51412-KZ3-003

$8.68

15

BUSH, GUIDE

51414-MCA-003

$9.91

16

BUSH, SLIDER

51415-MCA-003

$10.17

17

SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)

51416-KA4-831

$13.07

18

CASE, R. (LOWER) (SHOWA)

51420-MCA-003

Unavailable

19

DAMPER, FR. This part replaces 51430-MCA-003.

51430-MCA-013

$123.01

19

DAMPER, FR.

51430-MCA-013

$123.01

20

PIECE, OIL LOCK

51432-MCA-003

$8.84

21

RING, PISTON

51437-MCA-003

$7.26

22

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.88

23

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

24

BOLT, FR. FORK

51454-MBR-003

$29.70

25

BOLT, FR. FORK

51454-MCA-003

$16.29

26

SEAL SET, FR. FORK

51490-MCA-003

$33.15

27

FORK ASSY., L. FR. (CONTACT MC TECHLINE 800-421-1 900 OPTION #9 TO ORDER)

51500-MCA-781

$836.44

28

COLLAR B, SPRING

51502-MCA-003

$4.51

29

PIPE, L. FR. FORK

51510-MCA-003

$145.28

30

CASE ASSY., L. (LOWER) (CONTACT MC TECHLINE 800-421-1 900 OPTION #9 TO ORDER)

51520-MCA-003

Unavailable

31

CASE, PLUNGER

51530-MCA-003

$57.66

32

PIPE, SEAT

51540-MCA-003

$208.75

33

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

34

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

35

BOLT, SOCKET (8X27)

90116-383-721

Unavailable

36

BOLT, SOCKET (5X18)

90118-MCA-003

$4.10

37

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

38

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$35.60

39

DUST SEAL

91254-MCA-003

$7.62

40

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.71
