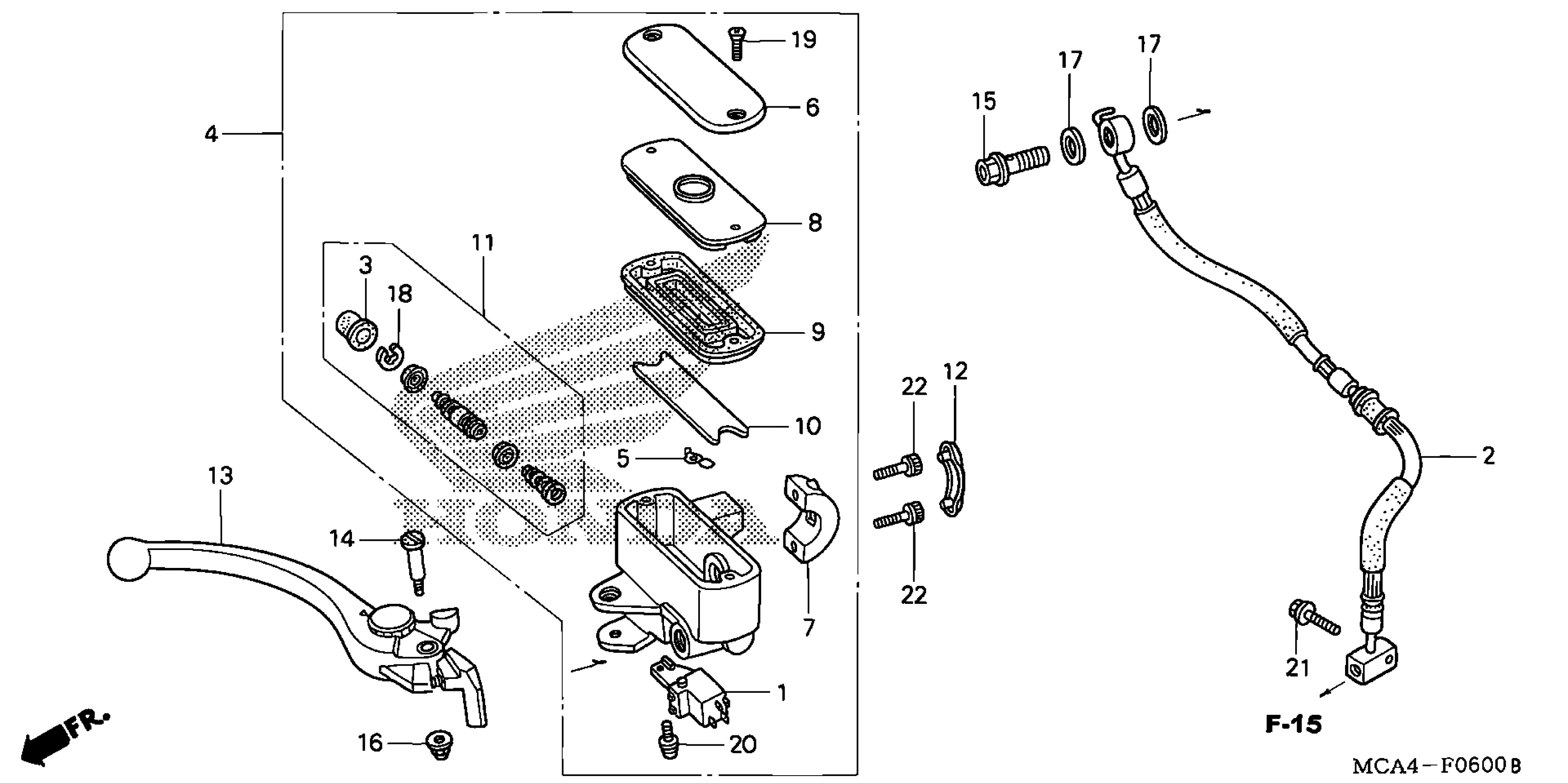

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP & CRUISE

35340-MCA-S41

$15.66

1

SWITCH ASSY., FR. STOP & CRUISE This part replaces 35340-MCA-000.

35340-MCA-S41

$15.66

2

MAIN HOSE A, FR. BRAKE

45124-MCA-003

$87.10

3

BOOT

45504-410-003

$12.16

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MCA-S41

$245.93

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MCA-006.

45510-MCA-S41

$245.93

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MCA-305.

45510-MCA-S41

$245.93

5

PROTECTOR

45512-MA6-006

$4.28

6

CAP, MASTER CYLINDER

45513-MAM-A61

$33.75

7

HOLDER, MASTER CYLINDER

45517-MAM-A62

$14.27

8

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

9

DIAPHRAGM

45520-MM5-006

$15.12

10

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

11

PISTON SET, FR. MASTER CYLINDER

45530-MCA-006

$18.68

12

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

13

LEVER ASSY., R. HANDLE

53170-MCA-006

$47.83

13

LEVER ASSY., R. HANDLE This part replaces 53170-MCA-305.

53170-MCA-006

$47.83

14

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

15

BOLT, OIL (10X22)

90145-MS9-612

$7.54

16

NUT, CAP (6MM)

90202-ZV0-000

$2.91

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

CIRCLIP

90651-MA5-671

$2.66

19

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

19

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

20

SCREW-WASHER (4X12)

93893-04012-07

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

21

BOLT, FLANGE (6X25)

95801-06025-07

$1.72

22

BOLT, SOCKET (6X20)

96600-06020-17

$1.49
