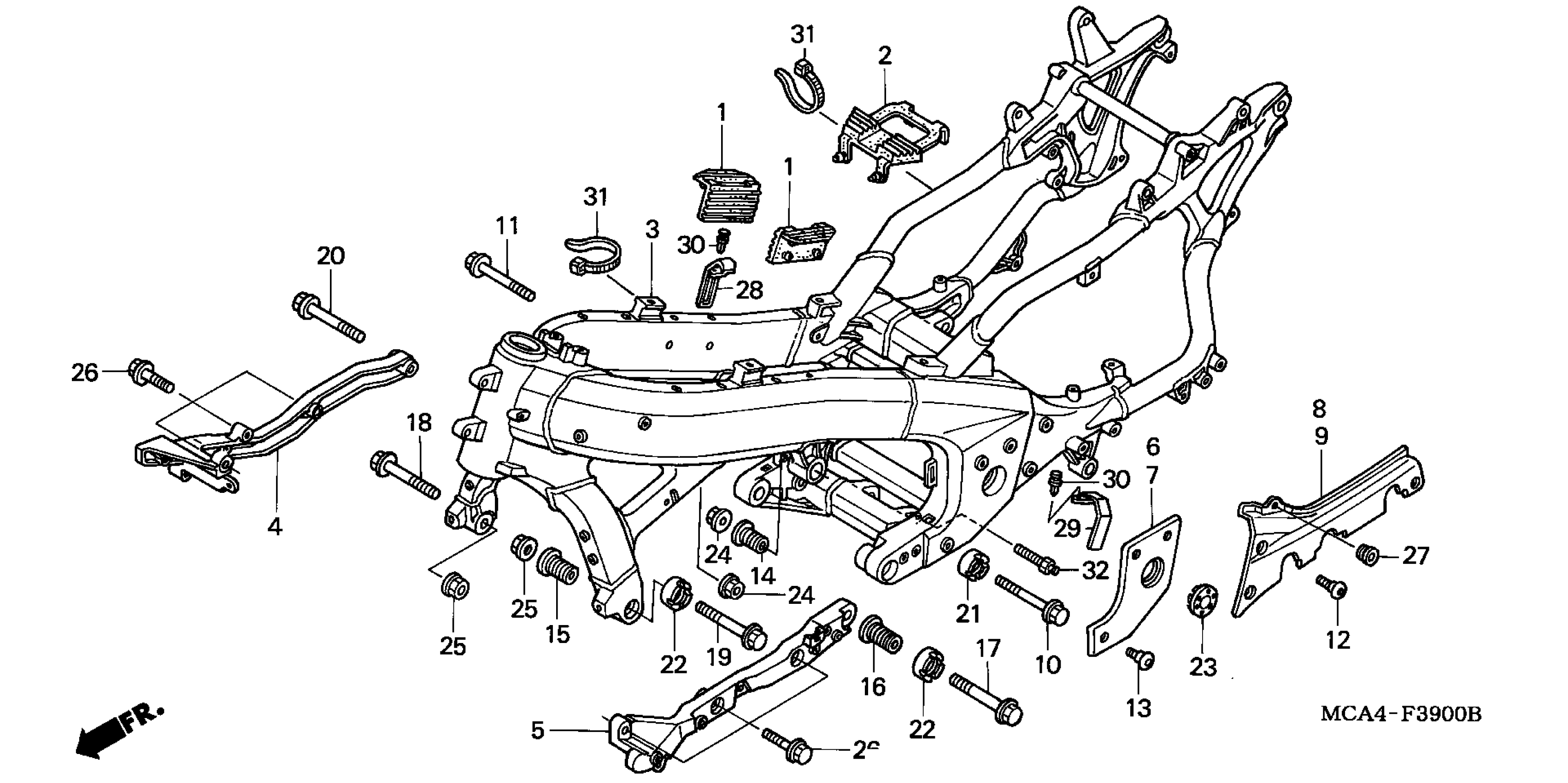

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 FRAME Diagram

#

Description
Price

1

CUSHION, FR. FUEL TANK

17611-MCA-000

$11.14

2

CUSHION, FUEL TANK CENTER

17614-MCA-000

$8.22

3

FRAME *NH456M* (SILVER METALLIC) This part replaces 50100-MCA-030ZA.

50100-MCA-307ZA

Unavailable

3

FRAME *NH456M* (SILVER METALLIC) This part replaces 50100-MCA-040ZA.

50100-MCA-307ZA

Unavailable

3

FRAME *NH456M* (SILVER METALLIC) This part replaces 50100-MCA-305ZA.

50100-MCA-307ZA

Unavailable

3

FRAME *NH456M* (SILVER METALLIC)

50100-MCA-307ZA

Unavailable

4

BEAM, R. ENGINE SUPPORT This part replaces 50351-MCA-000.

50351-MCA-S40

$147.93

5

BEAM, L. ENGINE SUPPORT

50352-MCA-000

$159.13

6

COVER, R. PIVOT PLATE *NH248R* (GRAY)

50410-MCA-000ZA

$6.01

7

COVER, L. PIVOT PLATE *NH248R* (GRAY)

50415-MCA-000ZA

$6.01

8

COVER, R. PILLION STEP HOLDER *NH454M* (ECLIPSE SILVER METALLIC)

50740-MCA-000ZA

Unavailable

9

COVER, L. PILLION STEP HOLDER *NH454M* (ECLIPSE SILVER METALLIC)

50741-MCA-000ZA

$70.09

10

BOLT, FLANGE (10X85)

90101-KK6-000

$6.62

11

BOLT, FLANGE (10X62)

90101-MBB-000

$3.75

12

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

13

SCREW, PAN (5X13)

90112-MBS-000

$2.20

14

BOLT, ADJUSTING (M20-43.5)

90116-MCA-000

$12.80

15

BOLT, ADJUSTING (M22-47)

90117-MCA-000

$15.39

16

BOLT, ADJUSTING (M22-40)

90126-MCA-000

$11.10

17

BOLT, FLANGE (12X92)

90127-MCA-000

$4.52

18

BOLT, FLANGE (12X72)

90128-MCA-000

$10.90

19

BOLT, FLANGE (12X92)

90129-MCA-000

$11.03

20

BOLT, FLANGE (12X84)

90166-SZ3-000

$11.91

21

NUT, LOCK (20MM)

90201-MW0-000

$9.75

22

NUT, LOCK This part replaces 90310-MCA-000.

90310-MCA-010

$8.99

23

CAP, PIVOT

90312-MCA-000

$7.21

24

NUT, FLANGE (10MM)

94050-10000

$1.41

25

NUT, FLANGE (12MM)

94050-12000

$0.94

26

BOLT, FLANGE (10X40)

96300-10040-00

$2.80

27

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.38

28

COVER,R W*NH466M* This part replaces 83613-MCA-000ZB.

83613-MCA-S40ZC

Unavailable

29

COVER, L. WELD BEAD *NH466M* (PRESTO SILVER METALLIC) COVERS WELD PIECE ON FRAME

83713-MCA-000ZB

$24.07

30

CLIP, PANEL FIXING

90671-MCA-000

$1.86

31

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

32

HOOK, MAIN STAND SPRING

50538-MCA-000

$5.37
