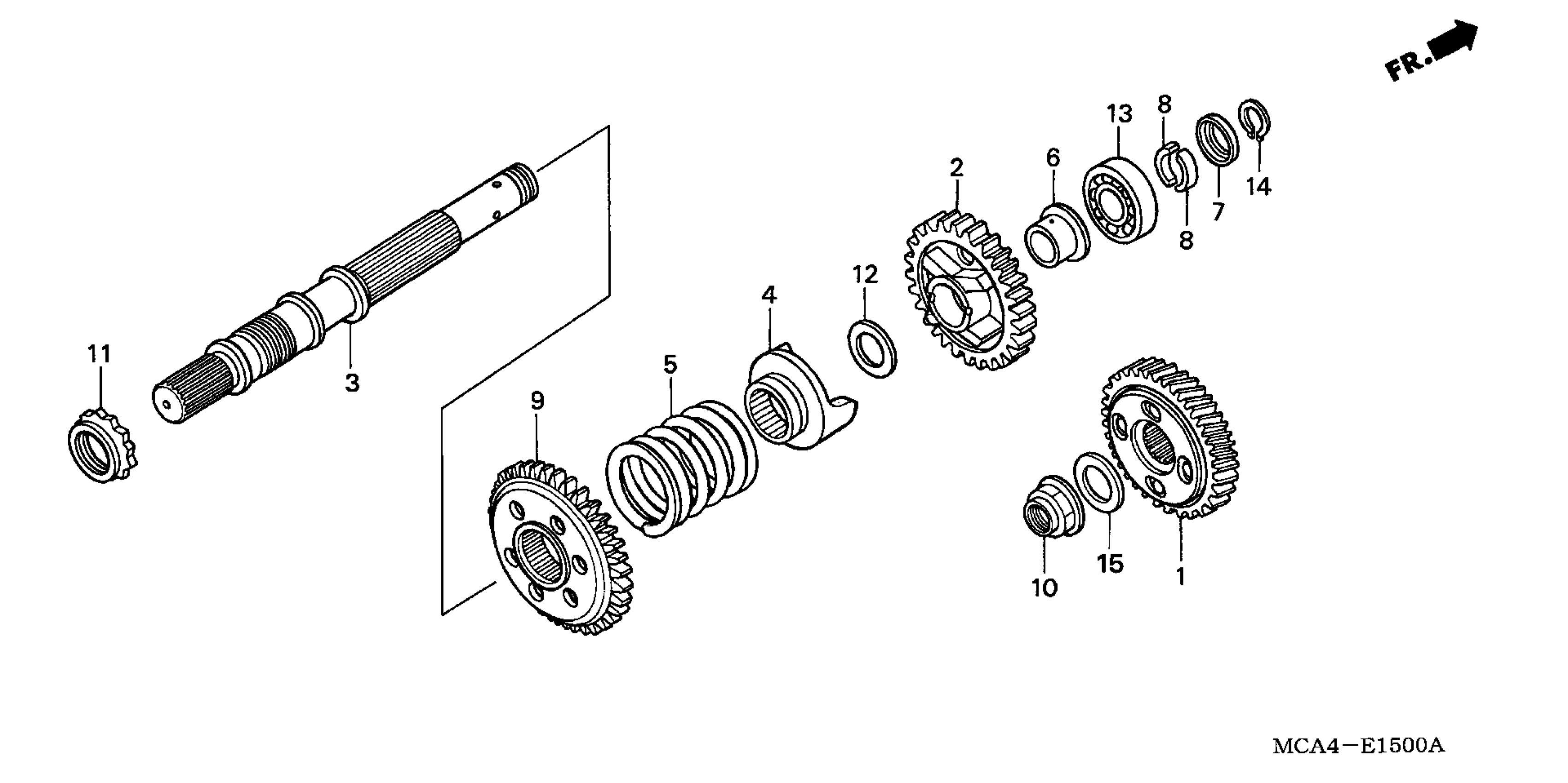

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 FINAL SHAFT Diagram

GEAR, FINAL DRIVE (35T)

23500-MCA-A20

$220.00

GEAR, FINAL DRIVEN (36T)

23521-MCA-000

$129.10

SHAFT, FINAL GEAR

23611-MCA-780

Unavailable

LIFTER, FINAL DAMPER

23721-MCA-780

$38.93

SPRING, FINAL DAMPER

23732-MCA-000

$43.77

COLLAR (22X26X27.1)

23733-MN5-000

$9.61

RETAINER, FINAL SHAFT

23741-MN5-000

$5.03

WASHER, SPRING STOPPER

23742-MN5-000

$11.87

GEAR, REVERSE DRIVEN (45T)

28178-MCA-000

$117.33

NUT, SPECIAL (22MM)

90205-MCA-780

$11.56

NUT, LOCK (30MM)

90241-MB0-000

$21.10

WASHER (22.2X35X2.6)

90498-MN5-000

$8.49

BEARING, RADIAL BALL (22X52X15)

91003-MCA-003

$20.43

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

WASHER (22.1X36X2.6)

90498-MEC-000

$3.98
