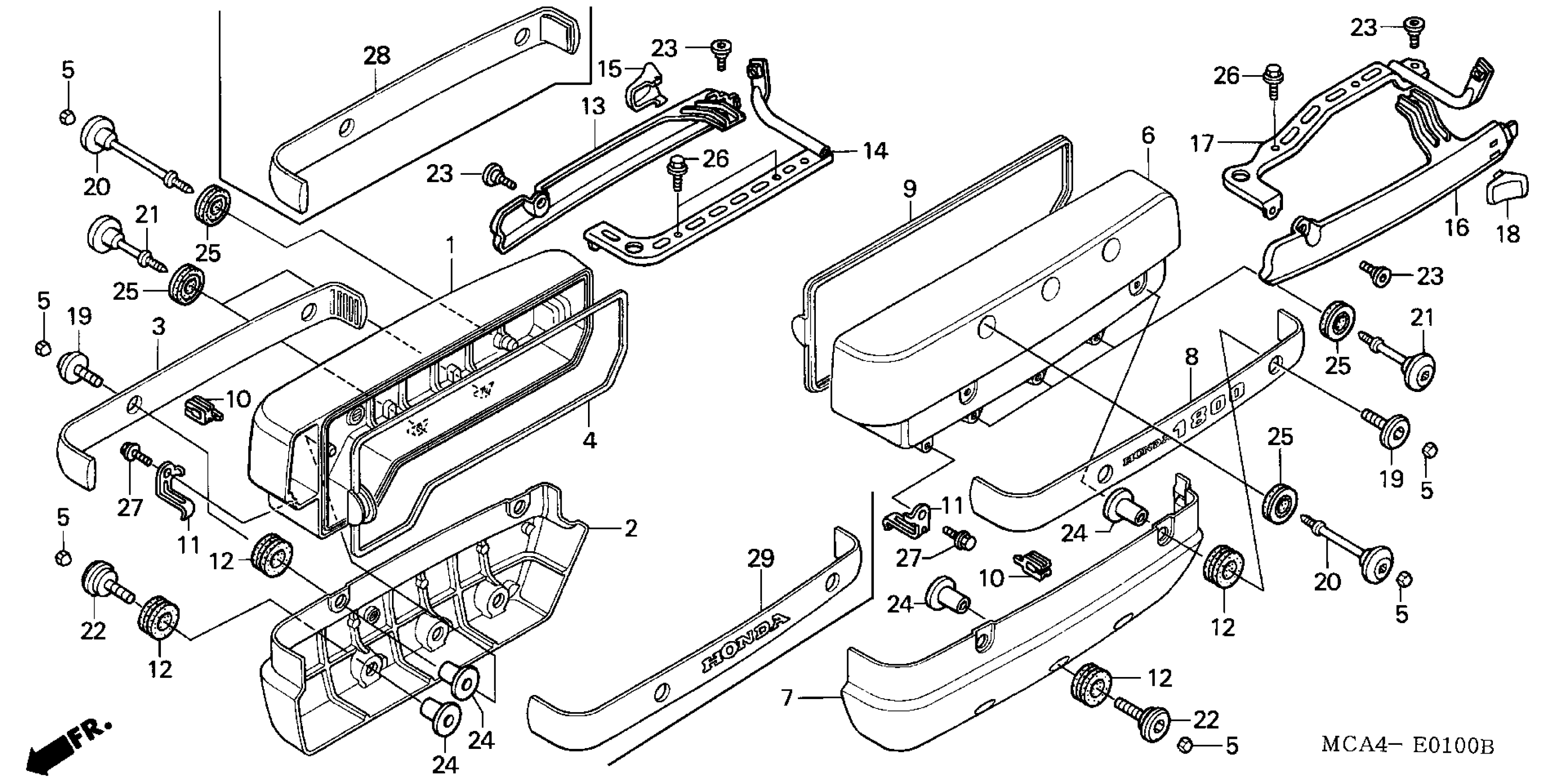

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, R. CYLINDER HEAD

12311-MCA-000

$372.22

2

COVER, R. CYLINDER HEAD SIDE

12321-MCA-000

$190.30

4

GASKET, R. CYLINDER HEAD COVER

12391-MCA-000

$26.27

5

PLUG, HEX. (6MM)

12392-MJ0-000

$4.20

6

COVER, L. CYLINDER HEAD

12411-MCA-000

$343.43

7

COVER, L. CYLINDER HEAD SIDE

12421-MCA-000

$190.28

9

GASKET, L. CYLINDER HEAD COVER

12491-MCA-000

$26.27

10

CLAMP, IGNITION WIRE

32114-MCA-000

$2.95

11

GUIDE, IGNITION WIRE

32115-MCA-000

$4.19

12

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$4.94

13

COVER, R. INJECTION

83515-MCA-000

$386.04

14

STAY, R. INJECTION COVER

83516-MCA-000

Unavailable

15

SPOILER, R. SIDE

83530-MCA-000

$5.64

16

COVER, L. INJECTION

83565-MCA-000

$386.04

17

STAY, L. INJECTION COVER

83566-MCA-000

$117.81

18

SPOILER, L. SIDE

83580-MCA-000

$5.64

19

BOLT, SOCKET SPECIAL (6X19)

90016-MCA-780

$2.80

20

BOLT, HEAD COVER

90017-MCA-000

$4.29

21

BOLT, HEAD COVER

90018-MCA-000

$4.54

22

BOLT, HEAD COVER

90019-MCA-780

$3.77

23

SCREW, PAN (6X11)

90106-KY2-701

$3.95

24

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.09

25

RUBBER, MOUNTING

90543-MV9-670

$4.60

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

26

BOLT, FLANGE (6X12) This part replaces 95801-06012-08.

95701-06012-08

$1.48

27

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

28

EMBLEM, R. CYLINDER HEAD COVER

12322-MCA-A20

$64.77

29

EMBLEM, L. CYLINDER HEAD COVER

12422-MCA-A20

$64.77
