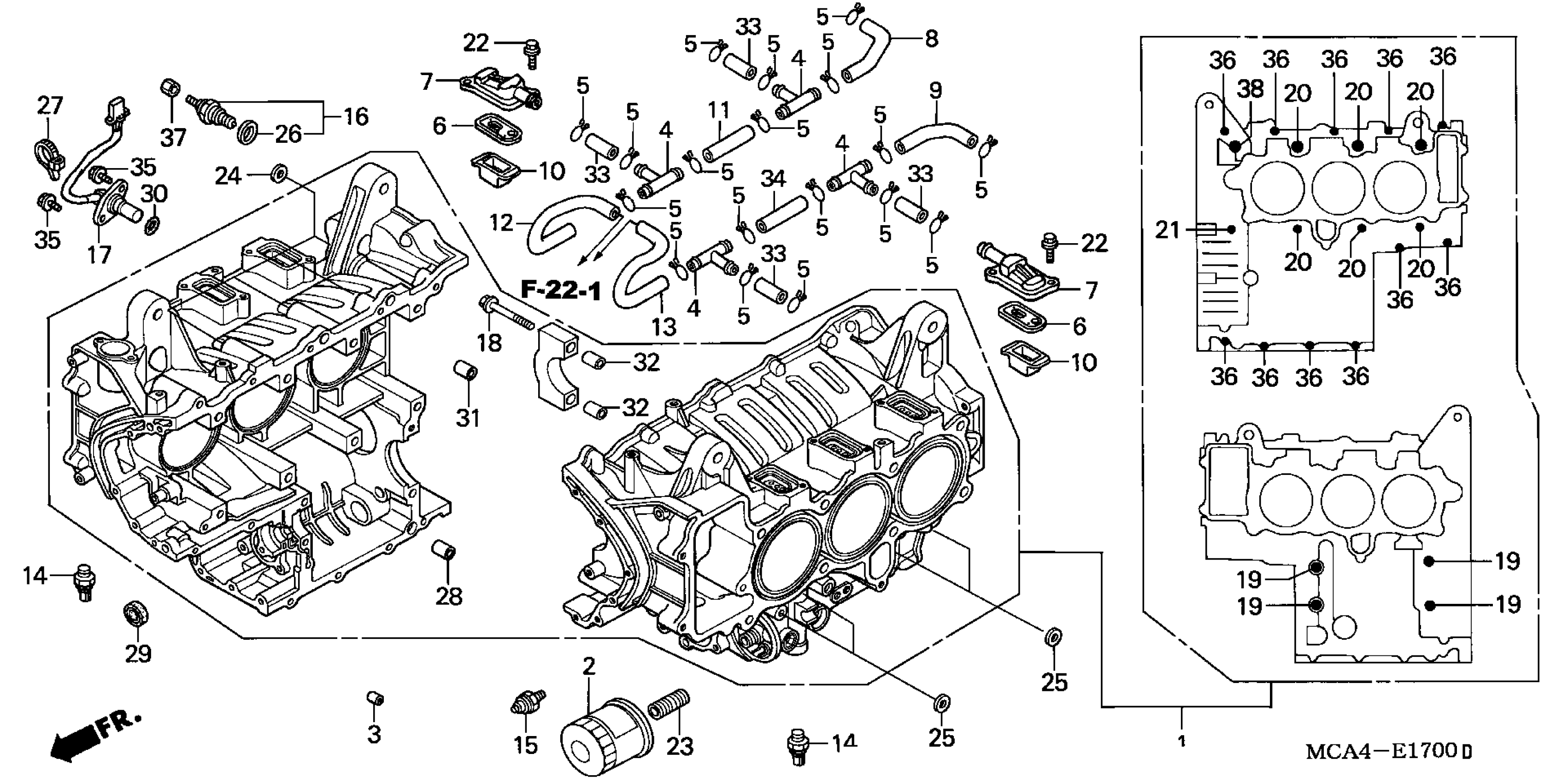

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

04911-MCA-W01

$1,808.20

1

BLOCK ASSY., CYLINDER This part replaces 11000-MEC-000.

04911-MCA-W01

$1,808.20

1

BLOCK ASSY., CYLINDER This part replaces 11000-MEC-010.

04911-MCA-W01

$1,808.20

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-000.

15410-MFJ-D02

$13.80

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$13.80

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

3

ORIFICE (2.3MM)

15515-MCA-000

$4.52

4

JOINT, BREATHER THREE WAY

15772-KK0-000

$11.04

5

CLIP, BREATHER TUBE

17316-611-000

$8.28

6

VALVE, REED

18601-KGB-611

$24.13

7

COVER, REED VALVE This part replaces 18612-MBA-600.

18612-MBA-601

$13.16

7

COVER, REED VALVE

18612-MBA-601

$13.16

8

TUBE, R. AIR IN.

18651-MCA-780

$8.32

9

TUBE, L. AIR IN.

18652-MCA-000

$6.16

10

PLATE, AIR IN.

18653-MCA-000

$3.06

11

TUBE (12X62)

18655-MCA-000

$3.10

12

TUBE, R. AIR IN.

18662-MCA-000

$1.26

13

TUBE, L. AIR IN.

18663-MCA-000

$8.72

14

SENSOR ASSY., KNOCK

30530-MCA-003

$130.74

15

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

16

SWITCH ASSY., NEUTRAL (TEC)

35600-MM5-003

$16.98

17

SENSOR ASSY., SPEED

37700-MCA-003

$137.41

18

BOLT, UBS (12X77.5)

90003-MEC-000

$5.09

19

BOLT, FLANGE (8X135)

90006-MM5-640

$6.13

20

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$9.61

21

BOLT, FLANGE (10X197)

90011-MEC-000

$3.46

22

BOLT, FLANGE (5X14)

90012-896-750

$1.14

23

BOSS, OIL FILTER

90019-MB0-000

$7.73

24

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.42

25

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

26

WASHER, NEUTRAL

90443-MJ6-000

$1.75

27

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

28

COLLAR (15X20)

90702-371-000

$5.35

29

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$3.77

30

O-RING (18.1X3.6)

91302-MAL-601

$3.28

31

PIN, DOWEL (12X20)

94301-12200

$2.25

32

PIN C, DOWEL (4X6.5)

94303-04065

$2.04

33

BULK HOSE, VACUUM (12X1000) (12X42)

95005-12001-10M

Unavailable

34

BULK HOSE, VACUUM (12X1000) (12X70)

95005-12001-10M

Unavailable

35

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

36

BOLT, FLANGE (6X35)

95701-06035-08

$1.58

38

BOLT, FLANGE (10X120) (SATO)

90009-MEC-000

$3.46
