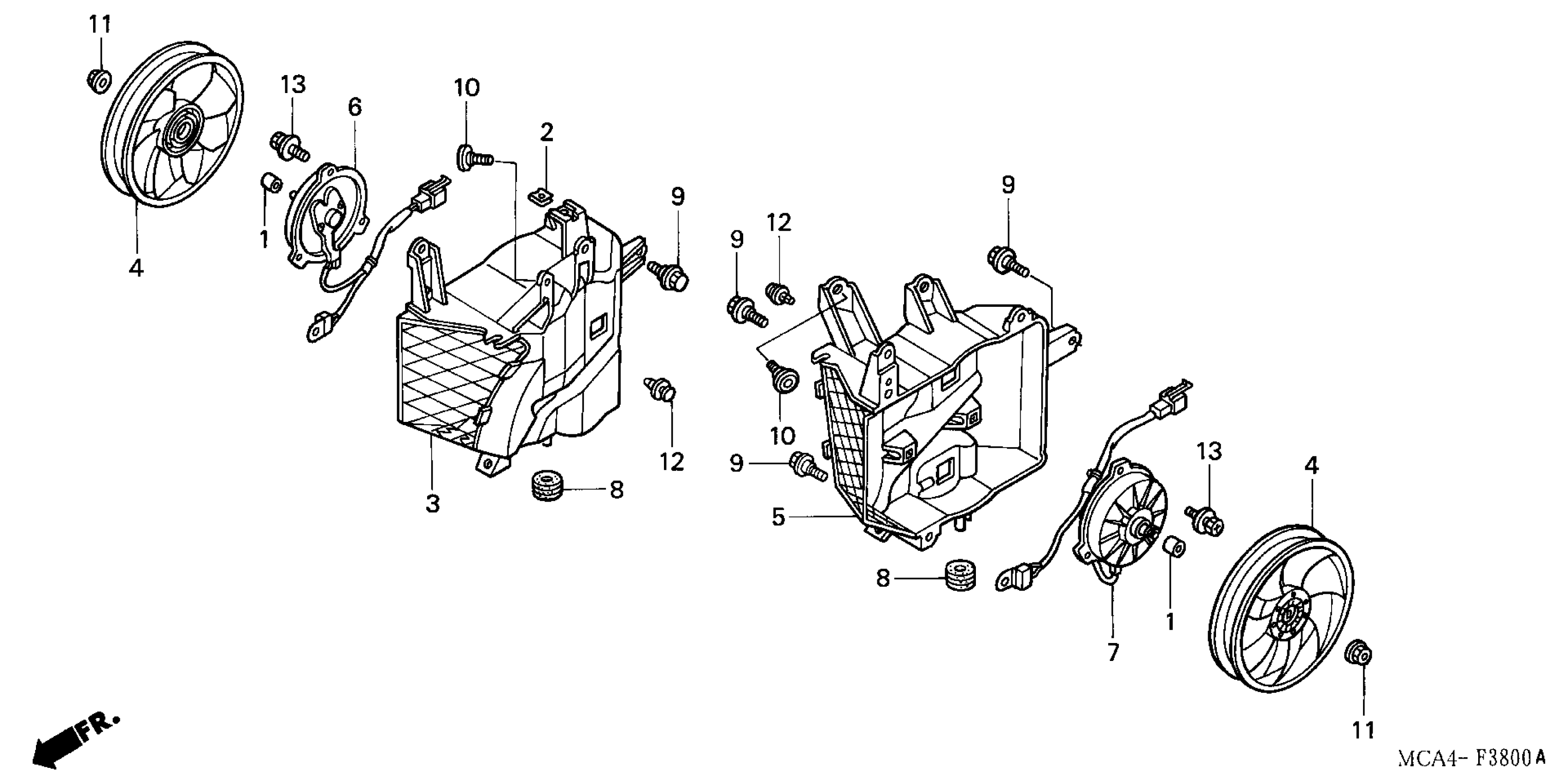

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 COOLING FAN Diagram

NUT, SETTING (6MM)

19014-KEA-003

$2.88

AIR GUIDE, R. RADIATOR

19015-MCA-A20

$120.71

FAN, COOLING

19020-MCF-013

Unavailable

AIR GUIDE, L. RADIATOR

19025-MCA-A20

Unavailable

MOTOR ASSY., R. FAN

19030-MCA-003

$173.99

MOTOR ASSY., L. FAN

19032-MCA-003

$173.52

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.54

BOLT, FLANGE (6MM)

90111-187-000

$5.21

BOLT, TOOL BOX (6X20)

90119-KV3-680

$3.35

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$3.93

BOLT-WASHER (6X12)

93401-06012-08

Unavailable
