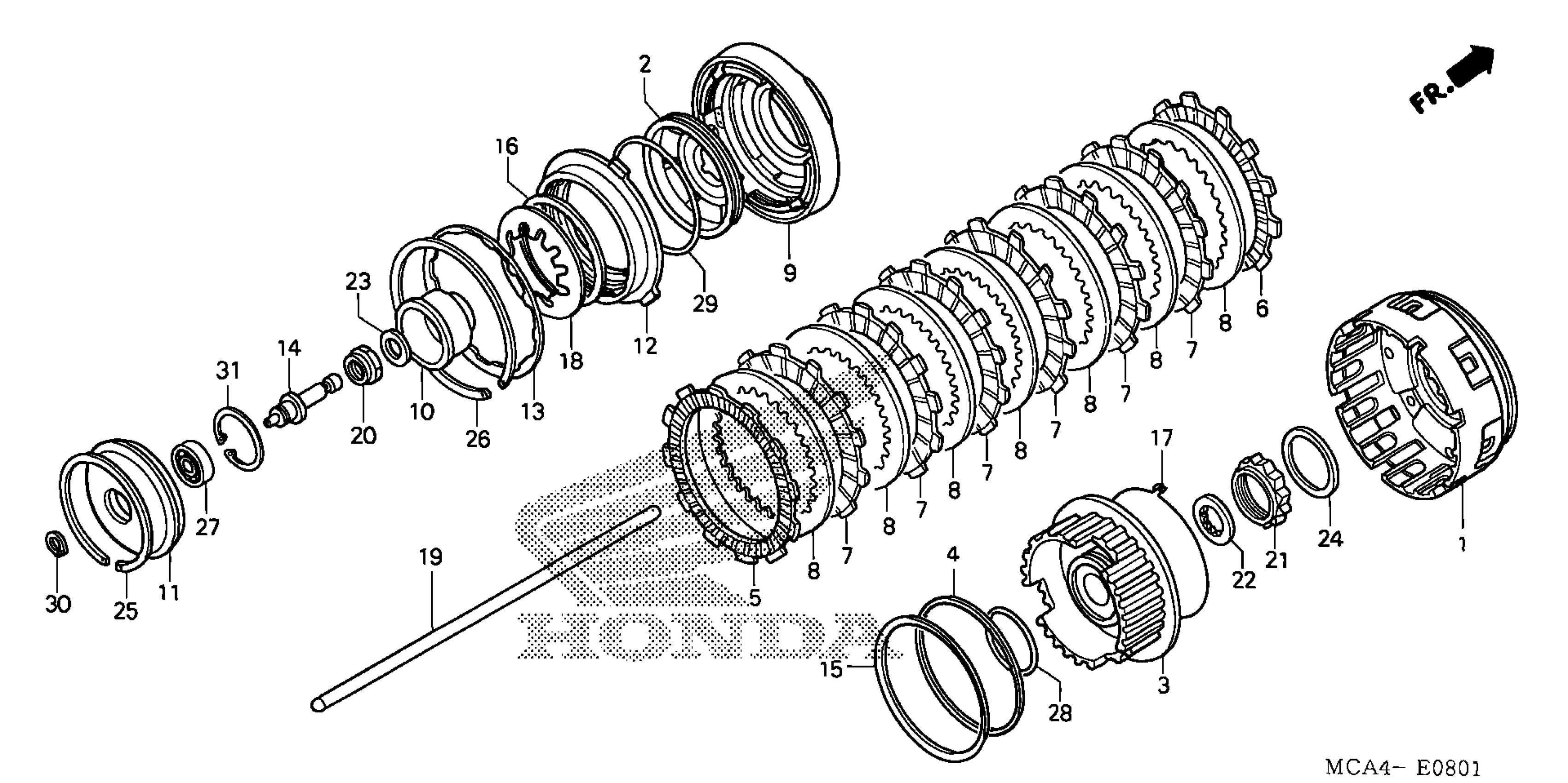

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 CLUTCH (2) Diagram

CLUTCH OUTER

22100-MCA-780

$381.87

PISTON, CLUTCH

22111-MCA-000

$26.03

CENTER, CLUTCH

22120-MCA-000

$92.90

SEAT, JUDDER SPRING

22125-MCA-000

$12.39

DISK, CLUTCH FRICTION

22201-MCA-000

$18.04

DISK B, CLUTCH FRICTION

22202-MAT-000

$21.43

DISK A, CLUTCH FRICTION

22203-MCA-000

$18.93

PLATE, CLUTCH

22321-MAT-000

$14.99

PLATE, CLUTCH PRESSURE

22351-MCA-000

$91.28

GUIDE, SPRING

22352-MCA-000

$36.48

PLATE, CLUTCH LIFTER

22353-MCA-000

$29.18

LIFTER B, CLUTCH

22354-MCA-000

$38.70

SPRING, CLUTCH LIFTER

22355-MCA-000

$16.66

PIECE, CLUTCH JOINT

22366-MCA-000

$33.93

SPRING, JUDDER

22402-MAT-000

$24.22

SEAT, CLUTCH SPRING

22425-MCA-000

$13.93

CLIP, CLUTCH CENTER

22431-MAT-000

$12.33

SPRING, CLUTCH

22441-MCA-000

$17.74

ROD, CLUTCH LIFTER

22851-MCA-000

$29.69

NUT, HEX. (22MM)

90206-MZ0-000

$10.76

NUT, LOCK (40MM)

90245-MN5-000

$34.46

WASHER, SPLINE (25MM)

90403-MN5-000

$9.33

WASHER (22X33)

90407-MJ0-000

$6.49

WASHER, SPRING (40MM)

90491-MN5-000

$21.93

CIRCLIP (INNER) (95MM)

90601-MB0-771

$11.30

CIRCLIP (INNER) (95MM) This part replaces 90601-MG8-000.

90601-MB0-771

$11.30

RING, SETTING (123MM)

90602-MG8-000

$15.30

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

O-RING (51.6X2.3) (ARAI)

91301-MG8-003

$2.92

O-RING (93.3X2.3) (ARAI)

91302-MG8-003

$5.54

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

CIRCLIP (INNER) (35MM)

94520-35100

$1.72
