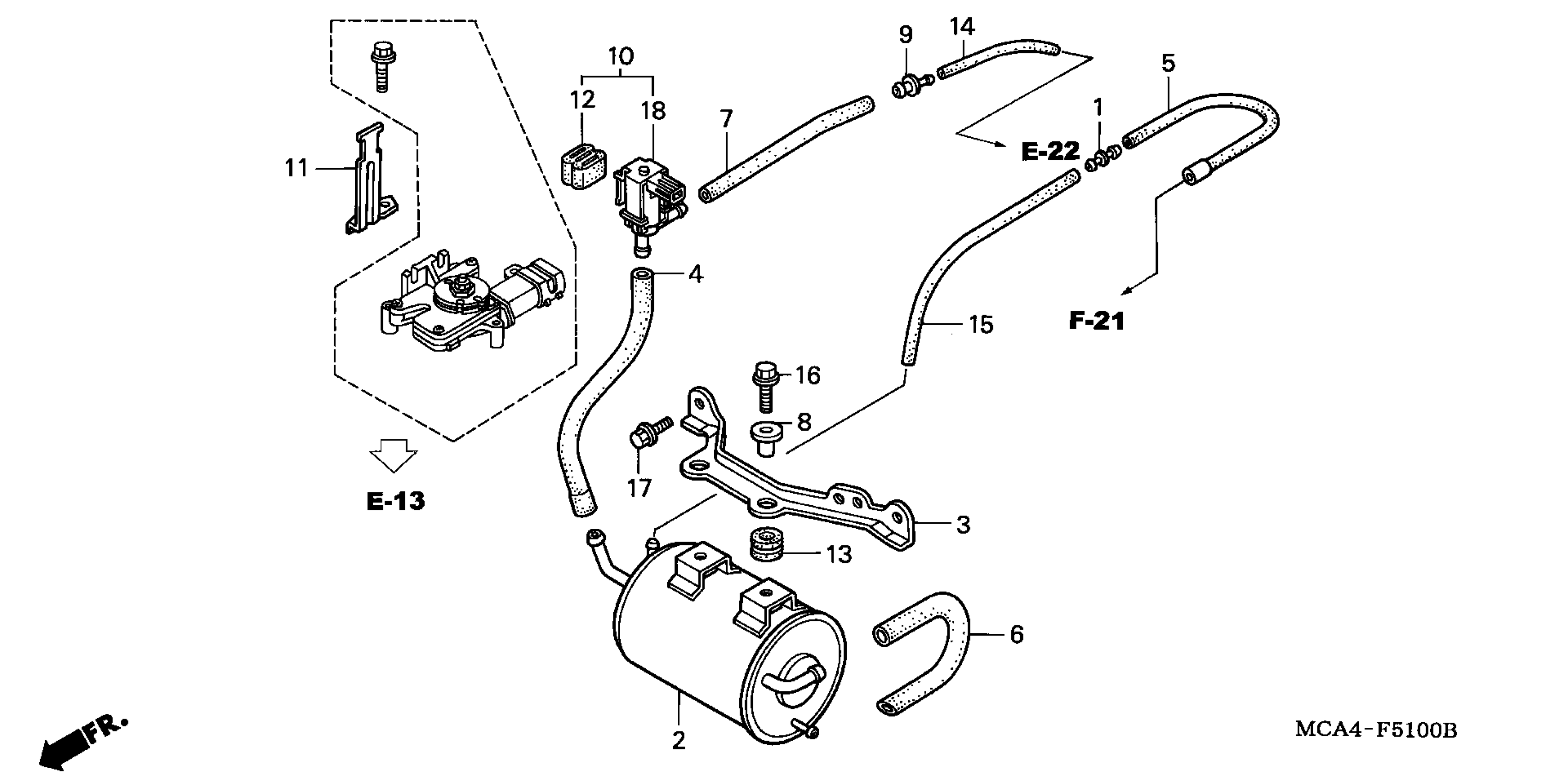

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 CANISTER Diagram

JOINT, FUEL TUBE

16958-GJ6-000

$4.40

CANISTER

17410-MCA-A00

$194.75

STAY, CANISTER

17411-MCA-000

$20.60

TUBE (PCS-CANISTER)

17412-MCA-000

$11.00

TUBE A, AIR BREATHER

17413-MCA-000

$2.99

TUBE B, AIR BREATHER

17414-MCA-000

$1.85

TUBE C, AIR BREATHER

17415-MCA-000

$1.25

COLLAR, RESERVE TANK SETTING

19107-415-000

$2.95

JOINT, TUBE

19126-KM1-010

$3.50

VALVE ASSY., PURGE CONTROL SOLENOID

36160-P8E-A02

$74.46

STAY, P.C.S

36165-MCA-000

$7.53

RUBBER, MOUNTING

36166-P0A-A01

$6.50

RUBBER, CONTROL BOX

90852-898-000

Unavailable

BULK HOSE, VACUUM (3.5X1000) (3.5X120)

95005-35001-20M

$11.77

BULK HOSE, VACUUM (4.5X1000) (4.5X860)

95005-45001-20M

$34.04

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

VALVE, PURGE CONTROL SOLENOID

36162-P8E-A02

$38.54
