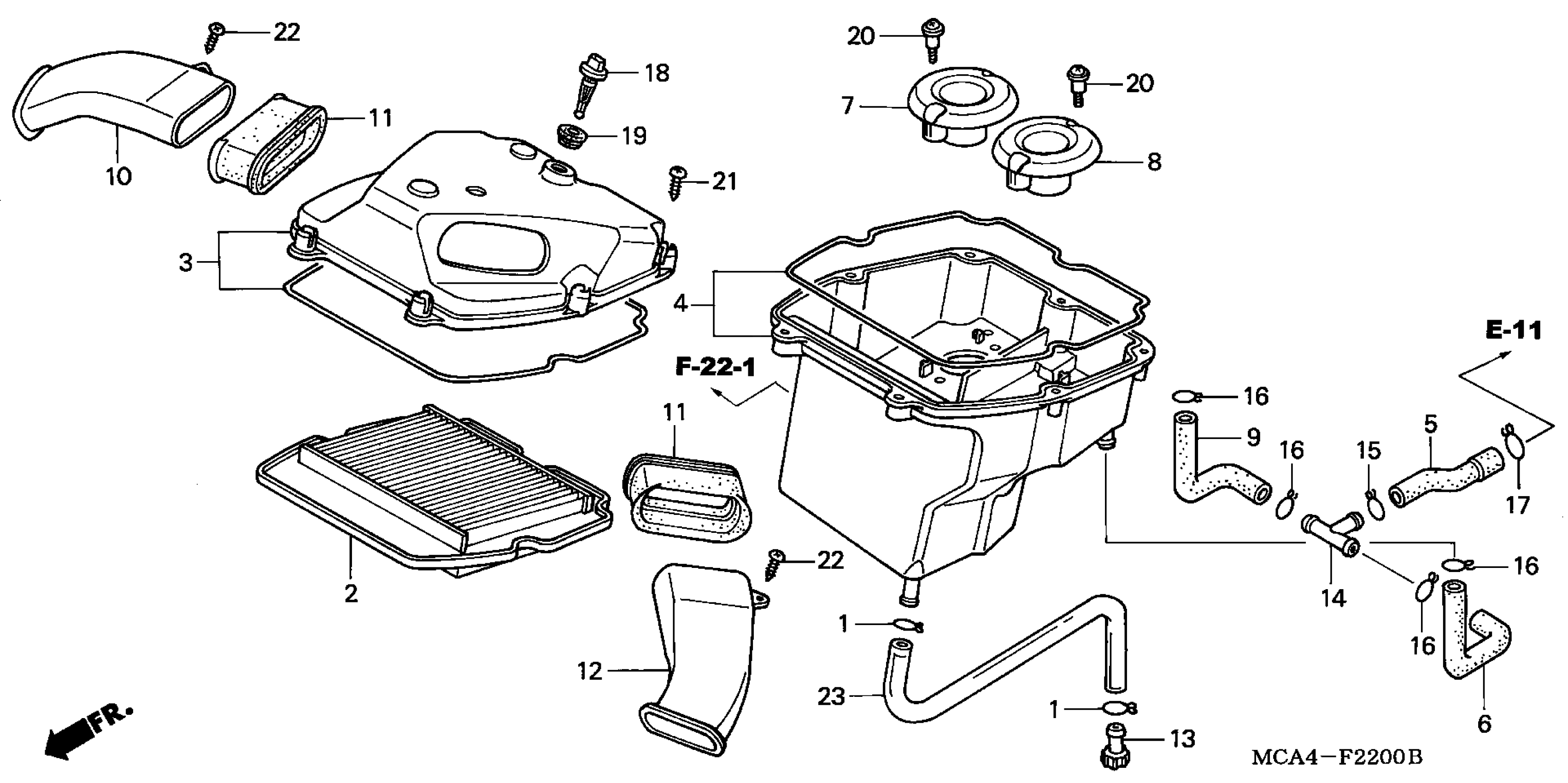

Honda GL1800A (04) GOLD WING, USA, VIN# 1HFSC470-4A300001 AIR CLEANER Diagram

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

ELEMENT, AIR CLEANER

17210-MCA-A60

$43.97

ELEMENT, AIR CLEANER This part replaces 17210-MCA-003.

17210-MCA-A60

$43.97

COVER, AIR CLEANER This part replaces 17221-MCA-003.

17221-MCA-A60

Unavailable

HOUSING, AIR CLEANER This part replaces 17231-MCA-003.

17231-MCA-A60

$94.92

TUBE C, BREATHER

17233-MCA-000

$21.56

TUBE B, BREATHER

17235-MCA-000

$13.16

FUNNEL, R. AIR This part replaces 17237-MCA-003.

17237-MCA-013

$11.92

FUNNEL, R. AIR

17237-MCA-013

$11.92

FUNNEL, L. AIR This part replaces 17239-MCA-003.

17239-MCA-013

$9.77

FUNNEL, L. AIR

17239-MCA-013

$9.77

TUBE A, BREATHER

17245-MCA-000

$11.05

DUCT, R. AIR CLEANER

17251-MCA-A60

Unavailable

DUCT, R. AIR CLEANER This part replaces 17251-MCA-003.

17251-MCA-A60

Unavailable

RUBBER, DUCT This part replaces 17252-MCA-003.

17252-MCA-A61

$15.57

DUCT, L. AIR CLEANER This part replaces 17254-MCA-A60.

17254-MCA-S40

$92.43

DUCT, L. AIR CLEANER This part replaces 17254-MCA-003.

17254-MCA-S40

$92.43

PLUG, BREATHER TUBE

17370-382-870

$3.74

JOINT, THREE WAY BREATHER

17420-MCA-000

$5.56

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

SENSOR ASSY., AIR TEMPERATURE

37880-MCA-003

$40.02

GROMMET, TA SENSOR

37881-MCA-003

$3.78

SCREW, PAN (5MM)

91508-MM5-000

$4.08

SCREW, TAPPING (5X20)

93903-25480

$1.49

SCREW, TAPPING (5X16)

93913-25420

$1.49

TUBE, VINYL (11X15X420) (NA USE ALT:95003-37003-60M)

95003-37042-31

Unavailable
