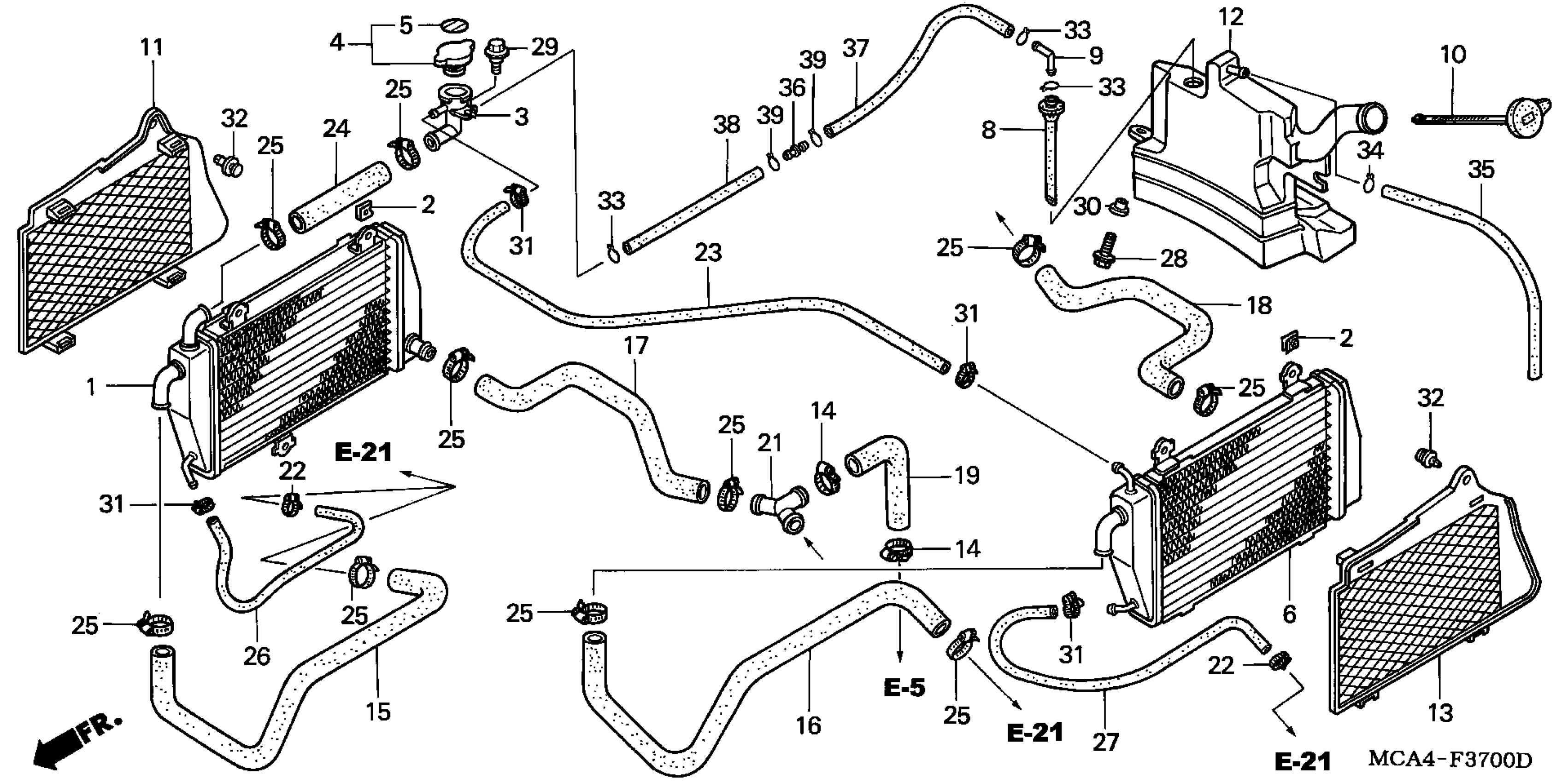

Honda GL1800A (03) GOLD WING, USA, VIN# 1HFSC470-3A200001 TO 1HFSC470-3A299999 RADIATOR Diagram

RADIATOR, R.

19010-MCA-003

$293.62

NUT, SETTING (6MM)

19014-KEA-003

$3.10

NECK, FILLER

19039-KM1-004

$29.31

CAP, RADIATOR This part replaces 19045-GBF-770.

19045-MZ1-621

$50.26

CAP, RADIATOR

19045-MZ1-621

$50.26

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

RADIATOR, L.

19060-MCA-003

$321.92

TUBE, LEVEL

19102-ML7-701

$11.28

JOINT, TUBE

19103-MB9-000

$6.34

CAP ASSY., RESERVE TANK

19104-MCA-000

$9.72

GRILLE, R. RADIATOR

19105-MCA-000

$75.80

TANK ASSY., RESERVE

19110-MCA-000

$62.93

GRILLE, L. RADIATOR

19205-MCA-000

$75.38

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

HOSE, R. FR. RADIATOR

19501-MCA-000

$15.98

HOSE, L. FR. RADIATOR

19502-MCA-000

$10.41

HOSE, R. RR. RADIATOR

19503-MCA-000

$6.48

HOSE, L. RR. RADIATOR

19504-MCA-000

$5.10

HOSE, RR. RADIATOR

19505-MCA-000

$4.08

JOINT, THREE WAY

19506-MCA-000

$14.08

CLAMP, RADIATOR HOSE

19507-MAT-000

$10.76

HOSE, BREATHER

19508-MCA-000

$28.98

HOSE, CAP JOINT

19509-MCA-000

$8.66

CLAMP, WATER HOSE

19505-ML3-770

$7.08

HOSE, R. DRAIN

19520-MCA-000

$12.31

HOSE, L. DRAIN

19525-MCA-000

$12.08

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6MM)

90111-187-000

$5.59

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

CLAMP, WATER HOSE

19507-MAL-600

$5.69

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (B10)

95002-02100

$1.90

BULK HOSE, VACUUM (5.5X3000) (5.3X320)

95005-55003-20M

$34.09

JOINT, TUBE

19102-KT8-000

$6.61

TUBE A, RESERVE TANK

19106-MCA-000

$4.79

TUBE B, RESERVE TANK

19107-MCA-000

$4.41

CLIP, TUBE (B12)

95002-02120

$2.00
