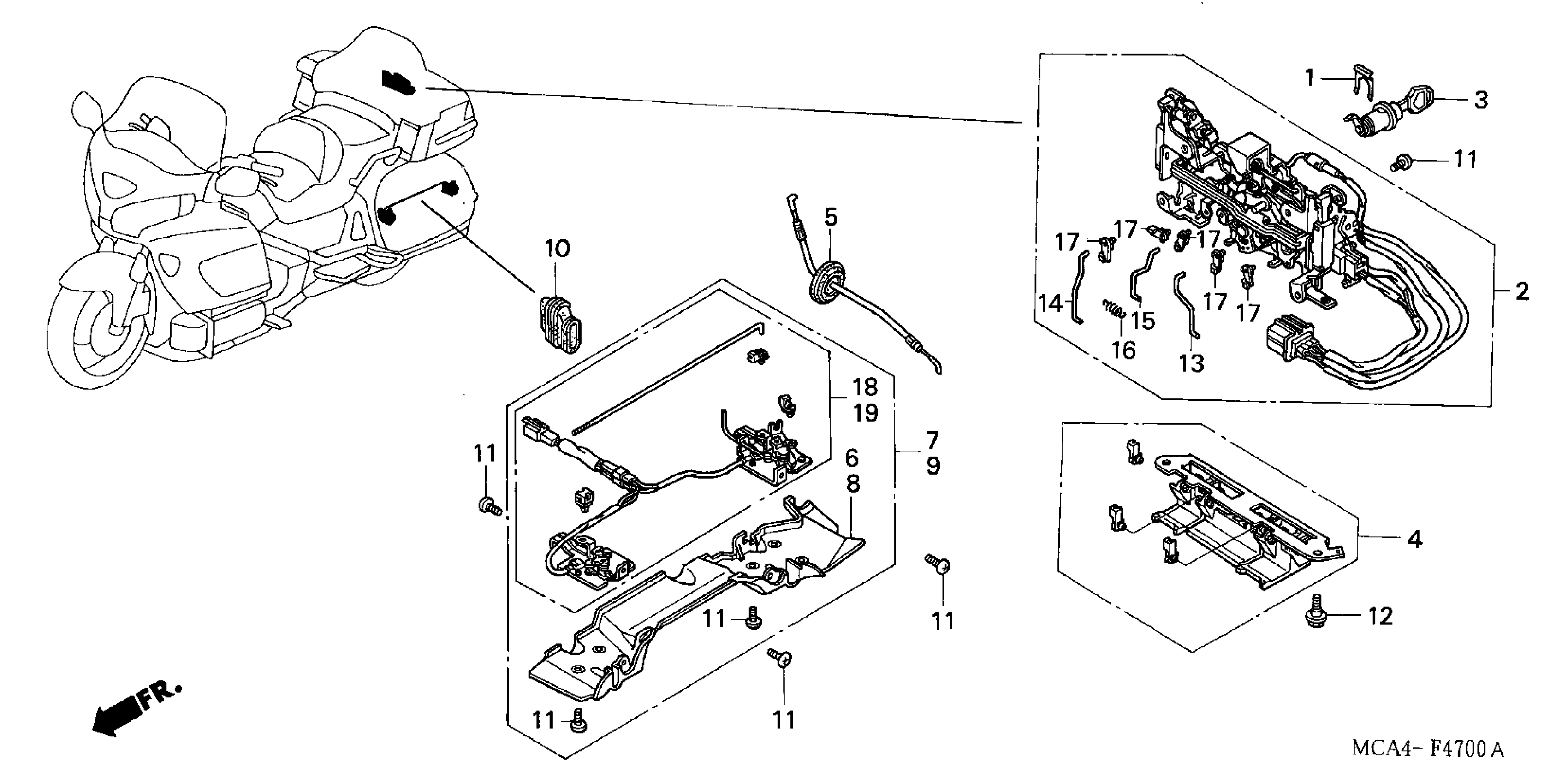

Honda GL1800A (03) GOLD WING, USA, VIN# 1HFSC470-3A200001 TO 1HFSC470-3A299999 OPENER UNIT Diagram

SPRING, LOCK KEY SETTING

37222-MCA-000

$3.51

OPENER UNIT This part replaces 81310-MCA-A21.

81310-MCA-A23

$527.84

OPENER UNIT This part replaces 81310-MCA-003.

81310-MCA-A23

$527.84

LOCK ASSY., OPENER UNIT

81312-MCA-003

$88.41

LEVER ASSY., LUGGAGE BAG This part replaces 81335-MCA-003.

81335-MCA-S41

$95.54

LEVER ASSY., LUGGAGE BAG This part replaces 81335-MCA-013.

81335-MCA-S41

$95.54

CABLE, SADDLEBAG OPENER This part replaces 81345-MCA-003.

81345-MCA-A62

$25.38

COVER, R. SADDLEBAG CATCH

81360-MCA-000

Unavailable

CATCH ASSY., R. SADDLEBAG

81361-MCA-003

Unavailable

COVER, L. SADDLEBAG CATCH

81370-MCA-000

$41.15

CATCH ASSY., L. SADDLEBAG

81371-MCA-003

$199.03

GROMMET, CATCH ROD

81399-MCA-000

$11.95

SCREW (5X12)

90104-964-000

$2.34

BOLT, FLANGE (6MM)

90111-197-890

$3.67

ROD, L. This part replaces 81381-MCA-003.

81381-MCA-013

$7.61

ROD, R.

81382-MCA-003

$8.02

ROD, CENTER

81383-MCA-003

$9.77

SPRING

81384-MCA-003

$3.20

SNAP

81385-MCA-003

$4.25

CATCH SET, R. SADDLEBAG

81386-MCA-003

Unavailable

CATCH SET, L. SADDLEBAG

81396-MCA-003

$160.21
