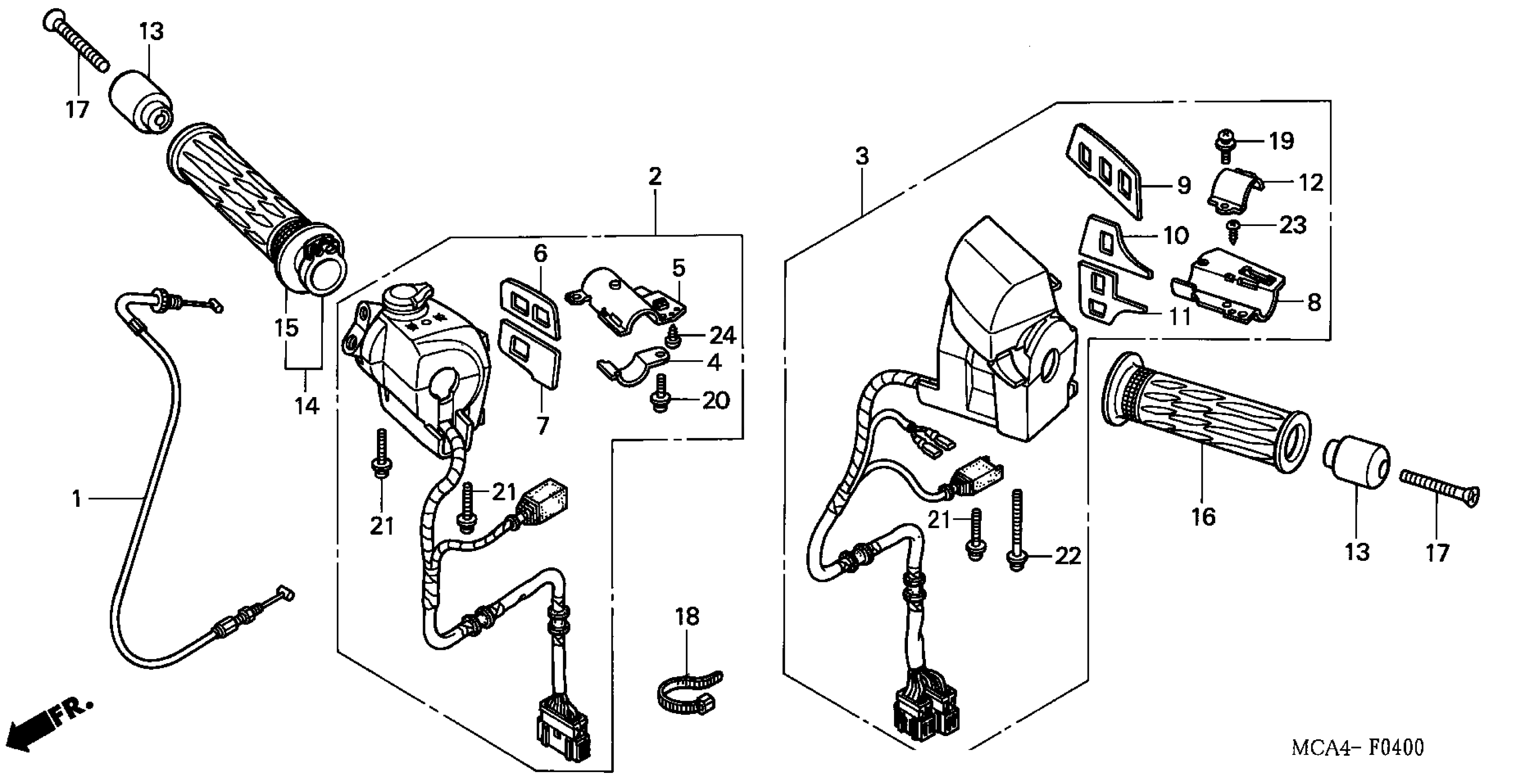

Honda GL1800A (03) GOLD WING, USA, VIN# 1HFSC470-3A200001 TO 1HFSC470-3A299999 HANDLE SWITCH (1) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCA-000

$20.04

2

SWITCH SET, STARTER STOP This part replaces 35013-MCA-000.

35013-MCA-505

$222.20

2

SWITCH SET, STARTER STOP

35013-MCA-505

$222.20

3

SWITCH SET, TURN SIGNAL

35020-MCA-000

Unavailable

4

PLATE A, STOP SWITCH SETTING

35132-MCA-003

$5.28

5

PLATE B, STOP SWITCH SETTING

35133-MCA-003

$5.54

6

PLATE, ORNAMENT (A)

35134-MCA-003

Unavailable

7

PLATE, ORNAMENT (B)

35135-MCA-003

Unavailable

8

PLATE SET A, TURN SIGNAL

35202-MCA-003

$5.69

9

PLATE, ORNAMENT (A)

35203-MCA-003

Unavailable

10

PLATE, ORNAMENT (C)

35205-MCA-003

Unavailable

11

PLATE, ORNAMENT (D)

35206-MCA-003

Unavailable

12

PLATE SET B, TURN SIGNAL

35207-MCA-003

$3.13

13

WEIGHT, HANDLEBAR

53105-MK4-620

$15.03

14

GRIP, R.

53145-MCA-000

$34.40

14

GRIP, R. This part replaces 53145-MJG-305.

53145-MCA-000

$34.40

15

GRIP, R. HANDLE

53165-MCA-000

$16.57

16

GRIP, L. HANDLE

53166-MCA-000

$15.67

16

GRIP, L. HANDLE This part replaces 53166-MJG-305.

53166-MCA-000

$15.67

17

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

18

BAND, WIRE (95MM)

90650-KV6-003

$3.12

19

SCREW-WASHER (5X10)

93892-05010-08

$1.49

20

SCREW-WASHER (5X20)

93892-05020-08

$1.49

21

SCREW-WASHER (5X25)

93892-05025-07

$1.49

22

SCREW-WASHER (5X45)

93892-05045-07

$1.49

23

SCREW, TAPPING (3X8)

93901-32120

$1.49

24

SCREW, TAPPING (3X10)

93901-32220

$1.49
