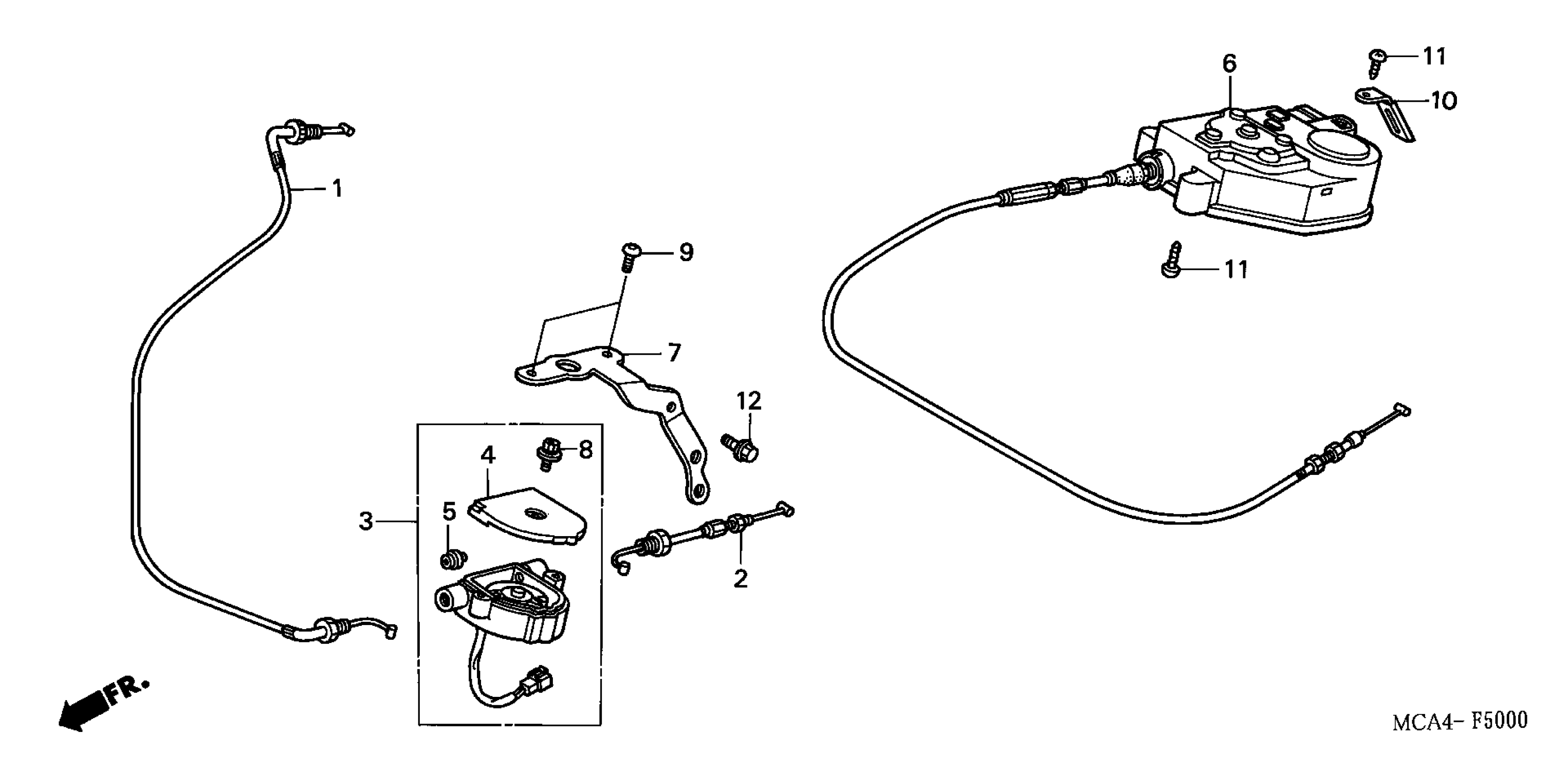

Honda GL1800A (03) GOLD WING, USA, VIN# 1HFSC470-3A200001 TO 1HFSC470-3A299999 AUTO CRUISE Diagram

CABLE B, THROTTLE

17920-MCA-000

$45.80

CABLE C, THROTTLE

17930-MCA-000

$28.62

SWITCH ASSY., GRIP CANCEL

35360-MCA-A01

Unavailable

COVER, GRIP CANCEL SWITCH

35366-MCA-003

Unavailable

GROMMET

35367-MCA-A01

Unavailable

ACTUATOR ASSY. This part replaces 36520-MCA-A00.

36520-MCA-A01

Unavailable

ACTUATOR ASSY.

36520-MCA-A01

Unavailable

STAY, P.C.V.

50307-MCA-000

Unavailable

BOLT-WASHER (5X16)

90091-SC3-960

$5.56

SCREW, PAN (6X14)

90118-MR1-000

$3.10

CLIP (4X50)

90601-KJ9-000

$3.08

SCREW, TAPPING (4X20) (PO)

93913-14580

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
