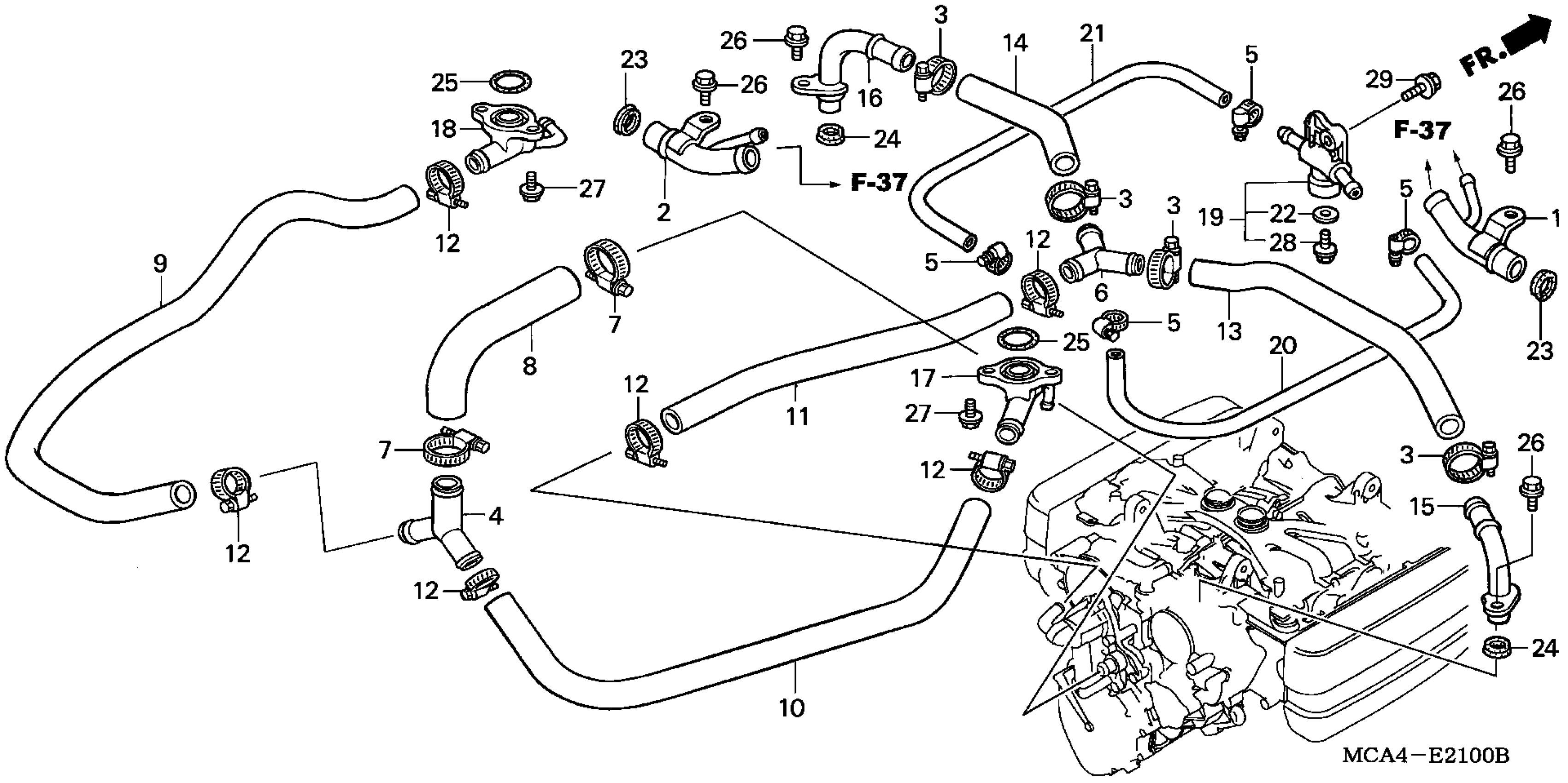

Honda GL1800A (02) GOLD WING, USA, VIN# 1HFSC470-2A100001 TO 1HFSC470-2A199999 WATER PIPE Diagram

#

Description
Price

1

PIPE, R. WATER

19411-MCA-780

$30.17

2

PIPE, L. WATER

19421-MCA-780

$30.17

3

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

4

JOINT, THREE WAY

19506-MCA-000

$12.64

5

CLAMP, WATER HOSE

19507-MAL-600

$5.17

6

JOINT, THREE WAY

19507-MCA-000

$7.75

7

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.19

8

HOSE A, WATER

19511-MCA-000

$14.03

9

HOSE B, WATER

19512-MCA-S40

$27.40

9

HOSE B, WATER This part replaces 19512-MCA-000.

19512-MCA-S40

$27.40

10

HOSE C, WATER

19513-MCA-S40

$26.74

10

HOSE C, WATER This part replaces 19513-MCA-000.

19513-MCA-S40

$26.74

11

HOSE A, BYPASS

19516-MCA-000

$19.08

12

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

13

HOSE B, BYPASS

19517-MCA-000

$11.97

14

HOSE C, BYPASS

19518-MCA-000

$6.36

15

PIPE, R. BYPASS

19530-MCA-000

$26.25

16

PIPE, L. BYPASS

19540-MCA-000

$34.97

17

JOINT, R. WATER HOSE

19710-MCA-010

$16.96

18

JOINT, L. WATER HOSE

19720-MCA-000

$16.42

19

JOINT, DRAIN

19730-MCA-000

Unavailable

20

HOSE A, DRAIN

19732-MCA-010

$7.77

21

HOSE B, DRAIN

19733-MCA-000

$5.16

22

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

23

SEAL, WATER PIPE (22.5MM)

91315-MAH-003

$7.13

24

SEAL, WATER PIPE

91315-ME9-003

$4.20

25

O-RING (23X2.4)

94608-30000

$1.09

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

27

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

28

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

29

BOLT, FLANGE (6X16)

96300-06016-00

$0.86

29

BOLT, FLANGE (6X16) This part replaces 96400-06016-00.

96300-06016-00

$0.86
