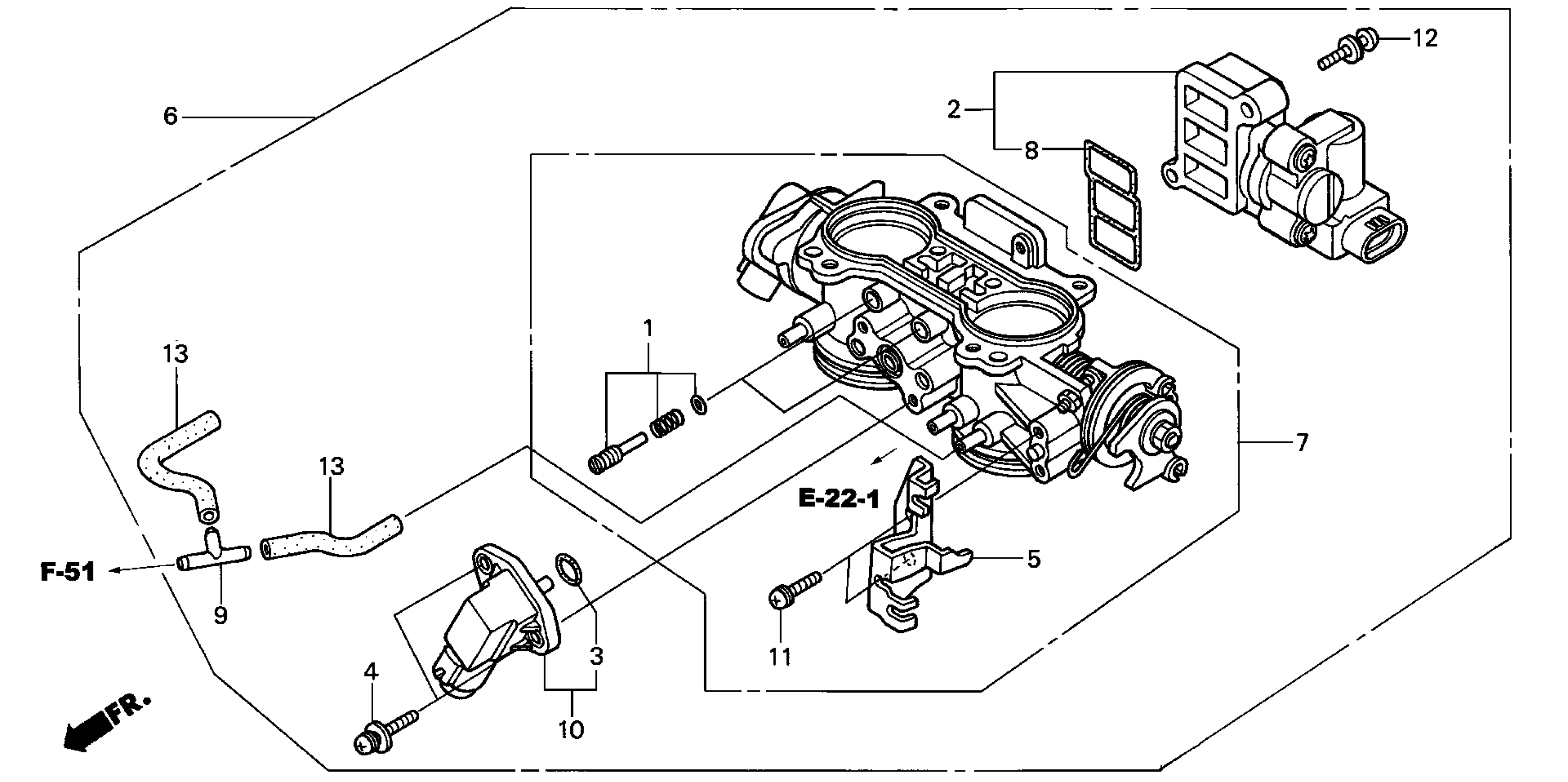

Honda GL1800A (02) GOLD WING, USA, VIN# 1HFSC470-2A100001 TO 1HFSC470-2A199999 THROTTLE BODY Diagram

SCREW SET

16016-MCA-013

$17.31

VALVE SET, ROTARY AIR CONTROL

16022-MCA-003

$122.03

O-RING (9.8X1.9)

16075-P07-000

$4.42

SCREW-WASHER (4X16)

16080-P07-000

$4.64

STAY, WIRE

16119-MCA-003

$27.03

BODY ASSY., THROTTLE (GQ61A A)

16400-MCA-013

$745.11

BODY SET

16410-MCA-013

Unavailable

GASKET, ROTARY AIR CONTROL VALVE

16456-P8A-A01

$6.85

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

SENSOR SET, MAP

37011-MCA-003

$167.09

SCREW-WASHER (5X12)

93892-05012-00

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

SCREW-WASHER (5X22)

93892-05022-00

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X80)

95005-35001-20M

$9.67
