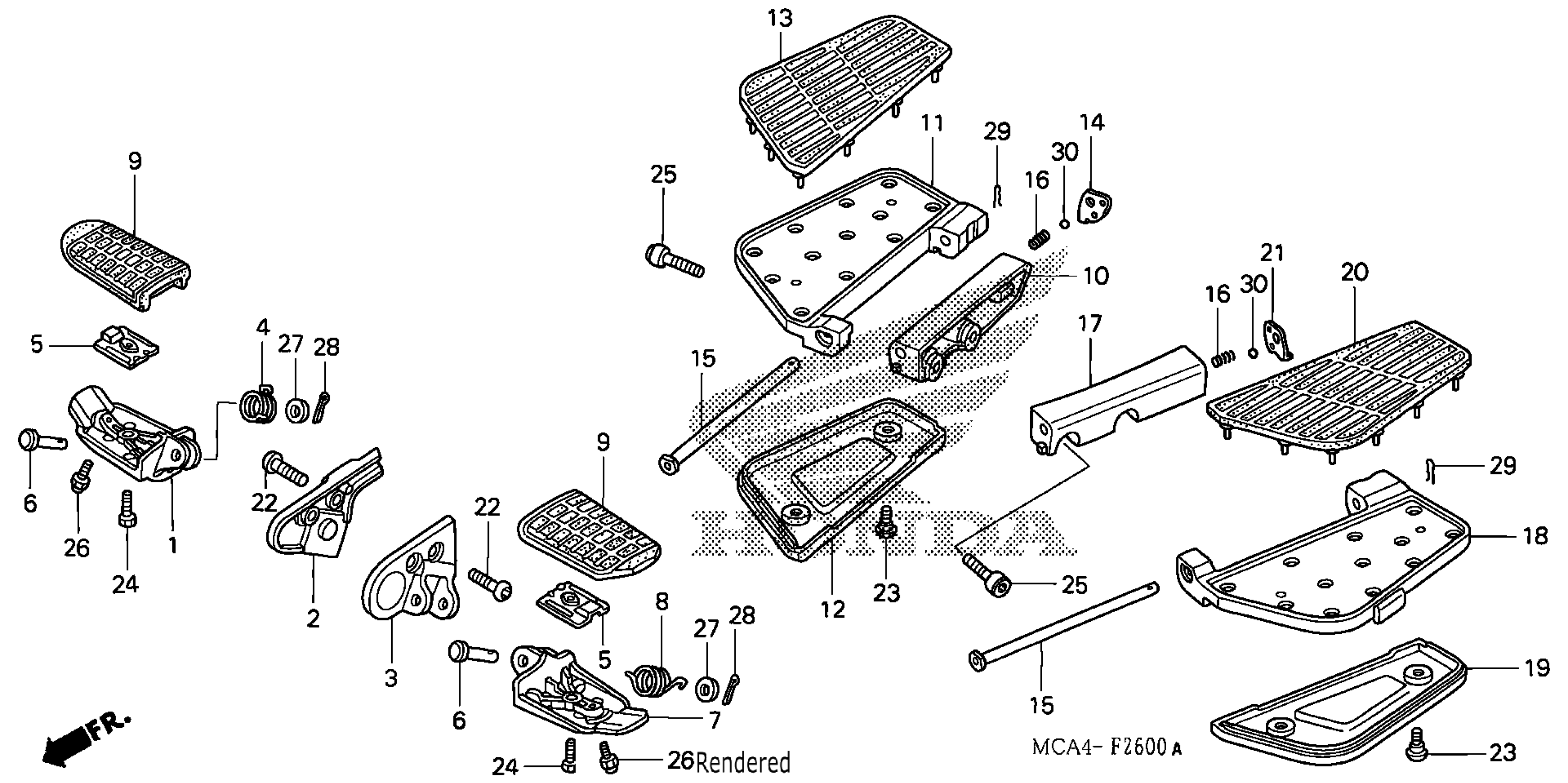

Honda GL1800A (02) GOLD WING, USA, VIN# 1HFSC470-2A100001 TO 1HFSC470-2A199999 STEP Diagram

#

Description
Price

1

ARM, R. STEP (COO) This part replaces 50612-MCA-000.

50612-MCA-305

$18.20

1

ARM, R. STEP (COO)

50612-MCA-305

$18.20

2

BRACKET, R. MAIN STEP

50613-MCA-000

$29.22

3

BRACKET, L. MAIN STEP This part replaces 50614-MCA-000.

50614-MCA-010

$25.84

3

BRACKET, L. MAIN STEP

50614-MCA-010

$25.84

4

SPRING, R. STEP RETURN

50617-MM5-000

$4.47

5

PLATE, STEP SETTING

50619-MCA-000

$6.70

6

PIN, STEP BAR

50639-ML0-010

Unavailable

7

ARM, L. STEP (COO) This part replaces 50642-MCA-000.

50642-MCA-305

$18.20

7

ARM, L. STEP (COO)

50642-MCA-305

$18.20

8

SPRING, L. STEP RETURN

50644-MM5-000

$4.47

9

RUBBER, MAIN STEP (COO) This part replaces 50661-MCA-000.

50661-MCA-305

$13.69

10

HOLDER, R. PILLION STEP

50715-MCA-000

$62.97

11

PLATE, R. PILLION STEP (COO) This part replaces 50716-MCA-010.

50716-MCA-305

$95.48

11

PLATE, R. PILLION STEP (COO)

50716-MCA-305

$95.48

12

COVER, R. PILLION STEP (LOWER) *NH454M* (ECLIPSE SILVER METALLIC)

50717-MCA-000ZA

Unavailable

13

RUBBER, R. PILLION STEP

50718-MCA-000

$20.46

14

PLATE, R. PILLION STEP CLICK

50720-MT8-770

$6.55

15

PIN, PILLION STEP This part replaces 50721-MCA-000.

50721-MCA-A00

$14.36

15

PIN, PILLION STEP

50721-MCA-A00

$14.36

16

SPRING, PILLION STEP ADJUST CLICK

50746-MT8-770

$1.94

17

HOLDER, L. PILLION STEP

50815-MCA-000

$62.97

18

PLATE, L. PILLION STEP (COO) This part replaces 50816-MCA-010.

50816-MCA-305

$102.65

18

PLATE, L. PILLION STEP (COO)

50816-MCA-305

$102.65

19

COVER, L. PILLION STEP (LOWER) *NH454M* (ECLIPSE SILVER METALLIC)

50817-MCA-000ZA

$33.96

20

RUBBER, L. PILLION STEP

50818-MCA-000

$19.02

21

PLATE, L. PILLION STEP CLICK

50820-MT8-770

$6.55

22

BOLT, SOCKET (8X22)

90100-GCT-J50

$1.77

23

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

24

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.46

25

BOLT, SOCKET (8X32)

90155-MBL-610

$4.56

26

BOLT, CAP (6X12)

92501-06012-0A

$2.19

27

WASHER, PLAIN (8MM)

94101-08000

$0.75

28

PIN, SPLIT (2.0X15)

94201-20150

$0.94

29

PIN, LOCK (8MM)

94251-08000

$1.12

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
