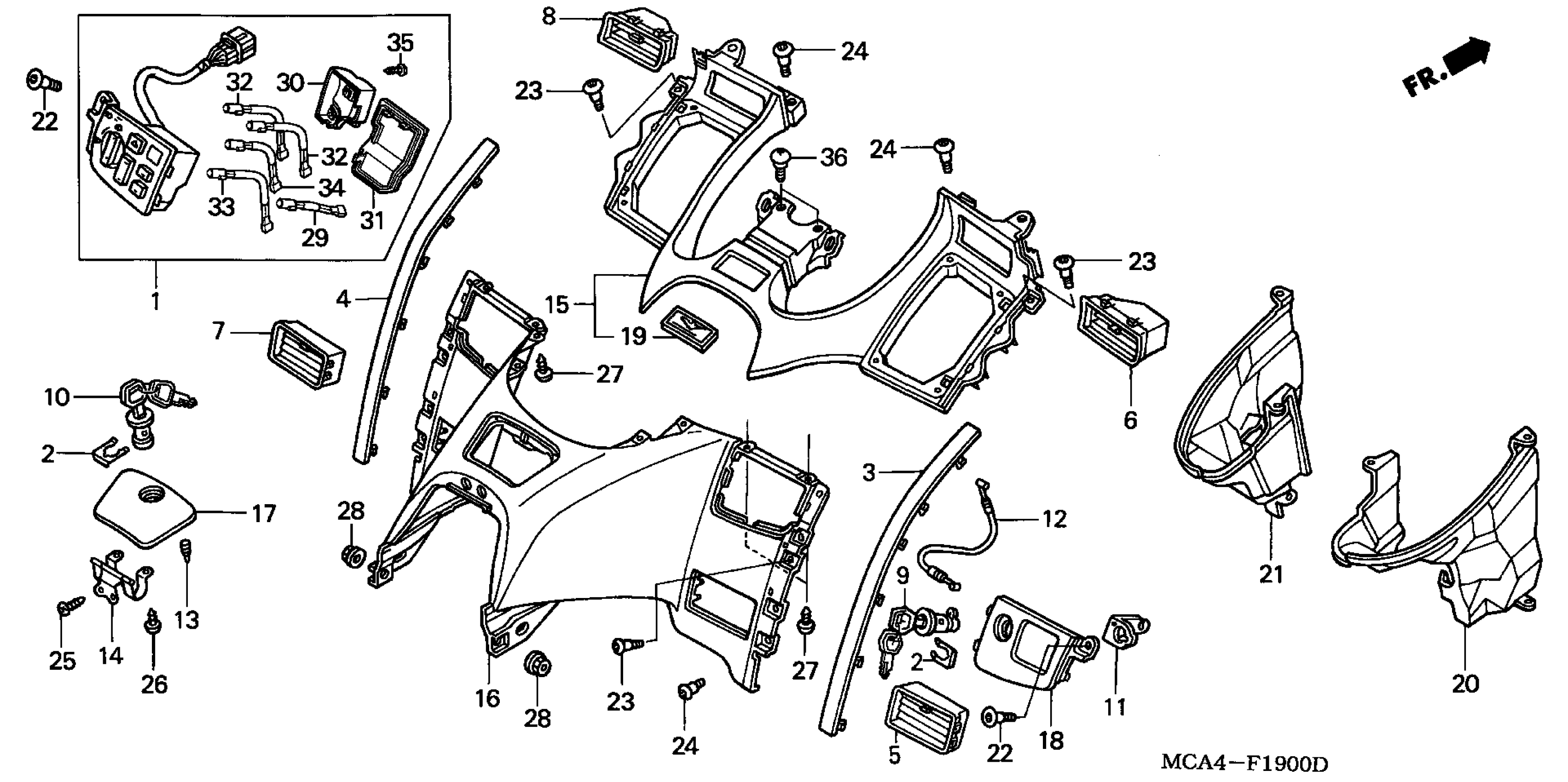

Honda GL1800A (02) GOLD WING, USA, VIN# 1HFSC470-2A100001 TO 1HFSC470-2A199999 SHELTER Diagram

#

Description
Price

1

SWITCH ASSY., HEIGHT CONTROL

35800-MCA-043

$288.86

2

SPRING, LOCK KEY SETTING

37222-MCA-000

$3.19

3

MOLDING, R. COWL TRIM *R259P* (ILLUSION RED)

64204-MCA-000ZC

Unavailable

3

MOLDING, R. COWL TRIM *Y130P* (PEARL HOT ROD YELLOW)

64204-MCA-000ZD

$100.70

3

MOLDING, R. COWL TRIM *NH1Z* (BLACK-Z)

64204-MCA-000ZA

$100.70

3

MOLDING, R. COWL TRIM *YR232P* (PEARL SUNBURST ORANGE)

64204-MCA-000ZH

Unavailable

3

MOLDING, R. COWL TRIM *NH469M* (STREAM SILVER METALLIC)

64204-MCA-000ZF

Unavailable

3

MOLDING, R. COWL TRIM *P44P* (PEARL CHROMIUM PURPLE)

64204-MCA-000ZG

Unavailable

4

MOLDING, L. COWL TRIM *R259P* (ILLUSION RED)

64214-MCA-000ZC

Unavailable

4

MOLDING, L. COWL TRIM *Y130P* (PEARL HOT ROD YELLOW)

64214-MCA-000ZD

$100.70

4

MOLDING, L. COWL TRIM *NH1Z* (BLACK-Z)

64214-MCA-000ZA

$100.70

4

MOLDING, L. COWL TRIM *YR232P* (PEARL SUNBURST ORANGE)

64214-MCA-000ZH

Unavailable

4

MOLDING, L. COWL TRIM *NH469M* (STREAM SILVER METALLIC)

64214-MCA-000ZF

$100.70

4

MOLDING, L. COWL TRIM *P44P* (PEARL CHROMIUM PURPLE)

64214-MCA-000ZG

Unavailable

5

OUTLET ASSY., R. FRESH AIR (LOWER)

64445-MCA-000

$15.01

6

OUTLET ASSY., R. FRESH AIR (UPPER)

64450-MCA-780

$45.40

7

OUTLET ASSY., L. FRESH AIR (LOWER)

64455-MCA-000

$14.53

8

OUTLET ASSY., L. FRESH AIR (UPPER)

64460-MCA-780

$48.84

9

LOCK ASSY., POCKET LID

77233-MCA-003

$59.71

10

LOCK ASSY., FUEL LID

77234-MCA-003

$76.93

11

PLATE, POCKET LOCK

77236-MCA-000

Unavailable

12

CABLE, POCKET LOCK

77241-MCA-000

$6.01

13

RUBBER, SHELTER LID

83132-MN5-000

$2.17

14

HINGE

83140-MCA-000

$106.26

15

SHELTER ASSY., FR.

83150-MCA-780

$163.92

16

SHELTER, TOP *R259P* (ILLUSION RED)

83152-MCA-000ZC

$681.72

16

SHELTER, TOP *Y130P* (PEARL HOT ROD YELLOW)

83152-MCA-000ZD

$730.57

16

SHELTER, TOP *NH1Z* (BLACK-Z)

83152-MCA-000ZA

$763.49

16

SHELTER, TOP *YR232P* (PEARL SUNBURST ORANGE)

83152-MCA-000ZH

Unavailable

16

SHELTER, TOP *NH469M* (STREAM SILVER METALLIC)

83152-MCA-000ZF

$753.46

16

SHELTER, TOP *P44P* (PEARL CHROMIUM PURPLE)

83152-MCA-000ZG

Unavailable

17

LID, SHELTER *R259P* (ILLUSION RED)

83153-MCA-000ZC

Unavailable

17

LID, SHELTER *Y130P* (PEARL HOT ROD YELLOW)

83153-MCA-000ZD

$159.74

17

LID, SHELTER *NH1Z* (BLACK-Z)

83153-MCA-000ZA

$158.65

17

LID, SHELTER *YR232P* (PEARL SUNBURST ORANGE)

83153-MCA-000ZH

Unavailable

17

LID, SHELTER *NH469M* (STREAM SILVER METALLIC)

83153-MCA-000ZF

$153.51

17

LID, SHELTER *P44P* (PEARL CHROMIUM PURPLE)

83153-MCA-000ZG

$213.49

18

PANEL, R. SHELTER SWITCH

83160-MCA-000

$22.45

19

EMBLEM, GOLD WING

83162-MCA-000

$31.00

20

COVER, R. SHELTER (INNER)

83165-MCA-000

$35.48

21

COVER, L. SHELTER (INNER)

83175-MCA-000

$35.48

22

SCREW, PAN (5X19)

90106-KCR-000

$2.80

23

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

24

SCREW, PAN (6X14)

90113-MM5-000

$2.88

25

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$1.99

26

SCREW, TAPPING (4X10)

93903-24280

$1.23

27

SCREW, TAPPING (5X16)

93903-25380

$0.83

28

NUT, FLANGE (6MM)

94050-06070

$1.32

29

BULB (T3) (B) (CORD LENGTH:45MM)

35201-MCA-003

Unavailable

30

COVER, LENS

35801-MCA-003

$5.54

31

COVER

35802-MCA-003

Unavailable

32

BULB (T3) (C) (CORD LENGTH:100MM)

39206-MCA-013

$9.80

33

BULB (T3) (B) (CORD LENGTH:120MM)

39207-MCA-013

$8.46

34

BULB (T3) (B) (CORD LENGTH:75MM)

39208-MCA-003

$9.80

35

SCREW, TAPPING (3X12)

93901-32320

$0.83

36

SCREW, PAN (5X18)

90150-GBT-600

$1.83
