Description

Price

1

PIN, PISTON

13111-892-000

$5.67

2

GEAR, STARTER REDUCTION (17/18T)

28106-MCA-000

$84.28

3

GEAR, STARTER DRIVE (11T)

28141-MCA-000

$69.11

4

HOLDER, STARTER DRIVE GEAR

28150-MCA-000

$78.77

5

GEAR, REVERSE IDLE (46T)

28162-MN5-000

$134.18

6

SHIFTER, REVERSE

28165-MN5-000

$134.15

7

GEAR, REVERSE SHIFT (18T)

28171-MN5-000

$89.21

8

SHAFT, REVERSE SHIFTER

28211-MN5-000

$46.05

9

PLATE, LOST MOTION

28215-MCA-000

$4.79

10

COLLAR, LOST MOTION SPRING

28218-MCA-000

$23.03

11

COLLAR, REVERSE LEVER SPRING

28219-MN5-010

$15.13

12

BUSH, REVERSE SPRING

28221-MN5-000

$5.66

13

SPRING, REVERSE LEVER

28224-MCA-000

$7.39

14

SPRING, LOST MOTION

28226-MCA-000

$8.75

15

DRUM, REVERSE

28240-MCA-000

Unavailable

16

ARM, SHIFT DRUM LOCK

28250-MCA-000

$94.43

17

O-RING B

51996-SA5-800

$2.02

18

BOLT, FLANGE (6X20)

90014-MN5-000

$5.43

19

WASHER B, THRUST (30X1.7)

90409-ML4-610

$4.59

20

WASHER (6MM)

90485-VM0-000

$2.92

21

WASHER (12.2X23X1.6)

90492-MN5-000

$4.59

22

ROLLER (5X25)

90702-MN5-000

$2.90

23

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$27.17

24

BEARING, RADIAL BALL (6904) (NTN)

91007-MN5-003

$14.93

25

BEARING, NEEDLE (20X24X17)

91051-727-000

$28.76

26

PIN, DOWEL (8X14)

94301-08140

$2.25

27

CIRCLIP, OUTER (20MM)

94510-20000

$1.49

28

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

29

BOLT, FLANGE (6X28)

95801-06028-08

$1.73

30

BEARING, NEEDLE (12MM) (THOMPSON)

91001-147-006

$13.34

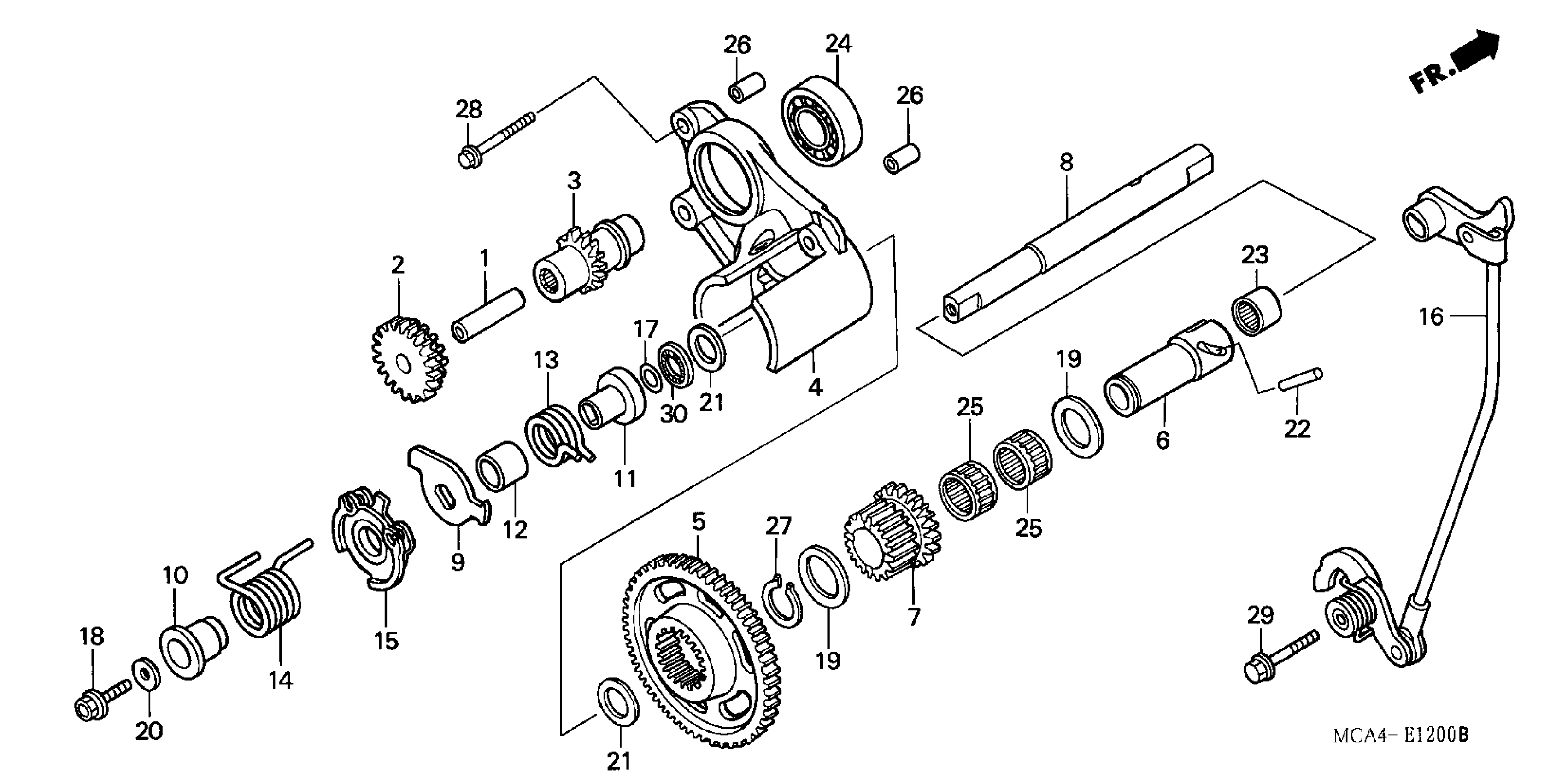

Honda GL1800A (02) GOLD WING, USA, VIN# 1HFSC470-2A100001 TO 1HFSC470-2A199999 REVERSE GEAR Diagram
