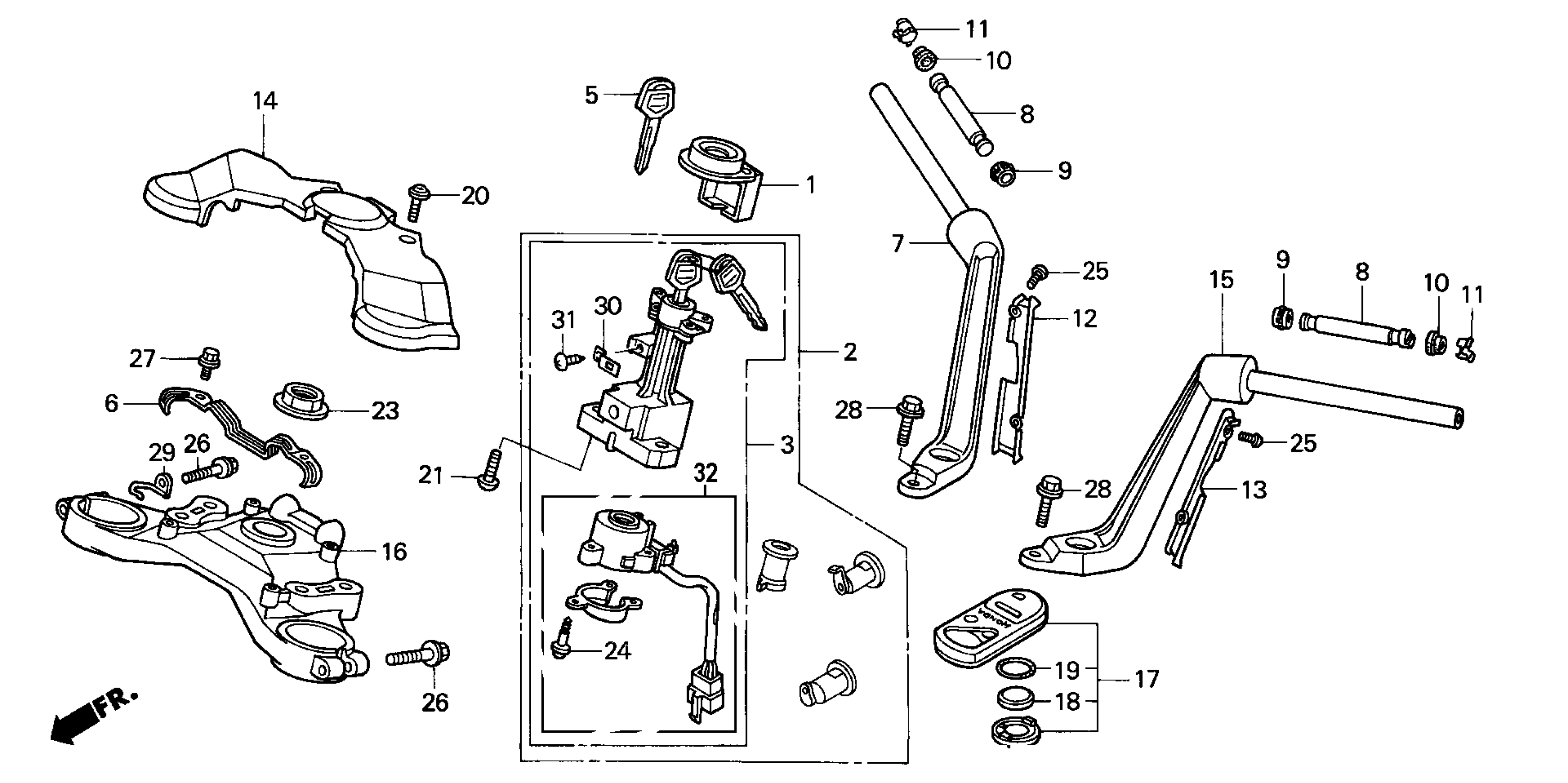

Honda GL1800A (02) GOLD WING, USA, VIN# 1HFSC470-2A100001 TO 1HFSC470-2A199999 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH TOP

30430-MCA-671

$79.81

2

LOCK SET

35010-MCA-670

Unavailable

3

SWITCH ASSY., COMBINATION & LOCK

35100-MCA-671

Unavailable

5

KEY, BLANK | (Optional).

35121-MCA-821

$29.66

6

GUIDE, FR. BRAKE HOSE

45163-MCA-000

$38.44

7

HANDLEBAR ASSY., R. This part replaces 53100-MCA-000.

53100-MCA-A20

$337.18

7

HANDLEBAR ASSY., R. This part replaces 53100-MCA-A00.

53100-MCA-A20

$337.18

8

WEIGHT B, HANDLEBAR

53105-KV3-000

$15.87

9

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.74

10

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.61

11

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.90

12

PLATE, R. HANDLE

53110-MCA-000

Unavailable

13

PLATE, L. HANDLE

53120-MCA-000

Unavailable

14

COVER, HANDLE CENTER

53130-MCA-000

$42.80

15

HANDLEBAR, L. (COO) This part replaces 53150-MCA-000.

53150-MCA-305

$337.18

15

HANDLEBAR, L. (COO) This part replaces 53150-MCA-A20.

53150-MCA-305

$337.18

16

BRIDGE, FORK TOP

53230-MCA-000

$241.31

17

TRANSMITTER ASSY., KEYLESS

72147-MCA-671

$97.57

18

BATTERY (CR2025) (MSDS) This part replaces 72148-S10-003.

72148-S84-A10

$3.53

18

BATTERY (CR2025) (MSDS)

72148-S84-A10

$3.53

19

O-RING

72149-S10-003

$3.69

20

SCREW, HINGE PATCH

90101-GE0-000

$2.80

21

BOLT, ONE-WAY (8X34)

90108-MCA-000

$3.46

23

NUT, STEERING STEM

90304-MJ4-670

$14.15

24

SCREW, TAPPING (3X16)

91059-MG9-681

$2.21

25

SCREW, PAN (5X10)

93500-05010-0G

$0.90

25

SCREW, PAN (5X10) This part replaces 93500-05010-1G.

93500-05010-0G

$0.90

26

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

27

BOLT, FLANGE (6X12)

96001-06012-07

$1.79

28

BOLT, FLANGE (10X35)

96400-10035-00

$2.07

29

GUIDE, THROTTLE CABLE

50152-MCA-000

$4.22

30

STAY, CONNECTOR

32127-MCA-003

$3.01

31

SCREW, TAPPING (3X8)

93901-32120

$0.82

32

BASE, CONTACT

35101-MCA-671

Unavailable
