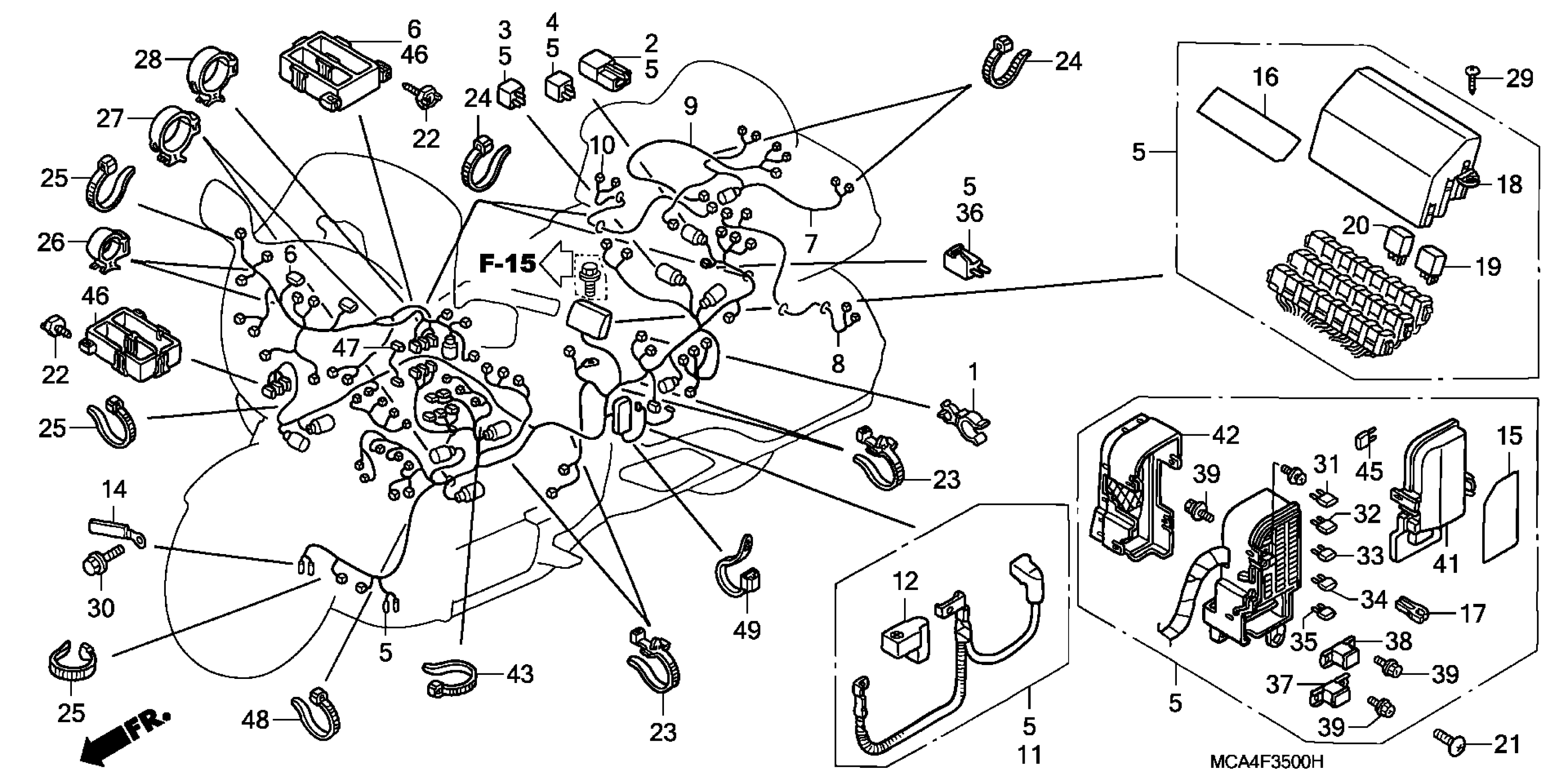

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 WIRE HARNESS Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

11338-KJ9-751

$2.98

2

DIODE ASSY.

31700-750-801

Unavailable

3

RECTIFIER, SILICON

31700-196-000

$26.42

4

RECTIFIER, SILICON

31700-MM8-610

$24.98

5

WIRE HARNESS

32100-MCA-671

Unavailable

6

SUB-HARNESS, FAIRING | Use up to Frame SN 1A002089 This part replaces 32105-MCA-670.

32105-MCA-671

Unavailable

6

SUB-HARNESS, FAIRING

32105-MCA-671

Unavailable

7

SUB-HARNESS, TAIL&TRUNK

32120-MCA-670

$51.51

8

SUB-HARNESS, L. SADDLEBAG

32130-MCA-670

$21.13

9

SUB-HARNESS, TRUNK UNIT

32140-MCA-670

$28.84

10

SUB-HARNESS, R. SADDLEBAG

32180-MCA-670

$22.23

11

CABLE, STARTER BATTERY

32401-MCA-000

Unavailable

12

COVER, BATTERY TERMINAL

32412-MCA-000

$2.31

14

CLIP, SUB-WIRE

32901-MA1-000

$4.95

15

LABEL, FUSE BOX

38215-MCA-671

$1.49

16

LABEL, RELAY BOX

38216-MCA-671

$1.95

17

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$1.49

18

COVER (UPPER)

38282-MCA-003

$6.77

19

RELAY, POWER (MICRO ISO 4P) This part replaces 39794-MCA-000.

38503-MCA-A61

$3.53

20

RELAY, POWER This part replaces 39795-MCA-000.

38502-MGP-D01

$18.29

21

SCREW, SPECIAL (5X12)

90114-KFK-000

$1.59

22

CLIP (TREE)

90138-MCA-003

$5.30

23

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

24

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

25

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

26

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

27

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

28

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

29

SCREW, TAPPING (5X12)

93903-25280

$1.49

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

31

FUSE, MINI (5A)

98200-40500

$1.49

32

FUSE, MINI (10A)

98200-41000

$1.49

33

FUSE, MINI (15A)

98200-41500

$1.49

34

FUSE, MINI (20A)

98200-42000

$1.49

35

FUSE, MINI (30A)

98200-43000

$1.67

36

CONNECTOR, DIODE (2P)

32146-SH3-003

$18.39

37

FUSE, BLOCK (70A)

38215-SX8-003

$12.21

38

FUSE, BLOCK (100A)

38218-SM4-003

$12.23

39

BOLT (5X13)

90114-SG0-003

$6.31

41

COVER (UPPER)

38252-MCA-003

$3.44

42

COVER (LOWER)

38256-MCA-003

Unavailable

43

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.73

45

FUSE, MINI (7.5A)

98200-40750

$1.49

46

HOLDER, CONNECTOR

91571-MCA-P00

$5.01

47

SUB-WIRE (22P) | Use up to Frame SN 1A002089

32112-MCA-P00

Unavailable

48

BAND, WIRE (95MM)

90650-KV6-003

$3.12
