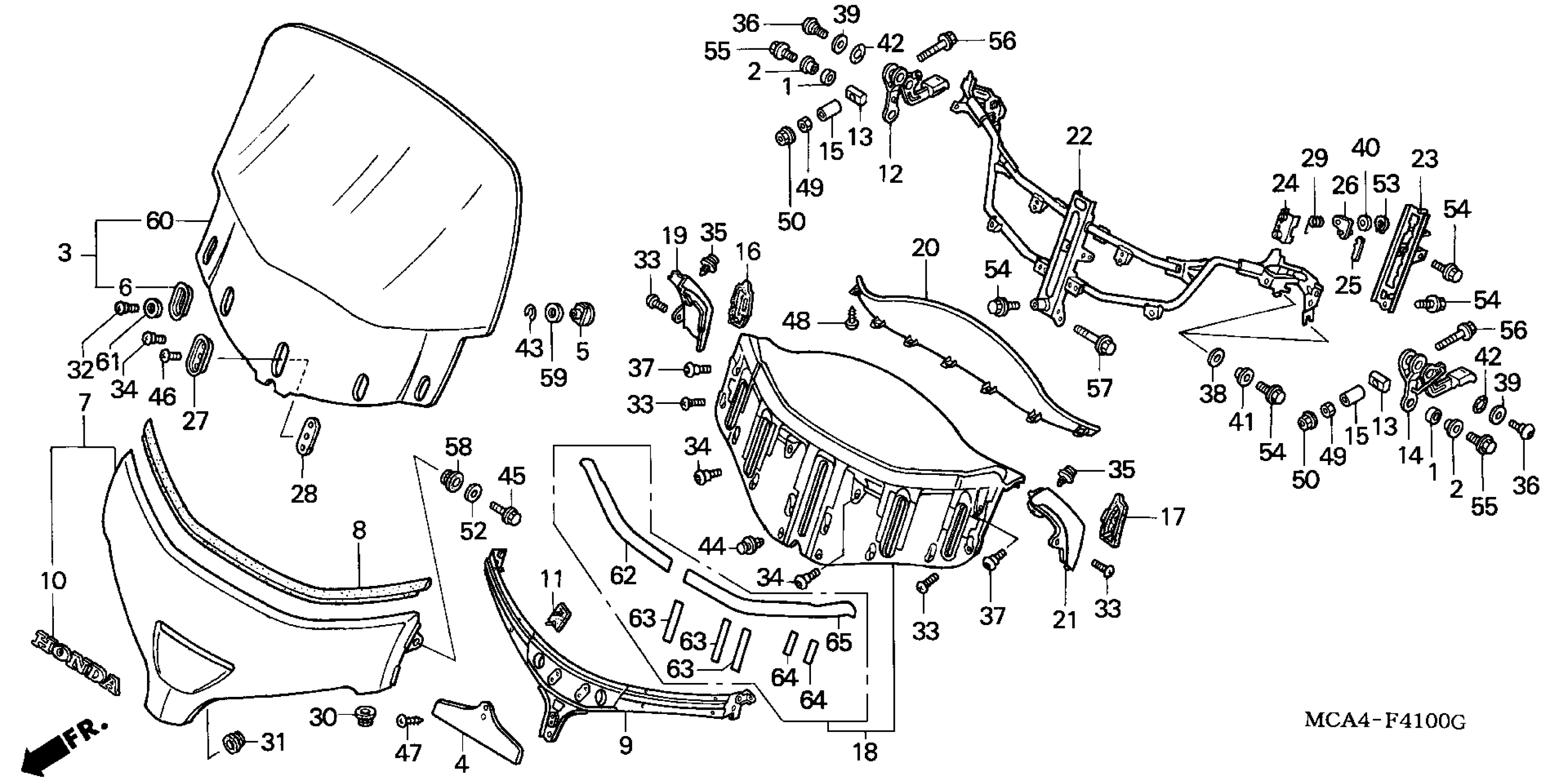

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 WINDSCREEN (1) Diagram

#

Description
Price

1

COLLAR, STEP RUBBER SETTING

50605-GZ4-670

$3.39

2

COLLAR, FR. FENDER

61105-KM7-910

$2.88

3

WINDSCREEN

64100-MCA-000

$607.75

4

COVER, GARNISH

64113-MCA-000

$7.42

5

NUT, WINDSCREEN SETTING

64114-MCA-000

$5.03

6

PLATE, WINDSCREEN SETTING

64116-MN5-000

$5.78

7

GARNISH SET, SCREEN *PB304P* (WL) (PEARL APOLLO BLUE)

64120-MCA-000ZB

Unavailable

7

GARNISH SET, SCREEN *R259P* (WL) (ILLUSION RED)

64120-MCA-000ZC

Unavailable

7

GARNISH SET, SCREEN *NH1Z* (WL) (BLACK-Z)

64120-MCA-A20ZA

Unavailable

7

GARNISH SET, SCREEN *NH1Z* (WL) (BLACK-Z) This part replaces 64120-MCA-000ZA.

64120-MCA-A20ZA

Unavailable

7

GARNISH SET, SCREEN *Y130P* (WL) (PEARL HOT ROD YELLOW)

64120-MCA-000ZD

Unavailable

8

SEAL, WINDSCREEN

64121-MCA-000

$32.45

9

HOLDER, WINDSCREEN

64122-MCA-000

$64.61

10

EMBLEM, FR. (TYPE1) (HONDA)

64125-MCA-A20ZA

$33.32

10

EMBLEM, FR. (TYPE1) (HONDA) This part replaces 64125-MCA-010.

64125-MCA-A20ZA

$33.32

11

RUBBER, SCREEN HOLDER This part replaces 64127-MCA-000.

64127-MCA-010

Unavailable

11

RUBBER, SCREEN HOLDER

64127-MCA-010

Unavailable

12

LINK, R. ADJUST

64133-MCA-000

$27.45

13

BRACKET, TENSIONER

64137-MCA-000

$6.23

14

LINK, L. ADJUSTING

64143-MCA-000

$27.45

15

COLLAR, ADJUSTING LEVER

64152-MCA-000

$4.65

16

RUBBER, R. ADJUSTING LEVER

64153-MCA-000

$9.16

17

RUBBER, L. ADJUSTING LEVER

64163-MCA-000

Unavailable

18

VISOR A, METER PANEL *NH105* (MAT BLACK)

64255-MCA-000ZA

Unavailable

19

VISOR C, R. METER PANEL *NH105* (MAT BLACK)

64256-MCA-000ZA

$96.88

20

VISOR B, METER PANEL

64265-MCA-000

$280.70

21

VISOR C, L. METER PANEL *NH105* (MAT BLACK)

64266-MCA-000ZA

$96.88

22

STAY B, COWL (UPPER)

64511-MCA-000

$234.45

23

HOLDER, ADJUSTER

64541-MCA-000

$267.41

24

BODY, ADJUSTER This part replaces 64542-MCA-000.

64542-MCA-010

$11.77

25

CAM B, ADJUSTER

64543-MCA-000

$4.81

26

CAM A, ADJUSTER

64544-MCA-000

$5.04

27

HOLDER A, SCREEN

64547-MCA-000

$34.28

28

HOLDER B, SCREEN

64548-MCA-000

$2.48

29

SPRING, HOLDER

64549-MCA-000

$2.19

31

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

32

SCREW, SPLASH GUARD

90103-HC4-770

$2.03

33

SCREW (5X12)

90104-964-000

$2.13

34

SCREW, PAN (6X11)

90106-KY2-701

$3.95

35

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

36

SCREW, PAN (6X11)

90118-MCA-000

$2.35

37

SCREW, PAN (6X14)

90138-MCA-000

$1.80

38

WASHER, BUMPER BOLT

90148-SA0-000

$3.37

39

WASHER, WAVE (10MM)

90435-422-000

$3.19

40

WASHER (10.1MM)

90443-ZG3-000

$2.17

41

WASHER (6X20)

90512-300-000

$2.87

42

WASHER, THRUST (8.6X13X0.6)

90589-VD6-901

$2.10

43

E-RING (8MM)

90601-473-003

$2.04

44

CLIP, SPLASH SHIELD

90657-SB0-003

$4.90

45

BOLT, RECESSED (6X8)

92301-06008-0A

$1.33

46

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.00

46

SCREW, PAN (6X8)

93500-06008-0A

$1.00

46

SCREW, PAN (6X8)

93500-06008-0H

$1.00

46

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.00

47

SCREW, TAPPING (4X6)

93903-24020

$0.75

48

SCREW, TAPPING (4X10)

93903-24280

$1.23

49

NUT, HEX. (6MM)

94002-06000-0S

$1.19

50

NUT, FLANGE (6MM)

94050-06000

$0.59

52

WASHER, PLAIN (6MM)

94103-06000

$0.90

53

CIRCLIP (OUTER) (10MM)

94510-10000

$1.00

54

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

55

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

56

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

57

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

58

RUBBER, FAIRING MOUNTING

64246-MJ4-670

$4.47

59

WASHER

90476-703-000

$0.88

62

TAPE A, R. SLIDE

64117-MCA-300

Unavailable

63

TAPE B, SLIDE

64118-MCA-300

$2.25

64

TAPE C, SLIDE

64119-MCA-300

$1.61

65

TAPE A, L. SLIDE

64128-MCA-300

Unavailable
