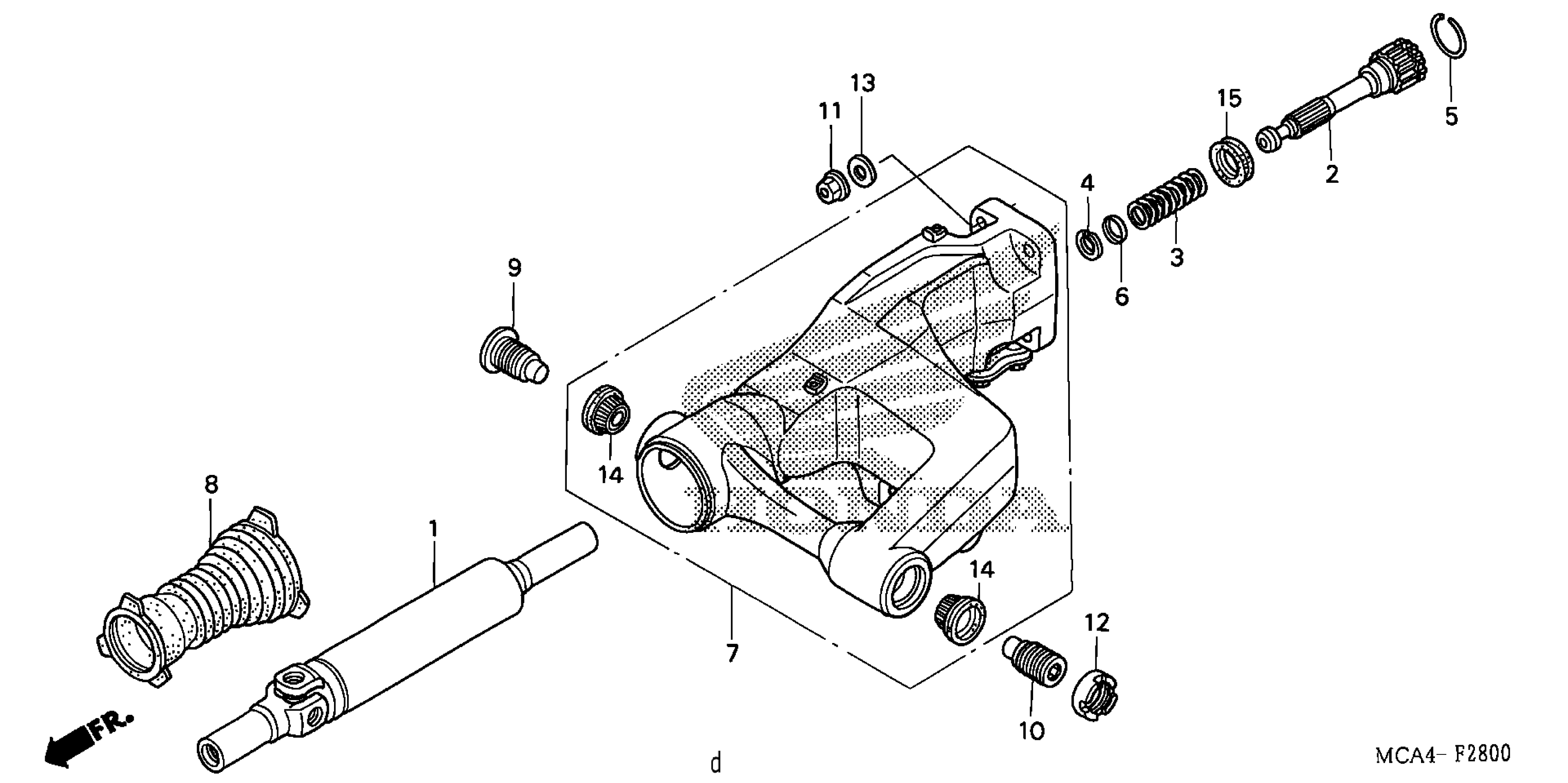

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 SWINGARM Diagram

SHAFT, PROPELLER This part replaces 40200-MCA-000.

40200-MCA-010

Unavailable

SHAFT, PROPELLER

40200-MCA-010

Unavailable

JOINT, PROPELLER SHAFT This part replaces 40202-MCA-000.

40202-MCA-010

$141.75

JOINT, PROPELLER SHAFT

40202-MCA-010

$141.75

SPRING, PROPELLER SHAFT

40216-MCA-000

$3.62

CIRCLIP

40219-MG9-000

$3.77

RING, STOPPER

40221-MB0-000

$4.20

STOPPER, PROPELLER SHAFT

40222-MG9-000

$4.57

SWINGARM ASSY., RR. This part replaces 52100-MCA-000.

52100-MCA-A20

$566.70

BOOT, JOINT

52104-MCA-000

$15.62

BOLT, R. SWINGARM PIVOT

90121-MCA-000

$24.19

BOLT, L. SWINGARM PIVOT

90122-MCA-000

$24.19

NUT, FLANGE (12MM)

90309-375-003

$7.73

NUT, SWINGARM PIVOT

90355-MCA-000

$11.45

WASHER, PLAIN (12MM)

90440-GT4-970

$2.38

BEARING, TAPER ROLLER (25X47X15)

91066-MCA-003

$27.20

OIL SEAL (27X43X7)

91261-ME9-005

$10.90
