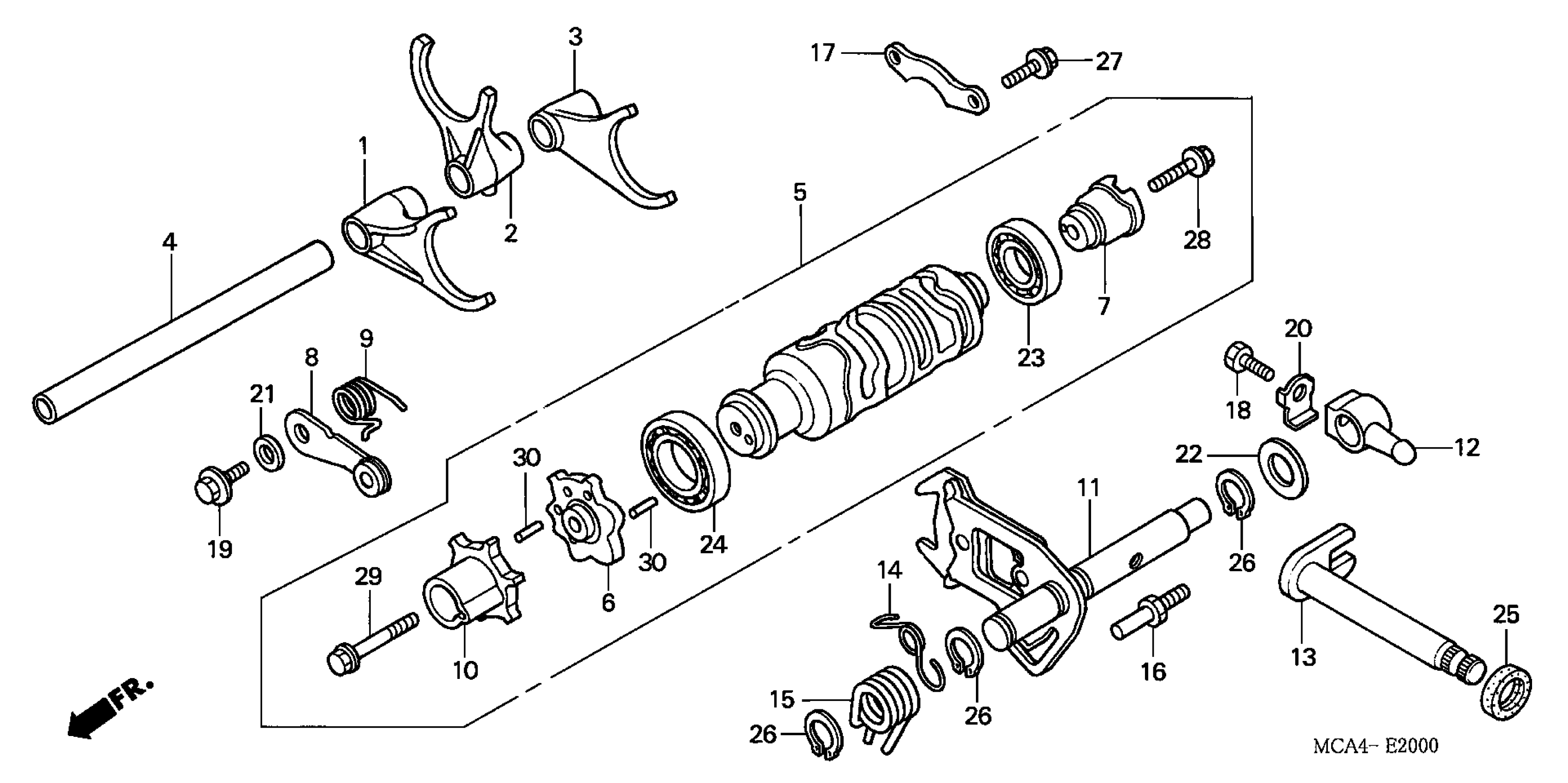

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT This part replaces 24211-MCA-000.

24211-MCA-A00

$69.62

1

FORK, FR. GEARSHIFT

24211-MCA-A00

$69.62

2

FORK, CENTER GEARSHIFT

24212-MCA-000

$67.35

3

SWINGARM, GEARSHIFT

24213-MCA-000

$71.43

4

SHAFT, SHIFT FORK

24251-MCA-000

$27.03

5

DRUM ASSY., GEARSHIFT

24300-MCA-S40

$213.28

5

DRUM ASSY., GEARSHIFT This part replaces 24300-MCA-000.

24300-MCA-S40

$213.28

6

CAM, SHIFT DRUM

24302-MCA-300

$42.92

7

CAM, GEARSHIFT DRUM LOCK

24305-MN5-000

Unavailable

8

STOPPER, GEARSHIFT DRUM

24430-MCA-000

$18.41

9

SPRING, GEARSHIFT DRUM STOPPER

24435-MCA-000

$3.98

10

JOINT, GEARSHIFT DRUM

24443-MCA-300

$41.61

11

ARM, GEARSHIFT

24610-MCA-000

$104.43

12

ARM B, GEARSHIFT

24615-MCA-000

$41.39

13

SPINDLE, GEARSHIFT This part replaces 24620-MCA-010.

24620-MCA-780

$54.97

13

SPINDLE, GEARSHIFT

24620-MCA-780

$54.97

14

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

15

SPRING, GEARSHIFT RETURN

24651-MCA-000

$9.64

16

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

17

PLATE, GEARSHIFT DRUM BEARING SETTING

24655-MV4-000

$6.79

18

BOLT, HEX. (8X17)

90009-MN5-000

$4.23

19

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

20

WASHER, LOCK (8MM)

90406-422-000

$2.63

21

WASHER, DRUM STOPPER

90417-360-000

$1.74

22

WASHER (14.2X28X2.3)

90487-MN5-000

$5.64

23

BEARING, RADIAL BALL (6904) (NTN)

91007-MN5-003

$14.93

24

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

25

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

26

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

27

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

28

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

29

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

30

ROLLER (4X14.8)

96220-40148

$1.49
