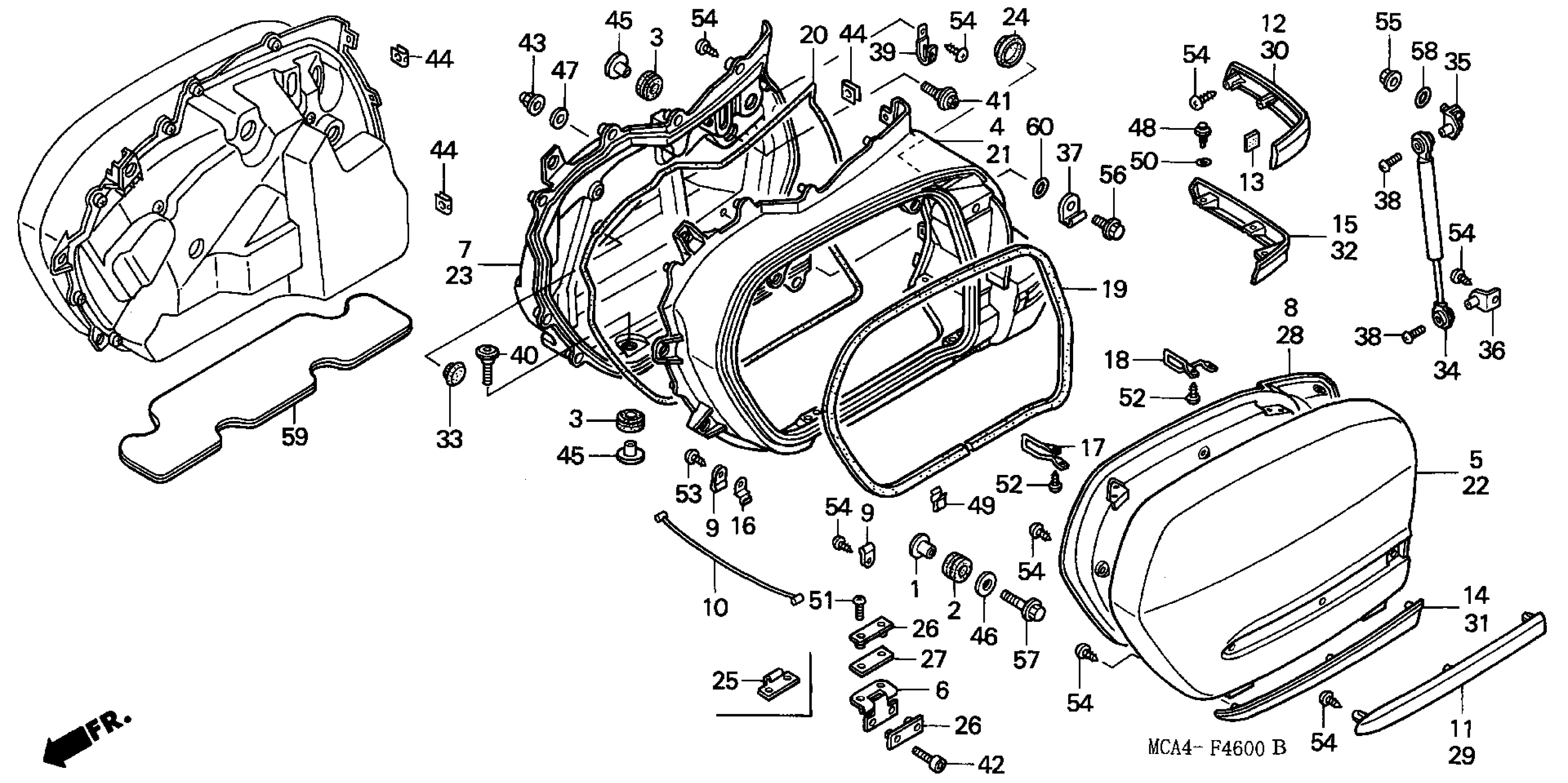

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 SADDLEBAG Diagram

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.91

RUBBER, HEADLIGHT GUARD

61320-KZ9-000

$4.80

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$16.09

BODY, R. SADDLEBAG *PB304P* (PEARL APOLLO BLUE)

81211-MCA-000ZB

Unavailable

BODY, R. SADDLEBAG *R259P* (ILLUSION RED)

81211-MCA-000ZC

Unavailable

BODY, R. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81211-MCA-000ZD

Unavailable

BODY, R. SADDLEBAG *NH1Z* (BLACK-Z) This part replaces 81211-MCA-000ZA.

81211-MCA-A60ZB

Unavailable

LID, R. SADDLEBAG *PB304P* (PEARL APOLLO BLUE)

81221-MCA-000ZB

Unavailable

LID, R. SADDLEBAG *R259P* (ILLUSION RED)

81221-MCA-000ZC

Unavailable

LID, R. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81221-MCA-000ZD

Unavailable

LID, R. SADDLEBAG *NH1Z* (BLACK-Z)

81221-MCA-000ZA

$611.70

HINGE, SADDLEBAG

81230-MCA-000

$35.56

PANEL, R. SADDLEBAG

81231-MCA-000

$91.28

INNER LID, R. SADDLEBAG

81241-MCA-000

$66.44

STAY B, LID STOPPER

81254-MN5-000

$5.23

CABLE, SADDLEBAG STOPPER

81259-MCA-000

$4.74

MOLDING, R. SADDLEBAG SIDE *PB304P* (PEARL APOLLO BLUE)

81261-MCA-000ZB

$91.77

MOLDING, R. SADDLEBAG SIDE *R259P* (ILLUSION RED)

81261-MCA-000ZC

Unavailable

MOLDING, R. SADDLEBAG SIDE *Y130P* (PEARL HOT ROD YELLOW)

81261-MCA-000ZD

$198.93

MOLDING, R. SADDLEBAG SIDE *NH1Z* (BLACK-Z)

81261-MCA-000ZA

$198.21

MOLDING, R. RR. SADDLEBAG *PB304P* (PEARL APOLLO BLUE)

81271-MCA-000ZB

Unavailable

MOLDING, R. RR. SADDLEBAG *R259P* (ILLUSION RED)

81271-MCA-000ZC

Unavailable

MOLDING, R. RR. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81271-MCA-000ZD

$200.31

MOLDING, R. RR. SADDLEBAG *NH1Z* (BLACK-Z)

81271-MCA-000ZA

$136.90

TAPE (25X25)

81272-MCA-300

$1.67

MOLDING, R. SADDLEBAG SIDE (LOWER) *PB304P* (PEARL APOLLO BLUE)

81281-MCA-000ZB

$44.54

MOLDING, R. SADDLEBAG SIDE (LOWER) *R259P* (ILLUSION RED)

81281-MCA-000ZC

Unavailable

MOLDING, R. SADDLEBAG SIDE (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81281-MCA-000ZD

$110.57

MOLDING, R. SADDLEBAG SIDE (LOWER) *NH1Z* (BLACK-Z)

81281-MCA-000ZA

$115.43

MOLDING, R. RR. SADDLEBAG (LOWER) *PB304P* (PEARL APOLLO BLUE)

81282-MCA-000ZB

Unavailable

MOLDING, R. RR. SADDLEBAG (LOWER) *R259P* (ILLUSION RED)

81282-MCA-000ZC

Unavailable

MOLDING, R. RR. SADDLEBAG (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81282-MCA-000ZD

$111.51

MOLDING, R. RR. SADDLEBAG (LOWER) *NH1Z* (BLACK-Z)

81282-MCA-000ZA

$111.59

GUIDE, STOPPER CABLE

81292-MCA-000

$3.64

ROD A, SADDLEBAG STRIKER

81321-MCA-003

Unavailable

ROD B, SADDLEBAG STRIKER

81322-MCA-003

Unavailable

RUBBER, SADDLEBAG SEAL

81350-MCA-000

$27.74

RUBBER, BACK PANEL SEAL

81351-MCA-000

$36.10

BODY, L. SADDLEBAG *PB304P* (PEARL APOLLO BLUE)

81411-MCA-000ZB

Unavailable

BODY, L. SADDLEBAG *R259P* (ILLUSION RED)

81411-MCA-000ZC

Unavailable

BODY, L. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81411-MCA-000ZD

$630.66

BODY, L. SADDLEBAG *NH1Z* (BLACK-Z)

81411-MCA-000ZA

Unavailable

LID, L. SADDLEBAG *PB304P* (PEARL APOLLO BLUE)

81421-MCA-000ZB

$500.84

LID, L. SADDLEBAG *R259P* (ILLUSION RED)

81421-MCA-000ZC

Unavailable

LID, L. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81421-MCA-000ZD

$591.02

LID, L. SADDLEBAG *NH1Z* (BLACK-Z)

81421-MCA-000ZA

$565.54

PANEL, L. SADDLEBAG

81431-MCA-000

$85.51

RUBBER, SADDLEBAG LIGHT

81433-MCA-000

$9.46

WASHER, HINGE SETTING

81438-MCA-000

$5.16

WASHER, HINGE SETTING

81438-MN5-000

$8.98

RUBBER, HINGE SEAL (UPPER)

81439-MN5-000

$5.30

INNER LID, L. SADDLEBAG

81441-MCA-000

$74.33

MOLDING, L. SADDLEBAG SIDE *PB304P* (PEARL APOLLO BLUE)

81461-MCA-000ZB

Unavailable

MOLDING, L. SADDLEBAG SIDE *R259P* (ILLUSION RED)

81461-MCA-000ZC

$178.20

MOLDING, L. SADDLEBAG SIDE *Y130P* (PEARL HOT ROD YELLOW)

81461-MCA-000ZD

$198.80

MOLDING, L. SADDLEBAG SIDE *NH1Z* (BLACK-Z)

81461-MCA-000ZA

$199.30

MOLDING, L. RR. SADDLEBAG *PB304P* (PEARL APOLLO BLUE)

81471-MCA-000ZB

Unavailable

MOLDING, L. RR. SADDLEBAG *R259P* (ILLUSION RED)

81471-MCA-000ZC

$189.66

MOLDING, L. RR. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81471-MCA-000ZD

$198.54

MOLDING, L. RR. SADDLEBAG *NH1Z* (BLACK-Z)

81471-MCA-000ZA

$198.54

MOLDING, L. SADDLEBAG SIDE (LOWER) *PB304P* (PEARL APOLLO BLUE)

81481-MCA-000ZB

$44.54

MOLDING, L. SADDLEBAG SIDE (LOWER) *R259P* (ILLUSION RED)

81481-MCA-000ZC

$96.54

MOLDING, L. SADDLEBAG SIDE (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81481-MCA-000ZD

$115.10

MOLDING, L. SADDLEBAG SIDE (LOWER) *NH1Z* (BLACK-Z)

81481-MCA-000ZA

$115.33

MOLDING, L. RR. SADDLEBAG (LOWER) *PB304P* (PEARL APOLLO BLUE)

81482-MCA-000ZB

$40.07

MOLDING, L. RR. SADDLEBAG (LOWER) *R259P* (ILLUSION RED)

81482-MCA-000ZC

Unavailable

MOLDING, L. RR. SADDLEBAG (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81482-MCA-000ZD

$112.28

MOLDING, L. RR. SADDLEBAG (LOWER) *NH1Z* (BLACK-Z)

81482-MCA-000ZA

$112.28

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

DAMPER, OPENER This part replaces 83590-MCA-003.

83590-MCA-013

$58.48

DAMPER, OPENER

83590-MCA-013

$58.48

PLATE, DAMPER MOUNTING (UPPER)

83591-MCA-000

$3.39

PLATE, DAMPER MOUNTING (LOWER)

83592-MCA-000

$3.23

STAY, TOOL SETTING (A)

89106-MN5-000

$5.92

SCREW (5X12)

90104-964-000

$2.34

CLIP, TUBE

90106-KJ6-740

$4.10

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.74

SCREW, SPECIAL (6MM)

90119-MCA-000

$4.00

BOLT, TORX (5X14)

90131-MY3-781

$2.89

NUT, CAP

90201-428-900

$2.23

NUT, SPRING (6MM)

90320-MM5-000

$2.84

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$5.05

WASHER, FENDER MOUNTING

90506-430-000

$2.92

WASHER (6X20)

90512-KF9-900

$3.06

CLIP, MOLDING (LOWER)

90654-MCA-000

$2.48

CLIP, SADDLEBAG

90655-MCA-000

$3.03

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

SCREW, PAN (5X14)

93500-05014-0G

$3.67

SCREW, TAPPING (5X16)

93901-25380

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, FLANGE (6X30)

96001-06030-00

$1.49
