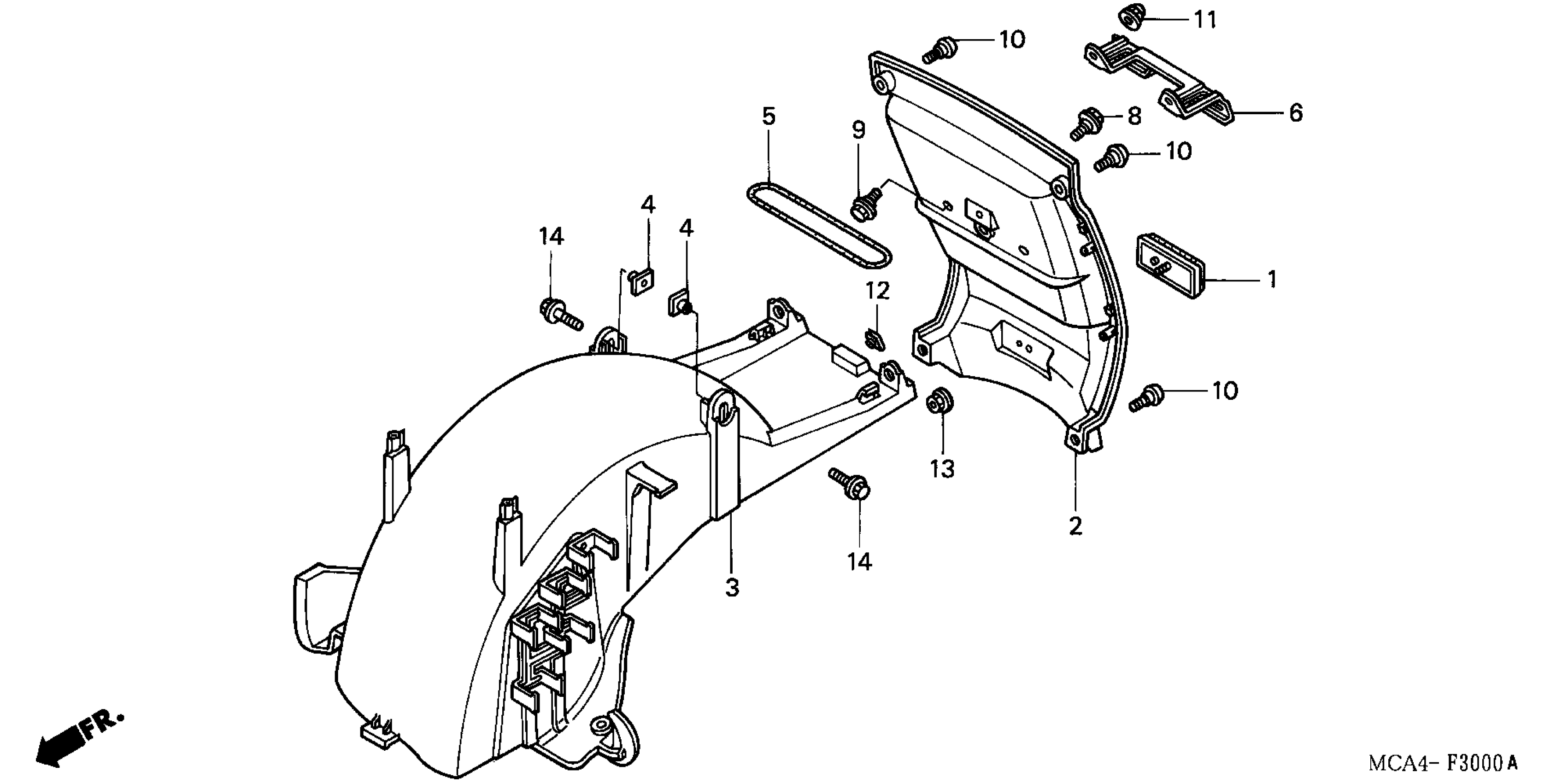

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 REAR FENDER Diagram

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

FENDER A, RR. *PB304P* (PEARL APOLLO BLUE)

80100-MCA-000ZB

Unavailable

FENDER A, RR. *R259P* (ILLUSION RED)

80100-MCA-000ZC

Unavailable

FENDER A, RR. *Y130P* (PEARL HOT ROD YELLOW)

80100-MCA-000ZD

$509.10

FENDER A, RR. *NH1Z* (BLACK-Z)

80100-MCA-000ZA

$509.13

FENDER B, RR. This part replaces 80101-MCA-000.

80101-MCA-010

Unavailable

FENDER B, RR.

80101-MCA-010

Unavailable

NUT, RR. FENDER

80104-KJ2-000

$4.08

BRACKET, NUMBER PLATE

84700-MCA-000

$13.51

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.87

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

SCREW, SPECIAL (6MM)

90137-MCA-000

$2.92

NUT, CAP

90201-428-900

$2.23

NUT, SPRING (6MM)

90320-MM5-000

$2.84

NUT, FLANGE (5MM)

94050-05080

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
